How Laser Cutting Makes Intricate Cards
Quick answer: A greeting card laser cutting machine cuts card stock and paper into intricate lace, pop-up and bespoke designs while scoring fold lines and engraving detail. It is die-less, so each design goes straight from artwork to finished card.
The laser cuts filigree detail that dies cannot, with clean edges confirmed by sample cut, and scores precise fold lines for pop-ups. Tuned power keeps paper edges crisp with minimal scorching.
New card designs cost nothing to set up — well suited to wedding, event and bespoke stationery.
Paper and card vary by fibre source, sizing and coating far more than their weight suggests — see FSC — which is why a setting proven on one supplier’s material is a starting point on the next one’s, not an answer.
Greeting Card Types This Laser Cutter Handles
Paper scorches rather than melts. On white card the edge tone is the defect, and intricate designs are mostly edge.
Lace & Filigree Greeting Cards
- Formats: Intricate lace-cut and filigree cards in white and pale card.
- Watch out: A lace-cut card is mostly edge, so edge tone that would be invisible on a simple shape covers the whole design.
- How we cut it: Lowest power that parts the fibre, with speed carrying the heat out; judged on your whitest stock.

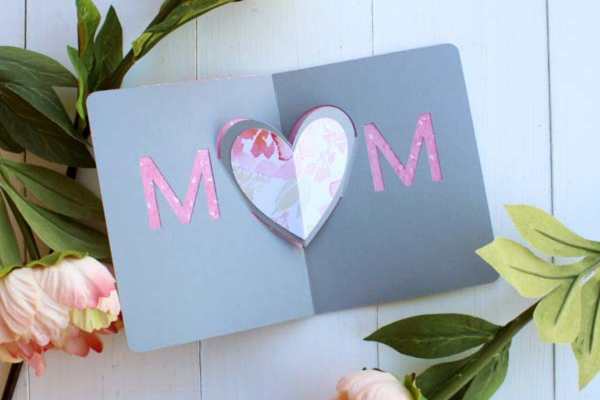

Pop-Up & Scored Cards
- Formats: Pop-up and folding cards with internal fold lines and tabs.
- Watch out: A beam perforates a fold rather than creasing it. It folds well on light card and less cleanly on heavy board.
- How we cut it: Partial-depth scoring or perforation per stock; ask for a folded sample, not a flat one.
Wedding & Invitation Cards
- Formats: Wedding invitations, place cards and stationery sets on premium white and ivory stock.
- Watch out: Premium stock is the least forgiving: bright white, heavy, and inspected closely by the person paying.
- How we cut it: Setting proven on your exact stock; names and dates engraved in the same pass. See the laser cut wedding invitations page.
Folded Greeting Cards
- Formats: Standard folded cards with cut-out windows or shaped edges.
- Watch out: Heavier card needs more energy to cut through, which is exactly the condition that browns the edge.
- How we cut it: Recipe per weight; fold scored separately from the cut.
Custom Shape & Die-Cut Cards
- Formats: Shaped cards that would otherwise need a steel rule die.
- Watch out: Every design would need its own die — viable for one long run, impossible for a seasonal range.
- How we cut it: Die-less cutting from a file; a new design is drawing time, not tooling cost.
Vellum & Layered Paper Cards
- Formats: Vellum, translucent paper and multi-layer cards.
- Watch out: Translucent paper shows every scorch mark when light passes through, and layers can bond at the kerf.
- How we cut it: Own setting for vellum; layers cut separately where bonding would matter.
Recommended KASU Laser Machines For Greeting Cards
KASU recommends CO2 laser cutting machines for greeting card producers who need clean paper cutting, fine hollow patterns, fold-line scoring and short-run custom designs. The right model depends on your card size, sheet layout, daily output and whether you need sample production or batch cutting.
K1080-F1 Laser Cutter And Engraver With Honeycomb Table
Best for small to medium greeting card production, sample rooms and custom stationery workshops. The 1000 × 800 mm working area is suitable for card stock, art paper, kraft paper, vellum and small-format invitation sheets.
- Recommended For: Lace cards, folded cards, custom greeting cards
- Why It Fits: Compact size, honeycomb support, lower initial investment
- Buyer Check: Paper thickness, sheet size, scoring requirement, exhaust setup
K1390-F1 Laser Cutter And Engraver With Honeycomb Table
Best for standard greeting card factories and invitation card producers needing a larger working area and stable batch cutting. The 1300 × 900 mm format is a practical choice for regular paper sheet layouts and repeat card designs.
- Recommended For: Wedding invitations, pop-up cards, die-cut card sheets
- Why It Fits: Larger bed size, stable cutting accuracy, good for batch production
- Buyer Check: Artwork detail, card layout size, smoke control, cutting speed
On White Card, The Edge Colour Is The Defect
Paper does not melt — it scorches. On kraft card a faint edge tone is invisible; on bright white wedding stock it is the first thing anyone sees. Intricate filigree makes it worse, because a lace-cut card is mostly edge. The whole job is finding the setting that parts the fibre before it browns it.
Distributors and OEM partners: KASU offers free OEM/ODM — custom models, your brand colours and logo, multilingual labelling, with no extra service charge. Details on About KASU.
Send Your Whitest Stock And Your Finest Pattern
- Send the brightest white and the most intricate design you sell. Kraft card on a simple shape proves nothing.
- Tell us the weight. Heavier card needs more energy, which is exactly the condition that browns the edge.
- Parameters recorded per stock and shipped with the machine.
- For distributors: stationery and wedding businesses sell on design, and their designs change every season. Die-cut stationery needs a die per design; laser-cut stationery needs a file. That is the entire pitch, and it lands with anyone who has paid for a die they used once.
A Beam Perforates A Fold. It Does Not Crease.
- Fold lines are made by perforating or partial-depth scoring, not by creasing. That folds well on most card weights and less cleanly on heavy board — ask for a folded sample, not a flat one.
- Vellum and translucent papers show every scorch mark when light passes through them; they get their own setting.
- Cutting and engraving run in one job, so names and dates go on in the same pass as the lace pattern.
The Factory That Builds Your Greeting Card Cutter
- Founded 2009 · Shanghai R&D · 8,000+ m² Suzhou plant, 15 minutes from the R&D centre.
- 100+ models across 9 series, 70+ owned patents and software copyrights, China High-Tech Enterprise.
- Machines are built in-house rather than traded, so a parameter question reaches the people who built the motion system and specified the extraction.
CE And FDA Certified — Send Your Whitest Stock
- CE and FDA certified; 5,000+ customers across 80+ countries.
- Installation guidance, operator training and spare parts supplied from the factory that built the machine.
- Class-1 enclosed configurations available where the destination market requires them.
Greeting Card Laser Cutting Machine — Buyer FAQ
Does It Leave A Scorched Edge On Paper?
Tuned correctly the edge is crisp and clean; settings are set per paper weight to avoid scorching.
Can It Score Fold Lines For Pop-ups?
Yes. The same job scores precise fold lines, so pop-up cards fold cleanly.
How Intricate Can The Cuts Be?
Very — the laser cuts fine lace and filigree detail that steel-rule dies cannot.
Can It Cut And Engrave Together?
Yes, cut the outline and engrave text or texture in the same job.
What Card Weights Can It Handle?
From light vellum to heavy card stock, tuned per material.
Is It Good For Bespoke Runs?
Yes — die-less cutting makes one-off and short-run cards economical.
Other Greeting Card Laser Cutting Machine Configurations in Our Lineup
Greeting card laser cutting often connects with paperboard cutting, invitation card production, packaging prototypes and seasonal paper craft products. If your project includes thicker card stock, folded packaging, decorative paper items or broader CO2 laser cutting needs, these related KASU product pages can help buyers compare suitable machine directions.
-
Box Creator Laser Cutter
Explore Box Creator Laser Cutter for paperboard packaging, cards, prototypes and short-run conversion, giving buyers a relevant complementary option when comparing solutions for Greeting Card Laser Cutting Machine. -
Cardboard Laser Cutter
Explore Cardboard Laser Cutter for paperboard packaging, cards, prototypes and short-run conversion, giving buyers a relevant complementary option when comparing solutions for Greeting Card Laser Cutting Machine. -
Laser Cut Wedding Invitations
Explore Laser Cut Wedding Invitations for paperboard packaging, cards, prototypes and short-run conversion, giving buyers a relevant complementary option when comparing solutions for Greeting Card Laser Cutting Machine.
Technical Support for Greeting Card Laser Cutting Machine
Greeting card laser cutting requires the right balance of laser power, cutting speed, air assist, exhaust and paper support. KASU technical support helps buyers test card stock, art paper, vellum, kraft paper and paperboard before machine selection, reducing burn marks, incomplete cuts, smoke issues and wrong configuration risks.
Contact KASU For Greeting Card Laser Cutting
Tell us your paper type, sheet size, card thickness, cutting pattern and production volume. KASU will recommend a suitable CO2 laser cutting machine for greeting cards, invitations, pop-up cards and custom paper products.
