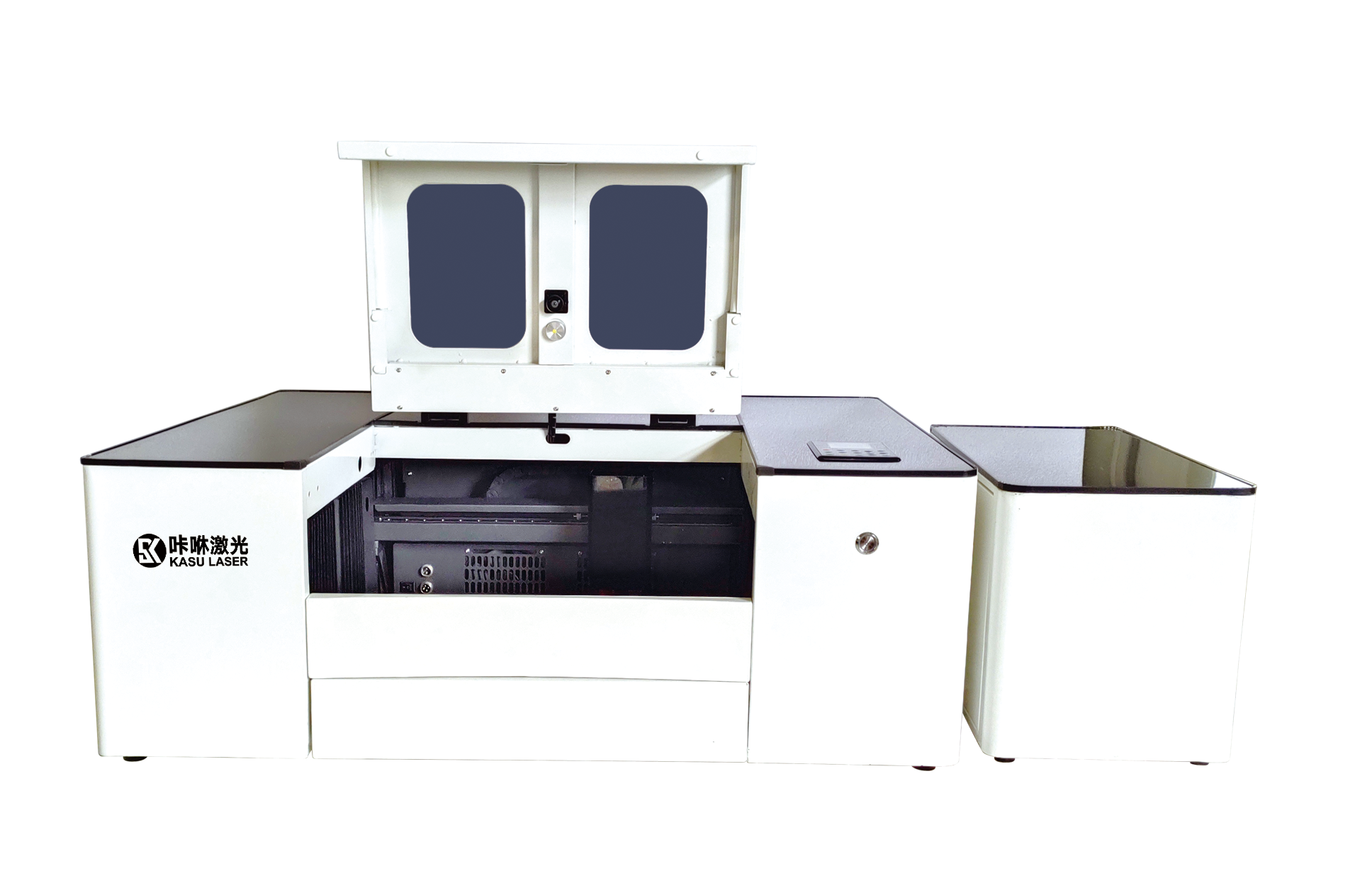

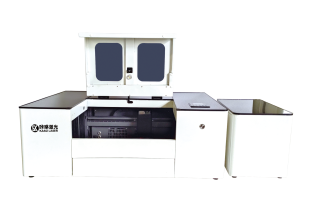

KA4030 Desktop Laser Engraving & Cutting Machine
■The latest generation intelligent laser cutter designed specifically for education and creation, featuring an18-megapixel high-definition wide-angle lens that can intelligently recognize materials, visualize operations, and automatically focus, significantly improving work efficiency.
■Equipped with automatic smoke exhaust function, the device can be monitored and controlled remotely via computer, tablet, or mobile phone.
■ The fuselage adopts an fully enclosed design, opens the cover and stops immediately, ensuring operational safety.
Model: KA4030
Zero Waste of Materials
Hot Sealed Cutting Edge
Any Type of Non Metal Materials
Stable and 24 Hours Running

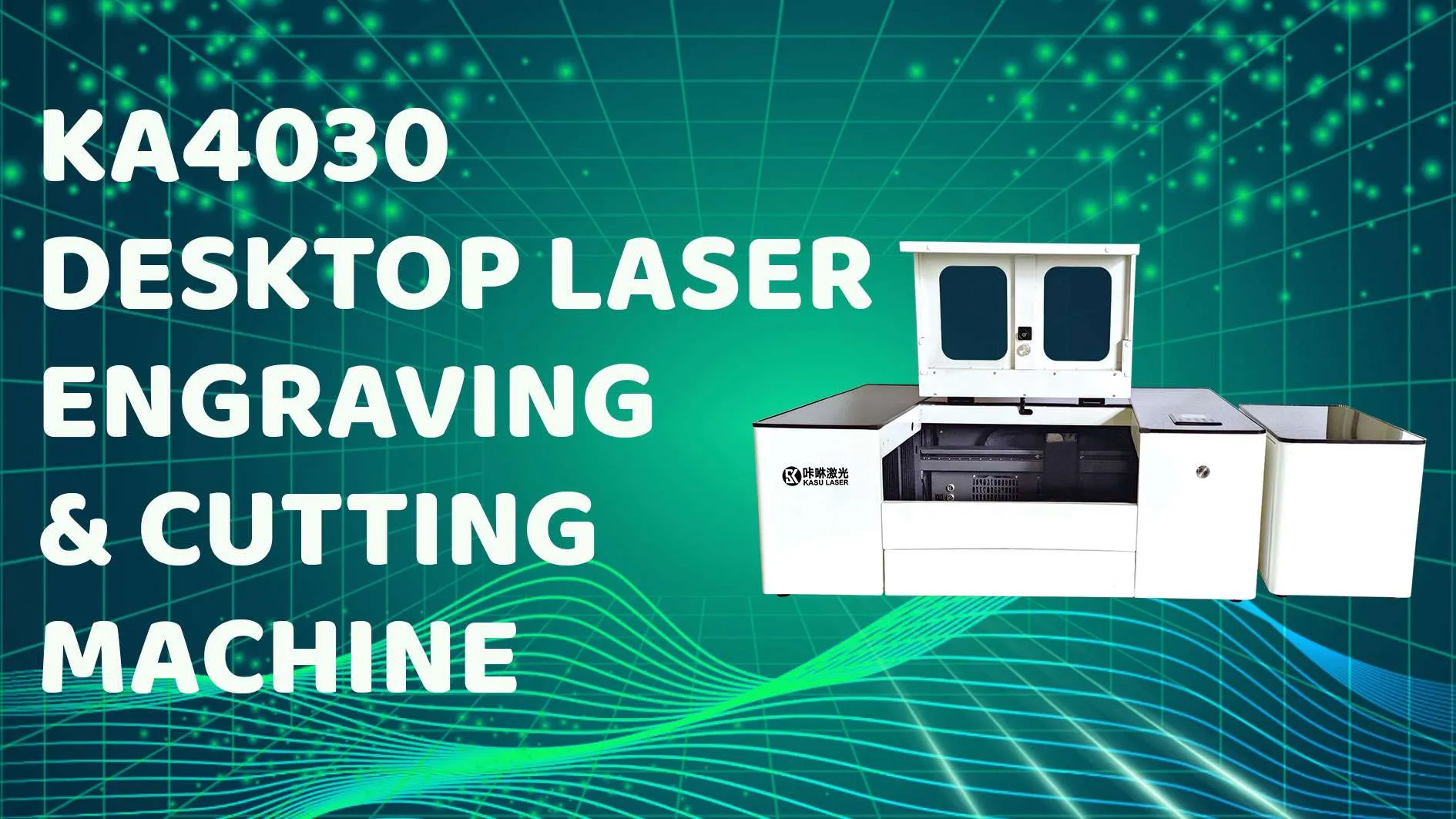

See the the KA4030 Desktop Laser Engraving & Cutting Machine in Action — Cut Production Video
Watch the KA4030 Desktop Laser Engraving & Cutting Machine run a coordinated cut sequence —vision registration and laser cut captured at production speed. The clip shows what to expect on day one before you commit to a machine of this class.
See the the KA4030 Desktop Laser Engraving & Cutting Machine in Action — Cut Production Video
■Advertising industry, School STEAM education, handicrafts & gifts, crystal ornaments, paper-cut art, relief carving, printing plates, leather goods, apparel, embroidery, home decoration, frame fabrication.
■Applicable Materials, Thin sheets, acrylic, MDF, wood, glass, paper, leather, fabric, plastic, rubber, marble, ceramic tiles and other non-metallic materials.
KA4030 Desktop Laser Engraving & Cutting Machine — Cutting , Build Quality & Manufacturing
Every cutting dimension of the KA4030 Desktop Laser Engraving & Cutting Machine in one place — complete technical data sheet, included accessories, available optional upgrades, and our factory manufacturing process. Key strengths at a glance: Zero Waste of Materials, Hot Sealed Cutting Edge, and Any Type of Non Metal Materials. Switch the tabs below to drill into each.
- Data Sheet
- Includes & Options
- Video Testimonials
| Operating voltage: (Optional) | 220V/ 50/60HZ 110V50/60HZ±10% |
| Laser type | CO2 glass tube / metalrf laser |
| Cutting thickness | 0-10mm（Depends on the material） |
| Cooling method | Air cooling/ built-in water circulation |
| Work platform | Checkered aluminum platform |
| work area | 400*300mm |
| System software | XP/WIN7//WIN10/OPPO/CAD/CoreIDraw/AI/LightBum |
| Minimum character | Chinese characters1*1/alphabet 05*05mm |
| laser power | 30W/40W/50W/60W |
| CCD Visual positioning recognition system | 18MP SCCD, 360° Panoramic Camera |
| Support format | AI/CDR/BMP/JPG/DST/PLT/DXF/DWG/TIFF/PSD |
| Smoke purification system | Built-in activated carbon filter Cotton |
| Carving speed | 1-5000mm/s |
| Water break protection | Strong magnetic induction switch |
| Rotary support | Diameter 0-100mm |
| Lifting support | height ±50mm |
| Resolution | ≤1000dpi |
What's Included with the KA4030 Desktop Laser Engraving & Cutting Machine
- Glass CO2 laser tube — 100W / 130W (configurable)
- Integrated inkjet printer module (print + cut in one pass)
- CCD vision camera for print-to-cut alignment
- HIWIN-spec linear rails for 1600 × 1000 mm bed
- American II–VI 25mm focusing lens
- Three molybdenum reflective mirrors
- S&A CW-5200 industrial chiller
- Hailey diaphragm air pump
- 1.5kW centrifugal smoke exhaust + ducting kit
- Industrial DC HV power supply
- Inkjet print head (1 head; ink + maintenance kit)
- Triangle-truss steel frame + print bracket
- E-stop + tower light
- Multi-language CE laser warning labels
- Factory tool kit + inkjet maintenance kit
Compatible Upgrades for the KA4030 Desktop Laser Engraving & Cutting Machine
- Upgrade to 4-head laser config (KP1610-F4)
- Extended ink supply
- Rotary axis
- Auto-focus Z-axis
- Extended-warranty pack
Standard Accessories Catalog Full reference: components included with every KASU machine, lifetime & replacement info. View catalog → All Optional Upgrades Rotary axes, CCD vision, auto-focus heads, multi-head configs, hot iron, 5-axis — compatibility & capex. Explore upgrades → KASU Shanghai HQ & Suzhou Factory 100+ models, 9 series, ISO 9001 / CE / FDA, 5,000+ customers in 80+ countries. See our factory →
Inside the KA4030 Desktop Laser Engraving & Cutting Machine — Cut-and-Engraving Highlights
The blocks below show the engineering decisions behind the KA4030 Desktop Laser Engraving & Cutting Machine — each illustrates one cutting, printing or alignment component that defines registration accuracy and combined throughput. Topic-by-topic below: Smart Laser Control Card and Software, Reinforced Hardware Module, and Sealed Glass Co2 Laser Tube.

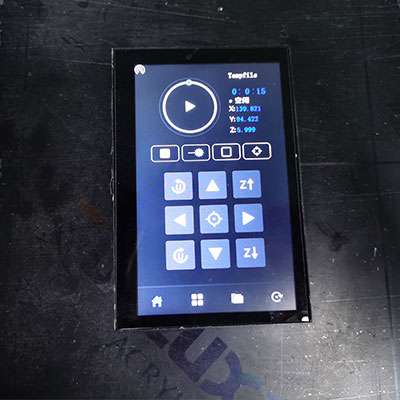

Smart Laser Control Card and Software
While using KASU KA4030 Desktop Laser Engraving & Cutting Machine, only CAD design files are necessary, and you can design at your wish. The smart laser control software can make the whole cutting and engraving process highly automatic.
Reinforced Hardware Module
The laser cutter lasts longer since there is no mechanical friction that could lead to wear and tear. KASU laser’s reinforced hardware module make our cutter achieve an impressive level of precision. This level of accuracy is as high as +/- 0.1mm, which is one of the best you’ll get from laser cutting.
Sealed Glass Co2 Laser Tube
A sealed glass Co2 laser tube is one of the consumables for a Co2 laser cutting machine. But the Made-In-China Co2 glass tube’s ROI is super high. One 100W laser tube can last for over 2 years based on 8 working hours per day. And you only need to pay about 300 US Dollars to replace one.
One Stop Laser Solution For Your Product
Request An Instant Quote For Your Industry
How KASU Support Your Business
Widely appreciated worldwide with 5000+ global cases. Get in touch today! KASU Laser creates 100% of the core components for our laser engravers, cutters, and marking machines. We are competent and specialized in this industry for more than 12 years. Our laser machines are well-known for their tough construction and long service life.
OEM/ODM services, 7/24 after-sale service available, short response time.
Frequently Asked Questions About the KP1610-F Integrated Print-and-Cut Machine
Can the KP1610-F print and laser-cut a finished panel in a single workflow without reloading material?
Yes — that’s the entire point. The KP1610-F mounts a digital inkjet head and a CO2 laser head on the same 1600 × 1000 mm gantry. A printed pattern is laid down first, then the laser follows the printed contour in the same job, with no material indexing or jig swap in between. End-to-end cycle on a 1 m apparel panel is typically under 4 minutes versus 12-15 minutes split across a separate printer + laser cutter, popular with on-demand garment and accessory shops in Guangzhou, Istanbul, and Los Angeles.
Which apparel and accessory businesses get the most ROI from the KP1610-F print-and-cut combo?
The strongest fit is any small-to-mid run business where each printed piece is contour-cut after printing: dye-sublimation tee panels, custom embroidered-patch bases, printed-leather handbag panels, printed-felt promotional items, packaging die-cut prototypes, and printed-fabric labels. KASU’s typical KP1610-F buyer in the US and EU runs an Etsy-scale to mid-volume print-on-demand operation. For pure printing or pure cutting at high volume, dedicated machines are more cost-effective.
What are the standard inkjet and laser specs on the KP1610-F, and what's the working area?
| Subsystem | Specification |
|---|---|
| Working area (shared) | 1600 mm × 1000 mm |
| Inkjet | Industrial dye-sub / pigment, 4-6 colour, 720-1440 dpi |
| Laser tube | Glass CO2, 80 / 100 / 130 W |
| Cooling | Industrial water chiller + print-head CSS |
| Working speed | < 1000 mm/s laser |
| Software | KASU print-and-cut RIP (no third-party licence) |
Is on-site installation training available outside China, and what does support look like for KP1610-F buyers worldwide?
KASU ships the KP1610-F from the Suzhou factory with English documentation, electrical schematics, and a 12-month warranty on both the laser tube and the print head. Remote setup via WhatsApp / Zoom is standard and typically resolves first-run calibration in 1-2 video sessions. On-site engineer dispatch to the US, EU, Vietnam, Mexico, or the Gulf is available on quote — usually 5-10 working days on the ground including print-head profiling. KASU has installed KP1610-F units in 15+ countries.
Why buy a combined print-and-cut KP1610-F instead of running a separate printer and laser cutter side-by-side?
Three reasons. (1) Registration accuracy: printing and cutting on the same gantry means the cut path uses the printer’s own coordinates — zero alignment error, no vision camera needed. (2) Floor space: one machine footprint instead of two, plus one operator instead of two. (3) Cycle time: no manual material transfer between print and cut stations. The trade-off is throughput ceiling — if you cut more than ~500 panels/day, separate dedicated machines win on raw volume.
