The bottleneck in modern packaging isn’t the printing—it’s the finishing. For B2B distributors and OEM manufacturers, the traditional die-cutting process is a “fixed-cost trap.” High tooling expenses and 2-week lead times for custom dies are killing margins in the “on-demand” economy. At KASU, we see the market shifting; clients no longer want 10,000 identical boxes; they want 500 personalized ones by Friday.
The Short Answer: Sublimation Over Combustion

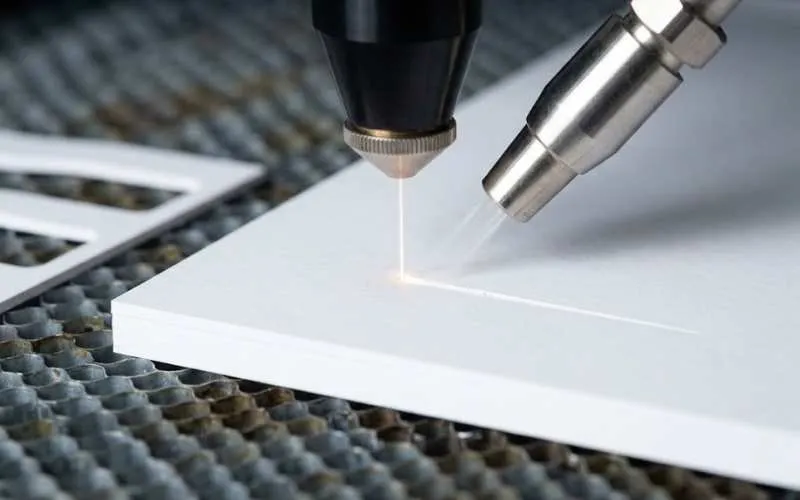

A CO2 laser cutter is the most efficient tool for processing paper, cardstock, and corrugated media. Unlike a physical blade that tears at the grain, a laser utilizes photonic energy to achieve sublimation—transitioning cellulose fibers directly from a solid to a gaseous state.
To capture the Featured Snippet, professionals must understand that success is defined by the Heat Affected Zone (HAZ). Achieving a “white edge” on 300gsm cardstock requires a precise pulse frequency that prevents the accumulation of thermal energy. For the system integrator, this means the difference between a high-end luxury product and a burnt scrap.
Industrial Grade Processing Matrix
| Material Type | GSM Range | Laser Source | Typical Speed | Air Assist Requirement | Application |
|---|---|---|---|---|---|
| Fine Art Paper | 80 – 120 | CO2 (DC/RF) | 400+ mm/s | Ultra-Low (Clean Air) | Wedding Invitations |
| Luxury Cardstock | 250 – 400 | CO2 RF | 200 – 300 mm/s | Medium (Constant Flow) | Premium Packaging |
| Kraft / Greyboard | 300 – 600 | CO2 DC | 100 – 150 mm/s | High (Smoke Removal) | Industrial Templates |
| Corrugated (E-Flute) | N/A | CO2 DC | 80 – 120 mm/s | High (Fire Safety) | POS Displays |
Solving the “Charring” Dilemma: A KASU Engineer’s Manifesto
In my 10 years of optimizing KASU Laser Systems, I’ve learned that “default settings” are the enemy of profit. Most distributors lose clients because they can’t solve the yellow-edge problem.
1. The Focal Length Secret
Most machines ship with a 2.5” lens. For paper, throw it away. Use a 1.5” or 2.0” Gallium Arsenide (GaAs) lens. The shorter focal length creates a tighter spot size ($d \approx 0.1mm$), increasing the energy density. This allows you to cut faster with less power, which is the only way to keep white paper white.
2. Pulse Width Modulation (PWM) Mastery
If you are an OEM integrator, pay attention to the Laser Pulse Frequency. High-frequency pulses (above 20kHz) provide a continuous-like cut that minimizes the jagged carbonization often seen in lower-tier glass tube lasers.
3. The Vacuum Bed Advantage
Paper is rarely perfectly flat. A 1mm deviation in material height shifts the laser out of focus, causing a wider, hotter beam that burns instead of cuts. We integrate high-flow vacuum zones into our honeycomb beds to ensure every millimeter of the substrate is at the exact focal plane.
The Distributor Profit Logic: Gantry vs. Galvo
When advising your clients, you must distinguish between “Versatility” and “Throughput.”
- CO2 Gantry (Flatbed): The “Swiss Army Knife.” Best for large-format displays or low-volume prototyping. It’s the entry point for most KASU distributors.
- Galvo Scanning Systems: The “Money Maker.” For high-volume greeting cards or label finishing, Galvo systems move the beam via mirrors, not a heavy gantry. This results in speeds up to 10,000mm/s. If your client processes >1,000 sheets a day, a Galvo head is the only way to ensure a competitive ROI.
Case Study: Short-Run Packaging OEM
A European packaging provider switched from mechanical die-cutting to a KASU Galvo system for their “Eco-Box” line.
- Old Lead Time: 8 Days (Waiting for die fabrication).
- New Lead Time: 45 Minutes (File prep to finished cut).
- Result: They captured a 30% premium on “Same-Day Dispatch” orders, fully amortizing the machine cost in 7 months.
Comparison of TCO (Total Cost of Ownership) – 3 Year Projection
| Cost Factor | Mechanical Die-Cutter | KASU CO2 Gantry | KASU Galvo System |
|---|---|---|---|
| Initial Investment | Moderate | Low – Moderate | High |
| Tooling Costs | $150 – $500 per design | $0 | $0 |
| Maintenance | Blade sharpening/Replacement | Tube & Filter Replacement | Minimal (No moving parts) |
| Electricity | High (Hydraulic/Servo) | Low (< 2kW) | Low (< 1.5kW) |
| Lead Time | Days/Weeks | Minutes | Seconds |
Safety and Compliance: The Non-Negotiables
Paper dust is not just messy; it’s an explosive hazard in high concentrations. B2B buyers in the EU and NA markets demand compliance with ISO 12100 (Safety of machinery).
- Fume Extraction: Ensure your system is paired with a multi-stage HEPA and Activated Carbon filter. Paper smoke contains VOCs that can degrade optical components over time.
- Fire Suppression: We recommend all industrial paper setups include an automated CO2 or Nitrogen fire suppression kit. Paper is highly flammable, and a “flare-up” can ruin a $5,000 lens in seconds.
- Shipping & Customs: As a global manufacturer, KASU provides full HS Code 845611 documentation to streamline customs and reduce import duties for our international partners.
The “New Standard” in Paper Finishing
The question isn’t whether a laser can cut paper—it’s whether your business can afford to stay stuck in the analog era. By eliminating the “die-cut tax,” you offer your clients the ability to iterate faster and reduce waste by up to 18% through Nesting Optimization. The seamless transition from CAD to finished product is the ultimate competitive edge for the modern distributor.
Accelerate Your Distribution Growth
KASU is more than a vendor; we are an engineering partner for OEMs and system integrators. We offer white-label manufacturing, custom bed sizes, and localized technical training to help you dominate your local market. From navigating complex shipping logistics to providing the latest parameter libraries, we ensure your success.
