Operating an industrial laser cutter should be a high-margin asset, but for many OEMs and distributors, it becomes a bottleneck of wasted material and frequent downtime. If you are struggling with inconsistent edge quality or skyrocketing consumable costs, you aren’t just losing time—you’re eroding your competitive edge in a crowded global market. I have spent years on factory floors from Shenzhen to Stuttgart, troubleshooting these exact friction points to turn complex laser systems into predictable profit centers.
The Core Protocol for Professional Laser Cutter Operation
Operating an industrial laser cutter involves a synchronized sequence of system calibration, material parameter matching, and proactive maintenance to ensure 24/7 production stability. Unlike hobbyist units, industrial fiber lasers require precise management of the beam delivery system and assist gas chemistry to achieve “first-time-right” results.
To maximize throughput, an operator must master the CNC control interface, calibrate the focal point relative to the material surface, and select the appropriate assist gas pressure. This process transforms a raw CAD file into a high-precision component with minimal heat-affected zones (HAZ).
The Industrial Startup Checklist
Before the first beam pierces the sheet, my team at KASU follows a non-negotiable “Cold Start” protocol. Skipping one step here is how you end up with a $20,000 resonator repair bill.
- Chiller Conductivity Check: We ensure the cooling water is deionized and at the correct temperature (usually 20°C to 25°C). High conductivity leads to internal electrolysis in the laser source.
- Gas Pressure Verification: Ensure your Oxygen (O2) or Nitrogen (N2) tanks have sufficient volume for the shift. A mid-cut pressure drop ruins the nozzle and the workpiece.
- Optical Path Inspection: Use a flashlight to check the protective window. A single speck of dust can undergo thermal runaway, shattering the lens.

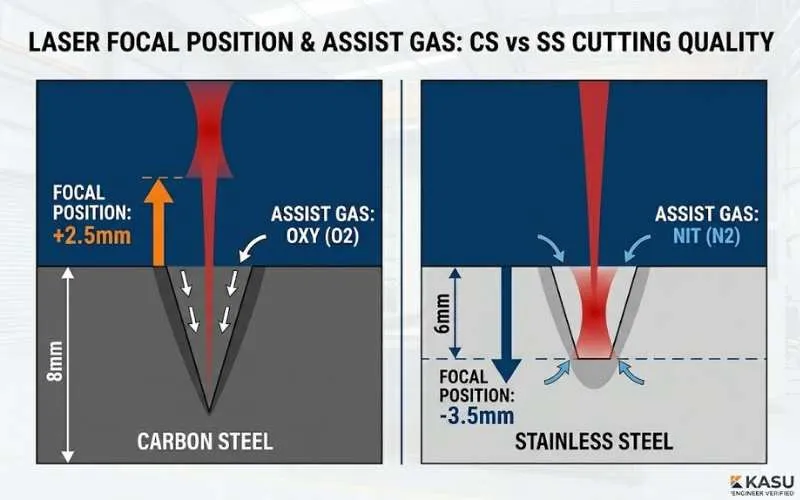

Technical Parameter Matrix: Engineering the Perfect Cut
In my experience, distributors often field calls from clients complaining about “burrs” or “rough edges.” Usually, the culprit isn’t the machine; it’s a fundamental misunderstanding of the relationship between power, speed, and focal position.
| Material Type | Thickness | Assist Gas | Cutting Speed (m/min) | Power (kW) | Focal Position |
|---|---|---|---|---|---|
| Carbon Steel | 10mm | Oxygen (O2) | 1.8 – 2.4 | 3.0 | +2.5mm |
| Stainless Steel | 6mm | Nitrogen (N2) | 4.0 – 6.0 | 6.0 | -3.5mm |
| Aluminum (6061) | 4mm | Nitrogen (N2) | 12.0 – 15.0 | 6.0 | -2.0mm |
| Brass | 2mm | Nitrogen (N2) | 15.0 – 20.0 | 4.0 | -1.0mm |
The “Piercing” Strategy: When cutting thick plates, I never start at full speed. We use a three-stage piercing method (Stage 1: High frequency, low duty; Stage 2: Medium power; Stage 3: Burst) to prevent “back-reflection” that destroys fiber cables.
Assist Gas Economics: The ,000/Year Savings Logic

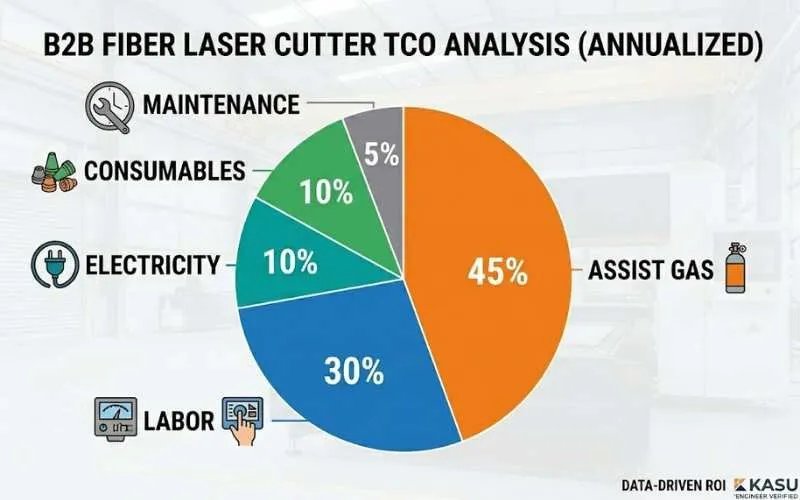

For a system integrator or a high-volume OEM, assist gas represents roughly 35% to 50% of the total operating cost. If you are blindly using Nitrogen for everything, you are burning your margins.

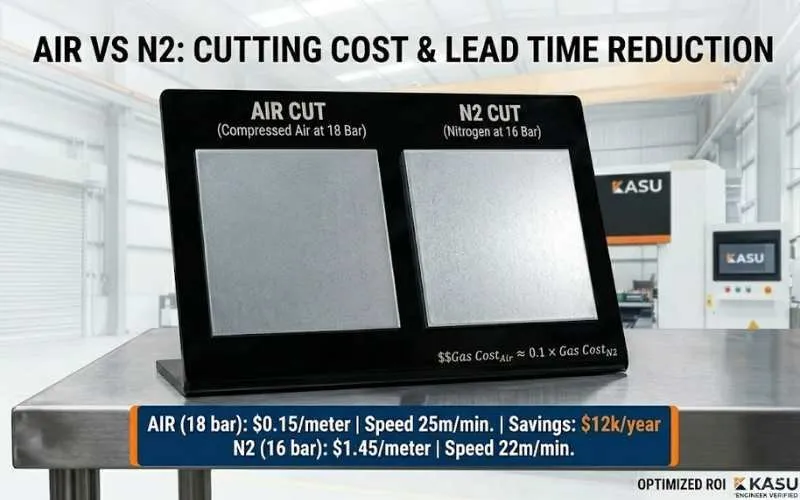

The Shop Air Revolution:
By integrating a high-pressure air compressor system (16-20 bar) with 4-stage filtration, OEMs can cut thin-gauge galvanized steel at 90% the speed of Nitrogen but at 10% of the cost. In a recent KASU case study, an OEM in Poland saved approximately $12,400 USD annually by switching 2mm stainless steel production from bottled N2 to filtered shop air.
Gas Selection Impact on Lead Times:
- Nitrogen (N2): High speed, zero oxidation. Best for parts requiring immediate powder coating (Incoterm: EXW/FOB efficiency).
- Oxygen (O2): Slow but essential for 12mm+ carbon steel. Note: Adds 15 minutes of “acid pickling” time per sheet to remove oxide scales.
International Trade & Supply Chain Integration
As a global manufacturer, KASU understands that “using” a laser cutter also means managing its supply chain.
- Lead Time Optimization: By standardizing operation procedures, our partners reduce “re-cut” rates from 8% to under 1%. In international trade, this ensures you meet Delivery Duty Paid (DDP) deadlines without air-freight penalties.
- Consumable Stocking (The “Critical Spare” Kit): I advise all distributors to keep a 3-month supply of Precitec-compatible nozzles and ceramic rings in local bonded warehouses. A $50 part should never cause a 14-day customs delay.
- Customs Compliance: Ensure all machine logs are exported via Industry 4.0 protocols. This data is vital for proving energy efficiency for “Green Manufacturing” tax credits in the EU and North America.

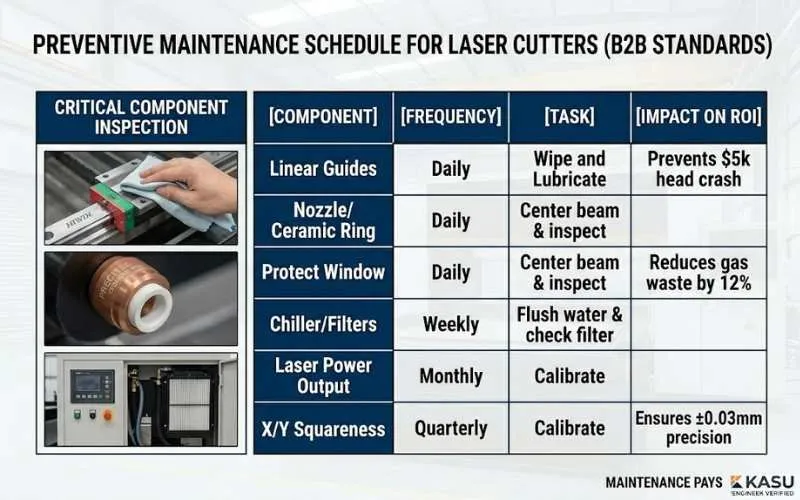

Maintenance: The TCO Reduction Framework
I once visited a client whose 6kW fiber laser was underperforming. The reason? They hadn’t cleaned the linear guide rails in three months. Dust buildup caused micro-vibrations, leading to wavy cuts.
| Interval | Task | Impact on ROI |
|---|---|---|
| Daily | Nozzle centering & Clean Protect Window | Prevents $5,000 cutting head failure |
| Weekly | Lubricate rails & X/Y axis cleaning | Maintains ±0.03mm precision |
| Monthly | Chiller filter replacement & Gas leak test | Reduces electricity bill by 12% |
| Quarterly | Laser source power stability check | Ensures consistent CE/UL certification compliance |
Safety and Global Compliance Standards
Operating an industrial laser isn’t just about the cut; it’s about the operator. In the US, you must comply with OSHA 1910.132. In Europe, the IEC 60825-1 standard is the law. At KASU, we don’t just sell hardware; we provide the safety interlocking systems and fume extraction required to pass a tier-1 factory audit.
Future-Proofing Your Industrial Production
Operating a laser cutter effectively is a balance of technical skill and economic strategy. By standardizing your startup procedures, optimizing your gas usage, and adhering to a strict maintenance schedule, you transform a complex machine into a reliable production workhorse. For distributors, providing this level of technical depth to your customers isn’t just “support”—it’s a value-add that secures long-term loyalty and reduces the burden of emergency service calls.
