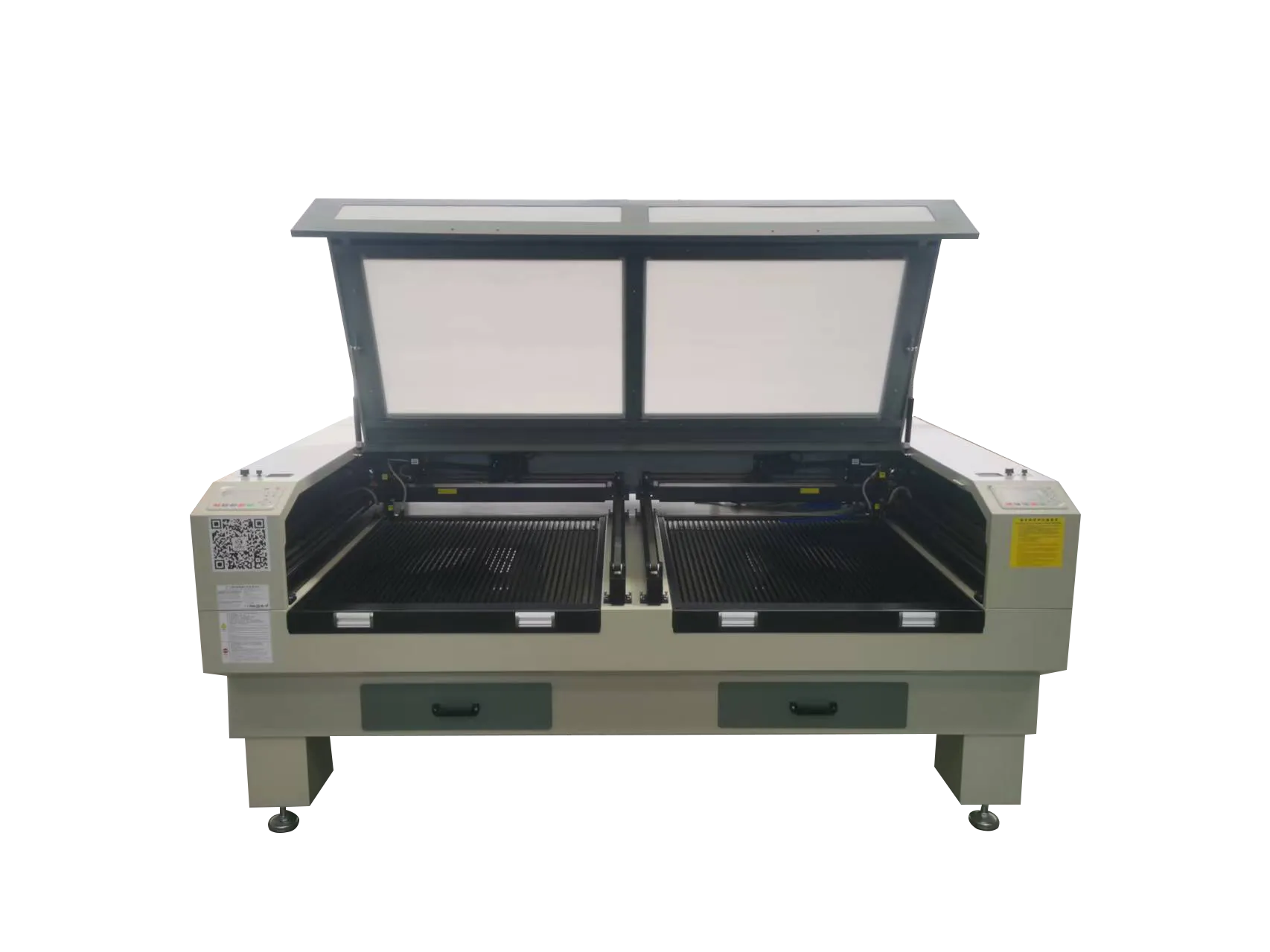

KX1810-F-T KASU Dual Station Laser Engraving & Cutting Machine
KASU Double Table Laser Engraving & Cutting Machine, featuring an innovative design with two independent work surfaces, enables simultaneous processing of different material types.
The two tables operate independently and collaboratively, effectively eliminating material changeover wait times and significantly boosting engraving and cutting efficiency. This meets the demands for high-efficiency operations across diverse production scenarios.
- Industrial-Grade Laser Head

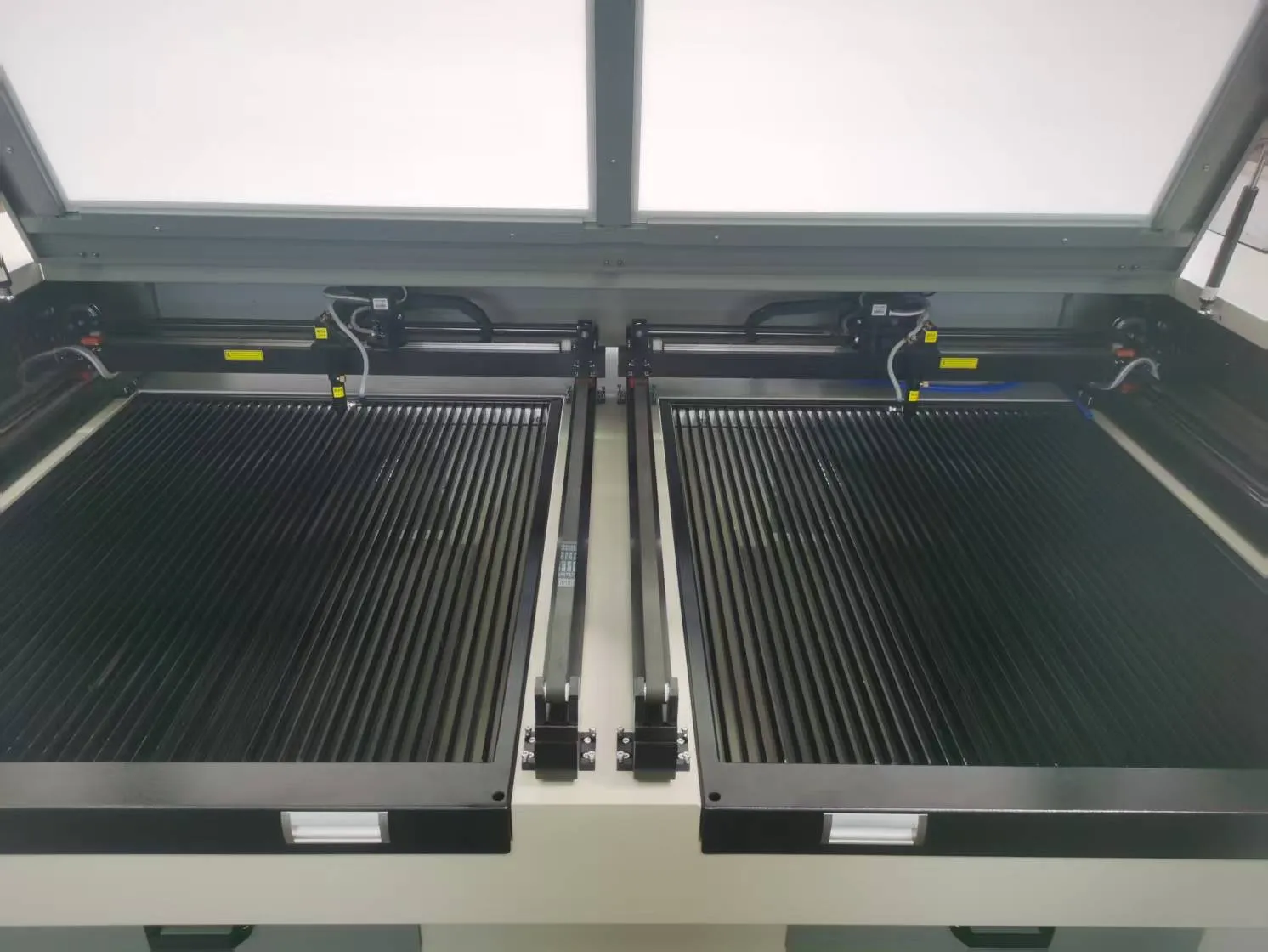

- Independent Dual-Station Work Platforms
- High-Strength Knife/Honeycomb Fixed Platform
- CCD Industrial Camera
- 🚚 7–15 days lead time
- 🛡 12-month warranty
High Cutting Precision
Hot Sealed Smooth Cutting Edge
Any Type of Textiles
Vision & Non-Vision Working Modes
See the KX1810-F-T KASU Dual Station Laser Engraving & Cutting Machine in Action — Cut & Engrave Demo Video
Watch the KX1810-F-T KASU Dual Station Laser Engraving & Cutting Machine cut and engrave real samples on our factory floor — focus alignment, head movement, and finish quality captured at production speed. The clip shows what to expect on day one before you commit to a machine of this class.
See the KX1810-F-T KASU Dual Station Laser Engraving & Cutting Machine in Action — Cut & Engrave Demo Video
The KX1810-F-T CCD Laser Cutter is the Co2 laser cutter combined with the smart CCD vision software and camera. It can detect features of the small-sized printed or embroidered fabrics, leather, and other flexible materials and then position cut with high accuracy.
When under the non-vision cutting mode, the two heads of KASU KX1810-F-T laser cutter can simultaneously cut the same shapes of patterns in plain fabrics.
KX1810-F-T KASU Dual Station Laser Engraving & Cutting Machine — Full Engraving & Cutting Specs, Build Quality & Manufacturing
Every cutting and engraving dimension of the KX1810-F-T KASU Dual Station Laser Engraving & Cutting Machine in one place — complete technical data sheet, included accessories, available optional upgrades, and our factory manufacturing process. Key strengths at a glance: High Cutting Precision, Hot Sealed Smooth Cutting Edge, and Any Type of Textiles. Switch the tabs below to drill into each.
- Data Sheet
- Includes & Options
- Video Testimonials
| Machine Model: KX1810-F-T | Cutting Speed: ≤500MM/S |
| Laser Head: Dual Heads | Positioning Accuracy: ±0.1MM |
| Laser Type: Glass CO2 Laser Tube | Cutting Deepness: ≤10MM/S |
| Laser Power: 60-130W | Working Platform: Knife/Honeycomb |
| Working Area: 785*920MM*2 | Total Power: 2300W |
| Dimensions: 1610*2420*1130MM | Power Supply Requirements: AC220V±5%/50-60HZ |
| Net Weight: 550KG | Cooling System: Water Chiller |
| Motion System: Belt Drive + Hybrid Servo Motor | Format Supported: AI/BMP/PLT/DXF, etc. |
What's Included with the KX1810-F-T KASU Dual Station Laser Engraving & Cutting Machine

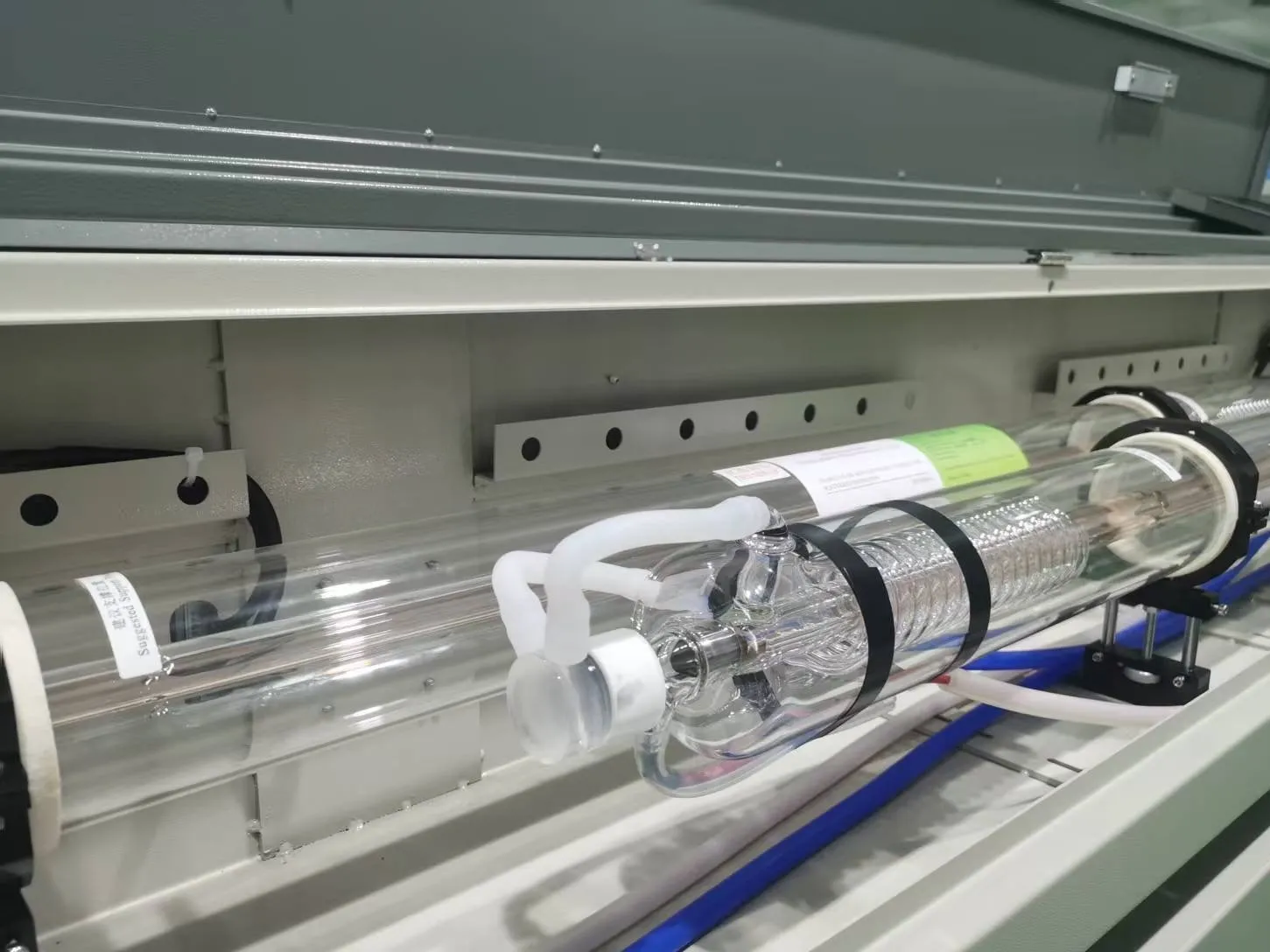

- Glass CO2 laser tube — 100W / 130W (configurable)
- Dual-station configuration (2 work stations on one frame for parallel loading)
- HIWIN-spec linear rails for 1800 × 1000 mm × 2 bed configuration
- ZnSe focusing lens
- Three molybdenum reflective mirrors
- Industrial water chiller
- Industrial oil-free air pump
- 1.5kW centrifugal smoke exhaust + ducting kit
- Industrial DC HV power supply
- Triangle-truss welded steel frame (dual-station)
- KASU dual-station control software
- E-stop + tower light
- Multi-language CE laser warning labels
- Factory tool kit
Compatible Upgrades for the KX1810-F-T KASU Dual Station Laser Engraving & Cutting Machine
- CCD vision camera (side or top-mount)
- Auto-focus Z-axis head
- Rotary axis
- Extended-warranty pack
Standard Accessories Catalog Full reference: components included with every KASU machine, lifetime & replacement info. View catalog → All Optional Upgrades Rotary axes, CCD vision, auto-focus heads, multi-head configs, hot iron, 5-axis — compatibility & capex. Explore upgrades → KASU Shanghai HQ & Suzhou Factory 100+ models, 9 series, ISO 9001 / CE / FDA, 5,000+ customers in 80+ countries. See our factory →
Inside the KX1810-F-T KASU Dual Station Laser Engraving & Cutting Machine — Engraving & Cutting Engineering Highlights
The blocks below show the engineering decisions behind the KX1810-F-T KASU Dual Station Laser Engraving & Cutting Machine — each illustrates one specific optical, motion, or material-handling component that defines how it cuts and engraves. Topic-by-topic below: CCD Industrial Camera System, Smart CCD Vision Software, and Honeycomb Table With Strong Support.
CCD Industrial Camera System
With the assistance of the industrial 130-mega-pixels CCD camera, KASU KX1810-F-T CCD can have a very high cutting precision when cutting small-sized printed or embroidered patterns (better within 15cm) at an affordable price.
Smart CCD Vision Software
KX1810-F-T can work under both vision and non-vision modes. When under the vision modes, all you need to do is create the template according to the features of the graphics, set the cutting area, and then the vision software will start taking photos and generate a cutting path with high precision.
Honeycomb Table With Strong Support
KX1810-F-T model is equipped with the honeycomb working table, which can give the soft textiles strong support and good cutting edge. Together with the well-designed smoke exhausting system, the laser beam will leave no black or yellow marks along the fabric edge.
One Stop Laser Solution For Your Product
Request An Instant Quote For Your Industry
How KASU Support Your Business
We are a competent manufacturer in China who deliver the highest quality machines. Comprehensive support, OEM / ODM services, and 24-hour stable-running intelligent laser cutters.
Please get in touch now! KASU Laser has unique R&D, production, and manufacturing technology of laser cutting machines.
Frequently Asked Questions About the KX1810-F-T Dual Station Laser Engraving & Cutting Machine
What does "dual station" mean on the KX1810-F-T, and how does it accelerate small-batch production?
Dual station means the cutting bed is split into two work areas. While the laser cuts on station A, the operator loads material on station B; once station A finishes, the gantry swings to station B and cuts while station A is unloaded and reloaded. This effectively eliminates the loading-time idle period of single-station machines — operator productivity nearly doubles on short-cycle work like small acrylic plaques, leather patches, or stamp-blank batches.
Which small-batch industries benefit most from the KX1810-F-T dual-station workflow?
Top fit profiles: trophy and award shops (each piece is small and unique — loading is the bottleneck); custom-stamp makers (15-second cuts on each blank, 30-second loading dominates); engraved-leather accessory shops; on-demand acrylic engraving services (point-of-sale signage, custom name plates); and small jewelry shops doing acrylic component sampling. Each shares the pattern: short cuts + frequent reloads, where dual-station design recovers loading time.
How big is each station on the KX1810-F-T, and can it cut a single large piece across both stations?
Each station is approximately 900 × 1000 mm (total bed roughly 1800 × 1000 mm with the splitter). The two stations work independently for small-batch parallel production. For a single large piece exceeding 900 mm in length, the KASU control software supports “combined-bed mode” — the splitter retracts and the full 1800 × 1000 mm bed is available for one large workpiece. Mode switching takes ~2 minutes.
Which CCD vision features are bundled with the KX1810-F-T for printed-pattern jobs?
The KX1810-F-T includes the standard KASU CCD vision system — top-mounted camera, printed-mark registration, automatic skew compensation. The dual-station design lets you run two different printed-shape jobs in parallel (each station has independent camera registration) — useful for shops processing diverse short-run printed work where each station’s job is unrelated. Vision software is the same code as on the larger KD-series.
What's the total system footprint and what's required for installation?
| Item | Spec |
|---|---|
| Machine footprint | ~2.8 × 2.0 m |
| Two-side operator clearance | 1.0 m each side |
| Service clearance | 0.6 m rear |
| Electrical | 220 V single-phase (380 V 3-phase optional) |
| Compressed air | 0.6 MPa |
| Water chiller | 5200 industrial (included) |
| Fume extraction | External, sold separately |
| Recommended cell | 5.0 × 4.0 m |
