Industrial Laser Cutting Wood & MDF

Navigating the Burn: Solving the Wood Fabrication Bottleneck

You are likely caught in a frustrating cycle: increasing power to boost production speed, only to face rejected batches due to heavy carbonization or inconsistent kerf widths. For distributors, selling a machine that fails to handle the resin density of local MDF suppliers leads to endless service tickets and eroded margins. For OEM factory managers, the invisible enemy isn’t just the burnt edge; it’s the volatile organic compounds (VOCs) and fine dust that destroy precision optics and worker health. At KASU, we don’t just sell hardware; we engineer thermal management systems that turn wood and MDF from “difficult materials” into high-profit, automated workflows.

The Chemistry of the Cut: Why Wood Fails Under Poor Optics

In my years overseeing production lines, I’ve seen many operators treat MDF as “just soft wood.” This is a costly mistake. MDF is a composite high-density material saturated with urea-formaldehyde resins. When a laser beam interacts with these resins, it doesn’t just vaporize; it triggers a complex chemical reaction known as Pyrolysis, which can leave a sticky, conductive residue on your machine’s mechanical components if not managed by high-velocity airflow.

Natural wood, conversely, is inhomogeneous. The difference in density between “earlywood” and “latewood” in a single plank can cause the laser to under-cut or over-burn depending on the growth ring orientation. To master this, industrial setups must prioritize Energy Density (J/cm² ) and focal consistency over raw tube wattage.

Technical Parameter Matrix: Industrial Wood & MDF Settings

The following data is derived from KASU’s internal testing on our Large Format CO2 Laser Cutters. Use these as your baseline for 130W systems to ensure clean, paint-ready edges without secondary sanding.

The Distributor’s Profit Logic: TCO over Sticker Price

If you are a distributor, your client isn’t just buying a laser; they are buying an “uptime guarantee.” In the B2B world, the Total Cost of Ownership (TCO) is dominated by maintenance labor and yield rates, not the initial purchase price.

• Optics Longevity: Traditional machines lose focus because MDF smoke is “heavy” and acidic. KASU’s Advanced Laser Head Design uses a positive pressure air curtain. This prevents smoke from ever touching the ZnSe lens, extending its lifespan by 3x compared to generic alternatives.
• Cleaning Cycles: We’ve calculated that an OEM factory saves approximately 120 labor hours per year simply by utilizing KASU’s enclosed rail system, which prevents wood dust from mixing with grease and seizing the linear bearings.
• Yield Recovery: By using a 4-inch focal lens for thicker MDF (over 10mm), the “hourglass” shape of the cut is minimized, reducing material waste by 12% in high-density nested production layouts.

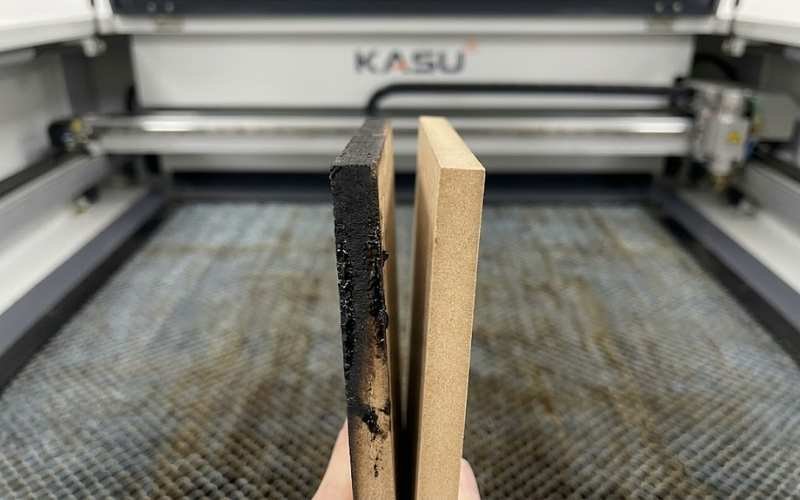

Solving the “Char” Problem with Fluid Dynamics

The secret to a “bright” wood edge isn’t just power—it’s the gas velocity within the kerf. When the laser vaporizes wood, the gas remains in the cutting channel. If it stays there for even a millisecond too long, it ignites, causing the black carbonization that ruins furniture-grade finishes.

I always tell my OEM clients: Air assist is a scalpel, not a fan. By increasing the nozzle pressure and reducing the nozzle orifice diameter, you increase the gas velocity. This literally “blows out” the micro-flames before they can carbonize the wood fibers. This level of control is critical for meeting ISO 9001 Quality Standards in international furniture manufacturing.

Environmental Compliance: The Hidden B2B Barrier

Selling laser-cut MDF products in the EU or North America requires strict adherence to formaldehyde emission standards. The cutting process releases concentrated VOCs that must be managed to protect both the environment and the workforce.

1. Exhaust Volume: Your blower must move at least 800-1200 CFM for a standard 1300x900mm bed to ensure zero smoke leakage into the factory floor.
2. Filtration: For urban OEM setups, an activated carbon filtration system is essential to neutralize the chemical toxicity of the MDF resins.
3. Safety Infrastructure: Ensure your system complies with CE machinery directives to avoid liability in industrial accidents involving combustible wood dust.

Engineer’s Field Note: I once witnessed a fire in a facility cutting 3mm plywood. The culprit? Small off-cuts falling through the honeycomb and igniting the accumulated dust underneath. Always insist on a drawer-style crumb tray for your clients—it’s a safety feature that prevents catastrophic downtime.

Maximizing ROI for System Integrators

For system integrators, the KASU advantage lies in our API and Controller Stability. When integrating a laser into an automated wood processing line, you need a controller that doesn’t “stutter” during complex vector paths. Our S-curve acceleration ensures that the laser doesn’t dwell in corners, which is the #1 cause of over-burnt edges in intricate wood inlays and marquetry.

A New Standard in Wood Fabrication

The era of “trial and error” in wood laser cutting is over. By focusing on gas dynamics, lens protection, and chemical compliance, B2B players can achieve production speeds that were previously impossible. Quality isn’t an accident; it’s the result of precise thermal control.
