How Lasers Cut TPU Cleanly
Quick answer: A TPU cutting machine cuts thermoplastic polyurethane film and coated fabric with a controlled melt, leaving a narrow kerf — for waterproof membranes, screen protectors and bonded apparel. Edge quality varies by film thickness and coating, confirmed with a sample cut.
Thin TPU stretches and burrs under blades; the laser cuts a clean kerf with no contact and no tool wear, and a camera or roll register keeps parts on position. Bonded-seam apparel benefits from the fused edge.
Die-less cutting takes new membrane and apparel shapes straight from CAD to parts.
TPU is not one material. Grade families differ in hardness, melt behaviour and additive package (see Covestro’s Desmopan TPU range for the spread in circulation), which is why a setting proven on one supplier’s film is a starting point on the next one’s, not an answer.
TPU Materials This Laser Cutter Handles
TPU behaves differently as film, sheet, coating and laminate — and the differences decide the power and speed window, not the wattage on the spec sheet. Each card below states the format, the failure mode that material is prone to, and how KASU controls it. Parameters are established on your own material before quotation.
TPU Film
- Formats: Transparent and pigmented TPU film, typically 0.05–0.5 mm, on rolls or sheets. Includes printed heat-transfer film and protective film.
- Watch out: Thin film lifts under air assist and exhaust draw, and TPU melts rather than burns — too much power or too slow a pass leaves a raised bead at the kerf that sticks the part back into the sheet. More wattage makes this worse, not better.
- How we cut it: Faster pass at lower power, with hold-down matched to the film. On printed film the camera cuts to the printed edge rather than a pre-drawn file.
- Printed film: heat-transfer film and 3D transfer labels are a workflow of their own — see the heat transfer label cutting machine page.
TPU Sheet
- Formats: Solid TPU sheet in a range of thicknesses and Shore hardness grades, for gaskets, seals and wear parts.
- Watch out: Thicker sheet needs the heat to leave through the kerf rather than into the part. Push the pass too slow and the cut face goes glossy and tacky; the part still releases, but the edge picks up dust and shows it.
- How we cut it: Power and assist tuned per thickness on the honeycomb table, verified by sample cut on your grade rather than a generic setting.

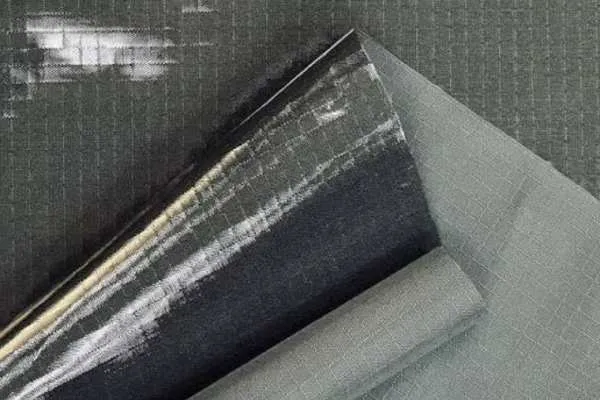

TPU-Coated Fabric
- Formats: Polyester, nylon and woven base fabric laminated with a TPU coating — outdoor gear, inflatables, medical textiles.
- Watch out: Two materials, two behaviours. The coating melts and the base fabric fuses, so the setting that seals the weave can bead the coating. Coating side up and coating side down are not the same job.
- How we cut it: Parameters set for the laminate as a whole, with orientation fixed during sample testing and recorded so it ships with the machine.

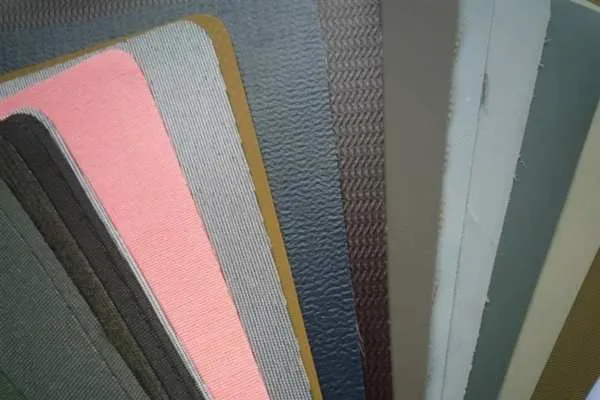

Laminated TPU Materials
- Formats: Multi-layer TPU bonded to foam, fabric or composite — footwear, automotive interior, protective padding.
- Watch out: The layers have different melt points. A setting that cuts through the bottom layer can over-melt the top one, and delamination at the kerf is the failure customers actually reject.
- How we cut it: Layer stack reviewed before quotation; a sample cut on your exact build is the only reliable check, because two laminates with the same spec sheet can behave differently.

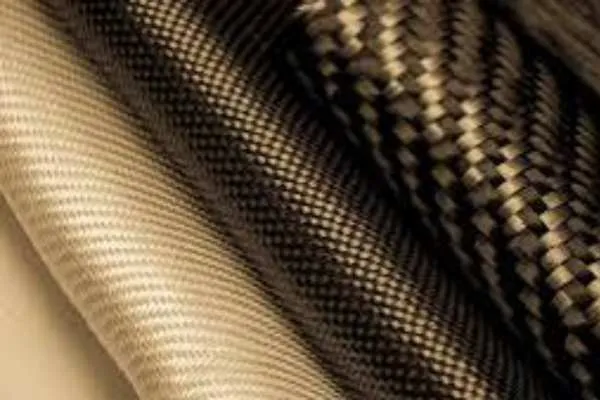

TPU Composite Materials
- Formats: TPU combined with technical textiles, mesh or specialty substrates, for sports equipment, medical devices and industrial parts.
- Watch out: Mesh and open structures let the beam through between yarns, so the cut can look clean on top and ragged underneath. Open-area percentage matters more here than thickness.
- How we cut it: Backing and support chosen for the open structure; we ask for a swatch rather than a datasheet, because open area is what decides the setting.
TPU Parts And Products You Can Cut Without A Die
Every application below is the same machine and a different recipe. What changes is whether the material is printed, whether it arrives on a roll or as sheet, and how much edge finish the finished product is judged on.
Printed Heat Transfer Labels And 3D Badges
- Parts: UV-printed 3D TPU labels, faux-embroidery badges, garment branding applied by heat press.
- The hard part: The outline the brand owner audits is the edge of the print, not the edge of a drawn shape. Print registration drifts sheet to sheet, and a cut path built from the file amplifies that drift instead of absorbing it.
- What you get: Camera-registered contour cutting to the printed edge. This is a workflow of its own — the full material list, machine comparison and buyer FAQ are on the heat transfer label cutting machine page.
Waterproof Membranes And Bonded Seams
- Parts: Seam tape, membrane panels and bonded-seam components for outdoor and technical apparel.
- The hard part: The cut edge becomes the bonding surface. A beaded or tacky edge does not bond evenly, and the failure shows up after lamination — when the part is already inside a finished garment.
- What you get: A fused edge that stays flat enough to bond, with the parameter fixed on your own membrane before quotation.
Inflatables And Welded Goods
- Parts: Panels for inflatable boats, paddle boards, airbeds and air-tight bladders in TPU-coated fabric.
- The hard part: These are pressure vessels. A panel that is 1 mm out closes up as a seam that does not meet cleanly, and the leak is found at the pressure test after the whole unit is welded.
- What you get: Repeatable panel geometry on a fixed table, where position does not depend on unwind tension holding steady.
Footwear Overlays And Bonded Panels
- Parts: TPU overlays, toe caps, heel counters and reinforcement panels for sports and technical footwear.
- The hard part: Overlays are cut from laminate, and the layers have different melt points. Delamination at the kerf is what the assembly line rejects, not the outline accuracy.
- What you get: Settings established on your exact layer build — two laminates with the same spec sheet can behave differently. See footwear cutting machine.
Medical And Protective Textiles
- Parts: TPU-coated components for medical drapes, mattress covers, protective clothing and fluid-barrier products.
- The hard part: The barrier property is the product. Any cut that opens the coating at the edge defeats it, and the customer’s test is a fluid or microbial barrier standard, not a visual check.
- What you get: Non-contact cutting that does not abrade the coating, with sample parts returned for your own barrier testing. See medical textile cutting machine.
Gaskets, Seals And Wear Parts
- Parts: Solid TPU gaskets, seals, bushings and abrasion-resistant pads cut to drawing.
- The hard part: Sealing parts are measured, not eyeballed. Thicker TPU also wants the heat to leave through the kerf rather than into the part, or the cut face goes glossy and picks up dust.
- What you get: Die-less cutting, so a revised drawing becomes parts the same day. See laser gasket cutting machine.
Recommended KASU Laser Machines For TPU
Which machine depends on one question: is the TPU printed? Printed film and transfer labels have to be cut to the printed edge, which needs a camera. Plain film, sheet and coated fabric do not.
KX850-F1 CCD Laser Cutter For Printed TPU Film
For printed TPU — heat-transfer film, 3D transfer labels, UV-printed TPU badges. The camera cuts to the printed edge, so print drift is absorbed instead of amplified.
- Cuts: Printed TPU transfer film and 3D labels, white-ink DTF, reflective film, woven and printed labels, UV-printed acrylic and plywood.
- Specs: CCD vision cutting area 650 × 420 mm — suits film up to 60 cm wide · sealed glass CO₂ tube 60/80/100 W · honeycomb table · 0–600 mm/s · detachable 300 mm base frame for container shipping.
- Best for: Label converters and transfer printers whose standard film width is 50–60 cm.
Full specifications: KX850-F1 →
KX640-F1 Compact CCD Laser Cutter
The compact vision option where sheet size is small and floor space is the constraint. Same platform, software and material range as the KX850-F1.
- Cuts: Same printed-TPU material list at a smaller sheet size.
- Specs: CCD vision cutting area 450 × 320 mm — suits film up to roughly 45 cm wide · 60/80/100 W · honeycomb table · ≤10 mm cutting thickness.
- Best for: Sampling rooms and print-on-demand shops running short, frequently changing jobs.
Full specifications: KX640-F1 →
K1814-S2 Double Head Auto Feeding Laser Cutting Machine
For unprinted TPU supplied on the roll — coated fabric, membrane, plain film. Auto feeding keeps a continuous roll moving without an operator re-loading sheets.
- Cuts: TPU-coated fabric, waterproof membrane, plain TPU film, technical textiles.
- Specs: 1800 × 1400 mm working area · double heads · 80–150 W · conveyor auto-feed for roll stock.
- Best for: Outdoor gear, inflatables and medical textile production running metres rather than sheets.
K1390-F1 Laser Cutter And Engraver With Honeycomb Table
The sheet-work entry point for unprinted TPU sheet and laminate, where no contour registration is required.
- Cuts: TPU sheet, laminated TPU, gaskets, seals and wear parts; cutting and surface engraving on the same table.
- Specs: 1300 × 900 mm working area · single head · 80/100/130/150/200 W · honeycomb table for airflow and support.
- Best for: Gasket and industrial-part shops cutting solid TPU to drawing.
Laser vs Knife Cutting on TPU
TPU gets cut both ways in the same factories, and on some jobs the blade is the right answer. This table is about where each method actually holds up on this material — not a claim that one wins everywhere.
| Job | Drag / oscillating knife | CO₂ laser |
|---|---|---|
| Thin film, full cut | TPU is elastic — it stretches ahead of the blade before it severs. Small radii distort, and a cutting mat plus blade replacement are running costs. | Non-contact, so nothing stretches. No tool wear. The trade-off is a melted kerf that has to be tuned, not a mechanical depth setting. |
| Kiss cut on a liner | Usually the better tool. Blade depth is a mechanical setting and is easy to hold on a thin liner. | Possible, set by power rather than depth; the window is narrower and is established during the sample cut. |
| Thick sheet, gaskets and seals | Oscillating knife handles thickness well, but the cut face can drag and the tool has to be maintained. | Cuts to drawing with no tooling; above a certain thickness the heat has to leave through the kerf or the face goes glossy. |
| TPU-coated fabric | Cuts it, but the base weave frays and needs a separate finishing step. | Fuses coating and weave in the same pass. Coating side up and coating side down are not the same job — orientation is fixed during sample testing. |
| Printed film, cut to the printed line | Needs registration hardware of its own, and a cut path prepared per design. | Camera reads the printed edge directly; with the line-scan option most jobs need neither register marks nor a vector file. See heat transfer label cutting machine. |
| Multi-layer laminate | No melt, so no delamination risk from heat — a genuine advantage on some builds. | Layers have different melt points; the setting has to be proven on your exact stack rather than a datasheet. |
| PVC-coated look-alikes | Required method. Cold knife only. | Excluded. PVC is not laser-processed at KASU — see PVC Cutting Systems. |
The practical split: knife for kiss-cutting liners and for laminates you do not want heated; laser for thin film, coated fabric, printed work and anything where the edge has to be fused rather than sheared. Before quoting, the question worth settling is whether your material is actually TPU or a PVC-coated look-alike — that one answer decides how the work has to be divided.
Parameters Proven On Your Own TPU, Not On A Spec Sheet
TPU is a thermoplastic: the cut line melts rather than burns, and every common defect traces back to that one fact. Two rolls with the same datasheet can need different settings. Everything below is aimed at closing that gap before a machine ships, not after.
Distributors and OEM partners: KASU offers free OEM/ODM — custom models, your brand colours and logo, multilingual labelling, with no extra service charge. Details on About KASU.
Send Your Own TPU For A Free Sample Cut
- Send the film, sheet, coated fabric or laminate you actually run. We cut your artwork on the machine you are quoting and send the parts back.
- The setting that worked on the sample is recorded per material and ships with the machine, so the operator recalls it instead of re-deriving it.
- Laminates and mesh composites get a swatch request rather than a datasheet review — open area and layer stack are what decide the setting, and neither is on the spec sheet.
- For distributors: TPU is a repeat-consumable business, not a one-off machine sale. Your customer changes film supplier, the window shifts, and they come back to whoever holds the parameter records. That is a service relationship you own, not a transaction you close.
Printed Or Plain TPU — We Will Tell You Which Machine You Need
- Printed TPU has to be cut to the printed edge, which needs a camera. Plain film, sheet and coated fabric do not — and paying for vision you will not use is the most common over-spec on this material.
- With the line-scan camera option most printed jobs need neither register marks nor the original vector file, so artwork can change between runs without a new cut path.
- What we will not sell you: if your material turns out to be PVC-based rather than TPU, we route it to a cold knife instead. See PVC Cutting Systems.
- For distributors: free OEM/ODM, custom branding and regional terms are handled case by case — see About KASU.
The Factory That Builds Your TPU Cutter
- Founded 2009 · Shanghai R&D · 8,000+ m² Suzhou plant, 15 minutes from the R&D centre.
- 100+ models across 9 series, 70+ owned patents and software copyrights, China High-Tech Enterprise.
- Machines are built in-house rather than traded, which is why a question about a beading kerf reaches the people who built the motion and optics.
CE And FDA Certified, Shipping To 80+ Countries
- CE and FDA certified; 5,000+ customers across 80+ countries.
- Installation guidance, operator training and spare parts supplied from the factory that built the machine.
- Class-1 enclosed configurations available where the destination market requires them.
TPU Laser Cutting Machine — Buyer FAQ
Can A CO₂ Laser Cut TPU Materials?
Yes. A CO₂ laser can cut many TPU sheets, films and fabrics, but the cutting result depends on the material formulation, thickness and any coatings or laminated layers. Sample testing is recommended before production.
What TPU Materials Can Your Machine Process?
Our machines can process many TPU sheets, TPU films, TPU-coated fabrics and selected laminated TPU materials after compatibility testing. Material composition should always be confirmed before configuration.
Is Sample Testing Available Before Purchasing?
Yes. KASU Laser provides sample testing to evaluate cutting quality, edge condition and machine suitability before recommending a configuration.
Can The Machine Cut TPU Rolls And Sheets?
Yes. Depending on your production requirements, KASU offers solutions for both sheet-fed and roll-fed TPU materials with suitable table and feeding configurations.
Can The Machine Engrave TPU As Well As Cut It?
Yes. A CO₂ laser can perform both cutting and surface engraving on compatible TPU materials, making it suitable for logos, patterns and decorative designs.
What Information Is Needed For Machine Selection?
Please provide your TPU material type, thickness, sheet or roll size, application, production volume and sample photos if available. This helps us recommend the most suitable machine configuration.
Which Industries Use TPU Laser Cutting Machines?
TPU laser cutting machines are widely used for footwear, apparel, sports equipment, medical products, automotive components and industrial flexible materials.
Which KASU Laser Machine Is Recommended For TPU?
It comes down to one question: is the TPU printed?
Printed — heat-transfer film, 3D transfer labels, UV-printed TPU — has to be cut to the printed edge, which needs a camera. The KX850-F1 (650 × 420 mm vision area) covers film up to 60 cm wide; the KX640-F1 (450 × 320 mm) suits film up to roughly 45 cm where floor space is the constraint.
Unprinted TPU needs no registration. Roll-form coated fabric and membrane run on the K1814-S2 with auto feeding; sheet and laminate run on the K1390-F1.
Paying for vision you will not use is the most common over-spec on this material. Send your film width, whether it is printed, and a typical sheet, and we will time it before quoting.
How Do You Cut Printed TPU Heat-transfer Film To The Printed Line?
With a camera that reads the print, not with a pre-drawn file. On a vision machine there are two working modes, and which one you use depends on how much the printed graphic has shifted:
- Contour auto-detection — the camera finds the printed outline and generates the cut path itself. No cut file needed, which is the usual mode for sublimation and heat-transfer work.
- Graphic feature template matching — you import the design file to build a template. Better when the print has only small distortion and the shape is complex.
- Heavily distorted prints — an imported file stops helping once the graphic has moved. Draw the cut path in the vision software and generate the template there instead.
Plain TPU sheet and film that cut to a drawn shape need no camera at all, and we will say so rather than sell you one. Camera options and recognition accuracy are covered on the KD top camera series FAQ and the vision laser cutting machine page.
Printed transfer work is a workflow of its own — materials, machine choice and buyer FAQ are covered on the heat transfer label cutting machine page.
What Goes Wrong When Cutting TPU, And How Is It Controlled?
TPU is a thermoplastic, so the cut line melts rather than burns — and every common defect traces back to that one fact.
- Beaded or tacky edges. Too much power or too slow a pass leaves a raised bead that can stick the part back into the sheet. The fix is a faster pass at lower power, not more wattage.
- Thin film lifting. TPU film moves under air assist and exhaust draw. Hold-down matters more than laser choice here — honeycomb with vacuum, or a conveyor table for roll stock.
- Coatings and laminations are the unknown. On TPU-coated fabric and laminated stock, the coating decides the fume load and the edge appearance, not the TPU. Unidentified coatings get tested before we quote, not after.
Because formulations differ between suppliers, we treat the material spec as unconfirmed until we cut it. Send film or sheet from the batch you actually buy, with the release liner still on if it ships that way, and we return cut video, the parameters used and edge photos.
