How Lasers Cut TPU And Heat Transfer Label Film
Quick answer: A heat transfer label cutting machine follows the printed contour of a transfer sheet with a camera and cuts it with a focused CO₂ beam. On KASU machines the CCD vision cutting area is 450 × 320 mm on the KX640-F1 and 650 × 420 mm on the KX850-F1, covering transfer film up to roughly 45 cm and 60 cm wide respectively. Edge quality varies with film thickness, ink load and release liner, and is confirmed with a sample cut before quotation.
Transfer film is thin, elastic and printed. Those three properties are what make it awkward: a blade stretches it before it severs it, the print has to be followed rather than assumed, and the release liner underneath usually has to survive. A laser solves the first two directly — it never touches the material, and the camera reads where the print actually landed rather than where the file says it should be. Thermoplastic polyurethane, the base polymer in most 3D transfer labels (see Covestro’s Desmopan TPU range for the grade families in circulation), cuts with a narrow kerf and a fused edge, confirmed by sample cut.
One material this machine will not cut: PVC. A large share of low-cost heat transfer vinyl is PVC-based, and PVC releases chlorine compounds when lasered — damaging to the machine and to the operator. KASU excludes PVC from laser processing and routes those jobs to a cold knife instead; see PVC Cutting Systems. TPU-based film is the laser-safe route, which is one of the reasons brands have been moving to it.
Die-less cutting also removes the tooling step. Short runs, frequent artwork changes and mixed sheets — the normal condition in print-on-demand and team sportswear — stop being a cost problem, because there is no die to pay for and wait for.
Heat Transfer Label Films This Laser Cutter Handles
Transfer films differ in base polymer, thickness, ink load and liner. Those four variables decide the power and speed window, and one of them decides whether the material may be lasered at all. KASU runs a sample cut on your own film before quoting.

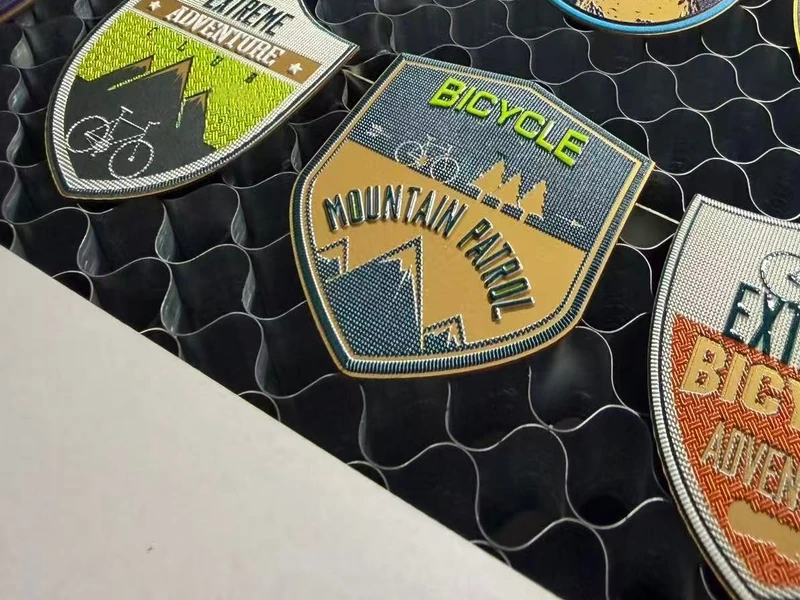

TPU 3D Transfer Labels
- Formats: UV-printed 3D TPU film, typically 0.1–0.3 mm, on sheets or rolls up to 60 cm wide; raised and layered builds included.
- Watch out: TPU is thermoplastic and elastic — it relaxes and can shrink at the cut line if the power/speed window is too hot, and the window shifts when the film supplier or the ink build changes. A new batch means a new sample cut, not a copied parameter set.
- How we cut it: Camera-registered contour cutting at a low-power, high-speed setting, with the parameter set recorded per film so it can be recalled rather than re-derived.

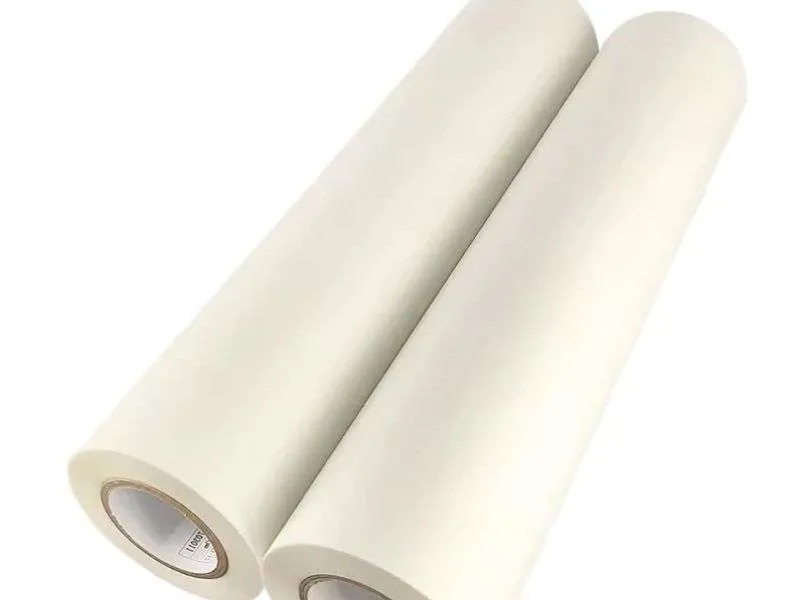

White-Ink DTF Transfer Film
- Formats: PET-based DTF film with white underbase and adhesive powder, roll-fed, 30–60 cm widths.
- Watch out: The powdered adhesive layer is the problem, not the film. It scatters and can re-deposit along the kerf, so extraction has to pull across the sheet rather than around it — and a sheet that has been sitting powdered for days behaves differently from a fresh one.
- How we cut it: Enclosed cutting chamber with downdraft extraction; contour cut against the printed edge so the white underbase stays inside the transfer outline.
Faux-Embroidery 3D Labels
- Formats: UV or silicone-built raised prints that imitate satin stitch and chain stitch, on TPU or PU carrier film.
- Watch out: The raised build changes the focal distance across a single badge, and the outline the customer wants is the edge of the print, not the edge of a drawn shape — which is exactly where a file-based cut path goes wrong on stitch-imitating outlines.
- How we cut it: Line-scan camera reads the printed edge itself; auto-focus head option compensates for build height.

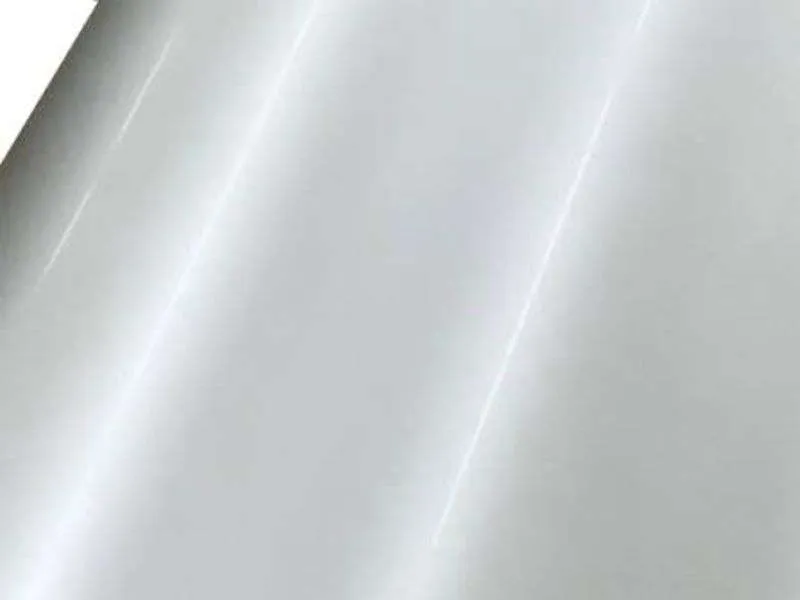

Reflective Transfer Film
- Formats: Glass-bead and micro-prismatic reflective transfer film for workwear and safety garments, usually 50 cm and 60 cm rolls.
- Watch out: The reflective layer is what the camera has to read, and it reads very differently under the machine’s own lighting than a matte print does. Contrast, not accuracy, is the usual failure mode on this material.
- How we cut it: Lighting and threshold tuned per film during the sample cut; non-vision mode available where the layout is a fixed repeat.
Cut Vinyl And Flock, Non-PVC Only
- Formats: PU-based cut vinyl, flock and glitter transfer film. Roll or sheet.
- Watch out: PVC-based heat transfer vinyl is excluded from laser processing. It is still widely sold, often without the base polymer stated on the roll — so the material has to be identified from the SDS or TDS before it reaches the machine, not after. PVC jobs go to a cold knife; see PVC Cutting Systems.
- How we cut it: PU film is contour cut or kiss-cut with the liner left intact for weeding; base polymer verified from your material datasheet before the sample cut.

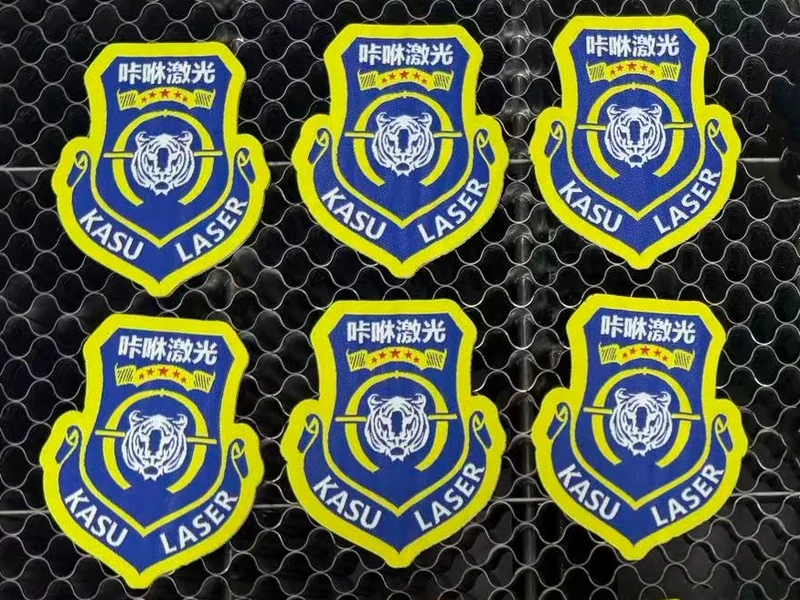

Woven And Printed Label Tape
- Formats: Satin and damask woven labels, printed care labels, taffeta tape — the other half of most label converters’ output.
- Watch out: These are textiles, not film. They need a fused edge to stop fraying, which is a different parameter family from transfer film — and it is the reason a transfer-film-only machine leaves half the shop floor uncovered.
- How we cut it: Same table, different recipe. Details on the woven label laser cutting machine page.
Garment Badges, Numbers And Care Labels Cut From Printed Film
Every application below is a contour-cutting job against a printed sheet. What changes between them is batch size, how often the artwork changes, and how much the customer is willing to pay for a set-up step.
Sportswear Heat-Seal Branding
- Parts: Chest logos, sleeve badges and hem tabs in 3D TPU, batches of 500–20,000 per style.
- The hard part: Brand owners audit the outline. A 0.5 mm drift on a logo contour is visible on a white jersey and gets the shipment rejected — and the drift usually comes from print registration, not from the cutter.
- What you get: The camera cuts to the printed edge rather than the nominal file, so print drift is absorbed instead of amplified.
Team Jerseys: Numbers, Names And Crests
- Parts: Club crests, squad numbers and player names, printed many-up on one sheet and cut as a mixed nest.
- The hard part: Every sheet is a different combination, and the deadline is the match. There is no run long enough to justify tooling, and no time to re-plot a cut file per sheet.
- What you get: The sheet is loaded, the camera finds the parts, and the nest is cut without a file exchange step. Densely nested crest sheets are a routine job on this machine.
Tagless Labels For Children's And Intimate Apparel
- Parts: Printed care and size labels applied by heat press instead of sewn-in tape.
- The hard part: The edge sits against skin. A hard or ragged perimeter on a children’s garment is a returns problem, and the corner radius is small enough that blade cutting distorts it.
- What you get: Non-contact cutting holds small radii, with a fused edge confirmed by sample cut on your own film.
3D Badges For Caps, Bags And Footwear
- Parts: Raised TPU badges and logo patches for headwear, backpacks, technical bags and shoe uppers.
- The hard part: Build height varies across the badge, so a single focus setting is wrong somewhere on the part — and the thicker the 3D effect the customer asked for, the worse it gets.
- What you get: Auto-focus Z-axis option holds focus across the build; the same table then handles the bag and shoe panels themselves.
Print-on-Demand Short Runs
- Parts: One-off and sub-50 transfers, many designs per sheet, shipped within days.
- The hard part: Set-up time is the whole margin. If each design costs ten minutes of file preparation and register marks, the job is not worth taking.
- What you get: With the line-scan camera option most designs need neither a vector file nor printed register marks, so the set-up step largely disappears. See print-on-demand laser cutting.
Reflective Markings For Workwear
- Parts: Reflective strips, chevrons and logo panels heat-applied to high-visibility garments.
- The hard part: Reflective film reads poorly to a camera, and the finished garment may have to meet a visibility standard — so the cut geometry is not purely cosmetic.
- What you get: Lighting and detection tuned to your specific film during sample testing; non-vision mode for fixed repeats.
Flatbed CO₂ vs Vertical Roll-Fed Laser for Transfer Labels
Vertical roll-fed laser cutters are sold into the same TPU and reflective film jobs, at a comparable price. The differences are architectural, and they show up after the first material changes. This table compares machine architectures, not brands.
| Dimension | Vertical roll-fed laser | KASU flatbed CO₂ (KX640-F1 / KX850-F1) |
|---|---|---|
| Material range | Optimised for roll-form film — mainly TPU transfer film and reflective film. | TPU · DTF · reflective film · PU cut vinyl · woven and printed labels · embroidered patches · fabric · paper · UV-printed acrylic and plywood. Sheet and roll. |
| Cutting speed | Comparable on the same transfer film. Neither architecture has a decisive speed advantage on this material. | |
| Material support during cut | Film is carried under web tension; position depends on the feed system holding tension steady. | Film lies on a fixed honeycomb table and does not move with unwind tension, so repeat positioning is independent of tension variation. |
| Fume extraction | Collection depends on the site’s own ventilation arrangement around an open feed path. | Enclosed chamber allows extraction and filtration to be configured as part of the machine. |
| Working modes | Contour cutting on roll stock. | Vision and non-vision modes; full cut, half cut (kiss cut) and surface engraving. |
| Footprint | Comparable. Neither is meaningfully smaller in a production layout. | |
| Shipping | Fixed frame. | Detachable 300 mm base frame section on the KX850-F1 — 18 units per 20GP, 48 units per 40HQ (confirm). |
The short version: if transfer film is the only thing the shop will ever cut, both architectures do the job at a similar speed. The flatbed earns its place the first time a customer asks for a woven label, an embroidered patch or a UV-printed acrylic panel — and in most label shops that request arrives early.
Recommended KASU Heat Transfer Label Cutting Machines
Two machines cover the transfer label width range. The choice is decided by film width, not by output — both run the same job types.
KX850-F1 CCD Laser Cutter For 60 Cm Transfer Film
The recommended solution for 60 cm transfer film. Once manual loading tolerance, camera recognition area and freight cost are taken together, the KX850-F1 is the better economic fit for this width even where a smaller table would nominally reach.
- Cuts: TPU 3D labels · white-ink DTF · faux-embroidery badges · reflective film · PU cut vinyl · woven and printed labels · embroidered patches.
- Specs: Sealed glass CO₂ tube, 60/80/100 W — 100 W recommended for transfer film · CCD vision cutting area 650 × 420 mm · honeycomb table · single head · 0–600 mm/s · ≤10 mm cutting thickness · machine 1370 × 990 × 860 mm with a detachable 300 mm base frame section · AC220V ±5% 50Hz, <2500 W · 18 units per 20GP, 48 units per 40HQ (confirm).
- Best for: Label converters and transfer printers running 50–60 cm film as their standard width, and distributors shipping in container quantities.
KX640-F1 Compact CCD Laser Cutter For Transfer Labels
The entry point for TPU and white-ink transfer work where film width stays below the 60 cm class.
- Cuts: Same material list as the KX850-F1, at a smaller sheet size.
- Specs: CCD vision cutting area 450 × 320 mm — suits transfer film up to roughly 45 cm wide · sealed glass CO₂ tube, 60/80/100 W · honeycomb table · single head · 0–600 mm/s · ≤10 mm cutting thickness · machine 1520 × 1000 × 1150 mm · AC220V ±5% 50Hz, <2500 W.
- Best for: Print-on-demand shops and sampling rooms where sheet size is small and floor space is the constraint.
KX1810-F2 CCD Laser Cutter With Fixed Table
The step up when transfer labels are only part of the work and sheet sizes grow.
- Cuts: Everything the smaller KX machines cut, plus large printed fabric panels and full garment pieces.
- Specs: 1800 × 1000 mm fixed table · CCD vision · 80–200 W options · double head.
- Best for: Converters whose label line shares a floor with cut-and-sew or printed panel production.
Laser vs Knife Cutting on Heat Transfer Film
Knife cutting is not the wrong answer for every transfer job — on some of them it is the right one, and on PVC film it is the only one. This table is about where each method actually holds up.
| Job | Drag / oscillating knife | CO₂ laser |
|---|---|---|
| Kiss cut on the liner | Mature and well controlled. Blade depth is a mechanical setting, which is a genuine advantage on thin liners. | Also available, set by power rather than depth; parameter established during the sample cut. |
| Full cut through thin elastic film | The film stretches ahead of the blade before it severs; small radii distort, and a cutting mat and blade replacement are consumables. | Non-contact, so nothing stretches. Fused edge, confirmed by sample cut. No tool wear. |
| Small radii and fine detail | Limited by blade geometry and the turning behaviour of the tool. | Limited by beam width rather than tool geometry. |
| Artwork changes between runs | No tooling needed; a cut path still has to be prepared. | No tooling needed; with the line-scan camera option most jobs need neither a vector file nor register marks. |
| Woven labels and embroidered patches | Cuts them, but the textile edge frays and needs a separate finishing step. | Fuses the edge as it cuts, on the same machine. |
| PVC-based film | Required method. Cold knife only. | Excluded. PVC is not laser-processed at KASU — see PVC Cutting Systems. |
Most transfer shops end up running both. The question worth asking before a quote is which of your materials are PVC-based, because that single answer decides how the work has to be split.
Contour Accuracy You Can Check Before You Pay
Transfer label work is judged on one thing: whether the cut follows the print. Everything below is aimed at that, and at the fact that the material in front of the machine changes more often than the machine does.
Distributors and OEM partners: KASU offers free OEM/ODM — custom models, your brand colours and logo, multilingual labelling, with no extra service charge. Details on About KASU.
Line-Scan Camera: No Register Marks, No Original File
- The camera detects the printed edge itself, so most designs run without printed register marks and without the customer supplying a vector file.
- Your customer can change the artwork between runs without a new cut file being prepared — the set-up cost per design largely disappears, which is what makes sub-50 runs profitable.
- Boundary: detection depends on contrast between print and substrate. Transparent, low-contrast and highly reflective films are tuned during sample testing, and a fixed-repeat layout can run in non-vision mode instead. (confirm — exact material limits)
- For distributors: TPU and UV 3D printing is scaling fast, and every printer sold creates a cutter that has to follow — unlike DTF, where the cutter is optional, here it is a required second machine. The attach rate is the opportunity. The detachable base frame puts 48 units in a 40HQ, so the per-unit freight that normally eats a small-machine margin is far lower.
Send Your Own Transfer Film For A Free Sample Cut
- Send your film — TPU, DTF, reflective or PU vinyl — and we cut your artwork on the machine you are quoting, then send the parts back.
- Parameters are recorded per film, so the setting that worked on the sample is the setting shipped with the machine.
- We will tell you directly if a material should not be lasered. PVC-based film gets a cold-knife recommendation rather than a sale.
- For distributors: free OEM/ODM, custom branding and regional support terms are handled case by case — see About KASU.
The Factory That Builds Your Label Cutter
- Founded 2009 · Shanghai R&D · 8,000+ m² Suzhou plant, 15 minutes from the R&D centre.
- 100+ models across 9 series, 70+ owned patents and software copyrights, China High-Tech Enterprise.
- Machines are built in-house rather than traded, which is why a parameter question reaches the people who built the motion system.
CE And FDA Certified, Shipping To 80+ Countries
- CE and FDA certified; 5,000+ customers across 80+ countries.
- Installation guidance, operator training and spare parts supplied from the factory that built the machine.
- Class-1 enclosed configurations available where the destination market requires them.
Heat Transfer Label Cutting Machine — Buyer FAQ
Can A Laser Cutting Machine Cut TPU Heat Transfer Labels?
Yes. TPU is a laser-safe thermoplastic polyurethane and cuts with a narrow kerf and a fused edge, confirmed by sample cut. Typical 3D transfer film runs 0.1–0.3 mm; the power and speed window shifts with film supplier and ink build, so KASU cuts your own film before quoting rather than reusing a generic parameter set.
KX640-F1 Or KX850-F1 For 60 Cm Film?
The KX850-F1. Its CCD vision cutting area is 650 × 420 mm, which leaves working margin for manual loading tolerance on 60 cm film; the KX640-F1’s 450 × 320 mm area suits film up to roughly 45 cm. Once freight is included the KX850-F1 is usually the lower total cost at this width, because the detachable base frame puts 48 units in a 40HQ (confirm).
Can It Cut PVC-based Heat Transfer Vinyl?
No. PVC releases chlorine compounds under a laser, which damages the machine and is a hazard to the operator, so KASU excludes PVC from laser processing entirely. Those jobs go to a cold knife — see PVC Cutting Systems. Because base polymer is often not printed on the roll, identify it from the SDS or TDS before the material reaches the machine.
Do I Need Register Marks Or The Original Design File?
With the line-scan camera option, most jobs need neither. The camera detects the printed edge itself, so your customer can change artwork between runs without a new cut file. Low-contrast, transparent and highly reflective films are tuned during sample testing, and fixed-repeat layouts can run in non-vision mode. (confirm — exact material limits)
Can It Half-cut (kiss-cut) As Well As Full-cut?
Yes — both, selectable per job, along with surface engraving. Kiss-cut depth is set by power rather than blade depth and is established during the sample cut on your specific liner. A knife cutter is also good at kiss-cutting; the laser’s advantage is doing full cut, kiss cut and engraving on one table without a tool change.
How Many Cutters Do I Need Per TPU Or UV Printer?
Plan on one cutter per printer. Unlike DTF, where cutting is optional, 3D TPU label production has no manual route once the sheet is printed — the cutter is a required second machine, not an accessory. Actual ratio depends on your sheet size and run length; send a typical sheet and we will time it.
What Else Can This Machine Cut Besides Transfer Film?
TPU, DTF film, reflective film, PU cut vinyl, woven and printed labels, embroidered patches, fabric, paper, and UV-printed acrylic and plywood — full cut, half cut and surface engraving. This is the main practical difference from a transfer-film-only machine: one table covers the rest of a label shop’s work.
How Many Machines Fit In A Container?
The KX850-F1 base frame is detachable, which gives 18 units per 20GP and 48 units per 40HQ (confirm). For distributors this is usually the deciding number on a small-machine order, because per-unit freight on a fixed-frame machine of this class is a large share of landed cost.
Adjacent Machines for Heat Transfer Label Cutting Machine Buyers
Adjacent pages for buyers whose label work does not stop at transfer film.
-
TPU Laser Cutting Machine
TPU as a raw material rather than a printed label — film, coated fabric and sheet, for waterproof membranes, bonded apparel and inflatables. Read it if you are evaluating the polymer itself rather than the transfer workflow. -
Laser Cut Patches Machine
Embroidered, woven and printed patches run on the same table as your transfer film, with a fused textile edge instead of a film edge. Most transfer shops are asked for both. -
Label Laser Cutter
The equipment-side view: how label cutters differ by feeding structure, head count and laser power, across the whole KASU label lineup rather than this one application.
Technical Support for Heat Transfer Label Cutting Machine
Material safety, vision system behaviour and the laser-versus-knife decision, written for buyers specifying a transfer label line.
Contact Us For Heat Transfer Label Cutting Machine
Send your film type, thickness, roll or sheet width, and a sample artwork file. KASU runs a sample cut on your own material and returns the cut parts with the recorded parameters, before any quotation.
