Traditional rubber die-cutting is a structural bottleneck for modern OEM manufacturers facing shrinking lead times and skyrocketing tooling costs. Waiting two weeks for a custom steel rule die to run a short batch of EPDM gaskets destroys your competitive agility. KASU CO2 laser systems eliminate this friction by providing a tool-less, digital workflow that handles complex geometries with zero mechanical stress. This guide breaks down the engineering reality of laser-cutting rubber, focusing on the profitability and technical precision required for system integrators and global distributors.
Why Industrial Laser Systems Outperform Die-Cutting in 2026
The transition from mechanical die-cutting to CO2 laser technology is driven by the demand for “Just-In-Time” (JIT) manufacturing. In my 10 years on the factory floor, I’ve seen distributors lose high-value contracts simply because they couldn’t pivot fast enough. Laser cutting rubber doesn’t just offer raw speed; it offers a software-to-part workflow that bypasses the $500–$2,500 cost of a physical die.

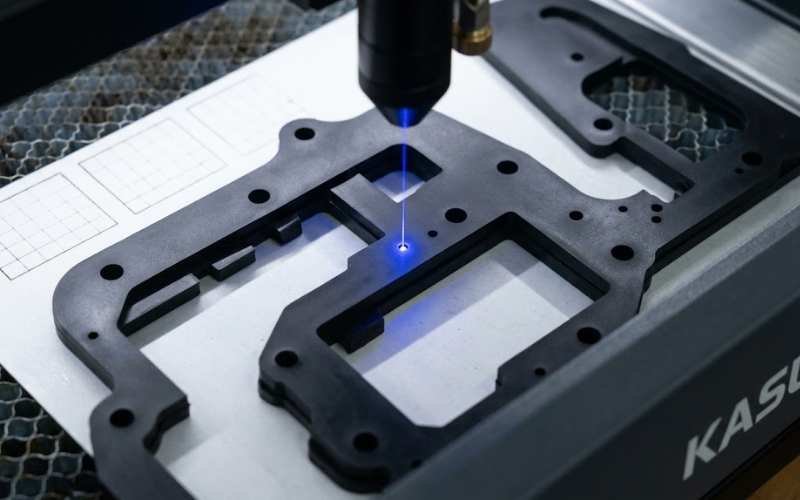

For an OEM manufacturer, the primary advantage is dimensional stability. Traditional dies struggle with narrow walls and sharp internal radii because the elastomer compresses under the blade’s downward force. A laser beam, focused to a 0.1mm spot, exerts zero physical pressure. This ensures that a 50 Shore A Nitrile gasket remains perfectly true to the CAD file during the entire process.
The Distributor Profit Logic: From Capex to OpEx
- Zero Tooling Amortization: Fulfill an order for 5 units as profitably as 5,000 units.
- Just-In-Time Inventory: Stop stocking 100+ gasket SKUs; stock 5 types of raw rubber rolls (HS Code: 4008) and cut on demand.
- Market Expansion: Provide functional prototypes for Automotive seals in hours, securing the “first-to-market” advantage.
- Material Versatility: One KASU machine handles Silicone, EPDM, and Neoprene without specialized hardware changes.

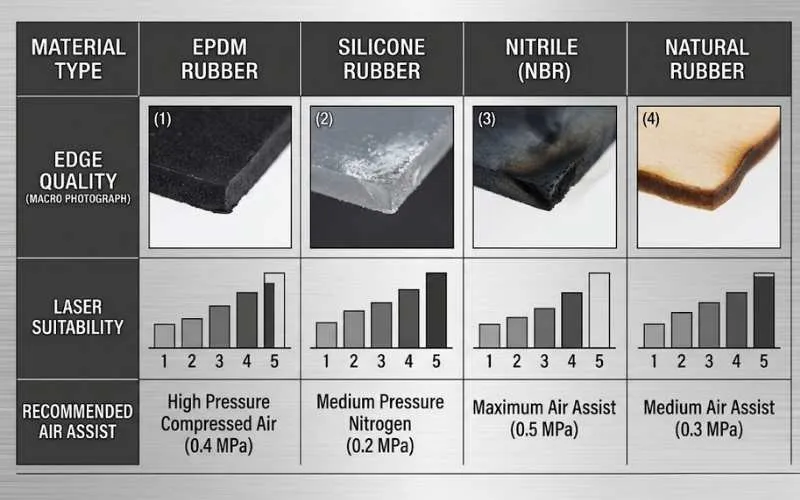

Material Compatibility: The Chemistry of Clean Edges
Not all rubber is created equal under a high-energy laser beam. As a KASU application engineer, I’ve learned that the chemical backbone of the elastomer dictates the edge quality and the safety protocols required. Understanding the OSHA Occupational Chemical Database and EU REACH compliance is vital when selecting materials for high-volume production.
| Rubber Type | Laser Suitability | Edge Quality | Gas/Byproduct Concerns |
|---|---|---|---|
| Natural Rubber | Excellent | Clean, slight char | Minimal smoke, organic odor |
| EPDM | High | Precise, matte finish | Sulfur-based fumes (Extraction mandatory) |
| Silicone | Excellent | White ash residue | Low toxicity, high heat resistance |
| Nitrile (NBR) | Good | Sharp edges | Hydrogen Cyanide (Requires HEPA/Carbon) |
| Neoprene | Moderate | Darker edge | Hydrogen Chloride (Corrosive to optics) |
Engineer’s Field Note: I once inspected a distributor’s facility where they attempted to cut PVC-blended “synthetic rubber” on a budget machine. Within 72 hours, the linear rails were pitted with rust from Hydrochloric acid gas. Never cut PVC. It is not just a health hazard; it is a total machine killer.
Technical Matrix: KASU Engineering Benchmarks
To maximize throughput, you must balance wattage against material density. Higher Shore hardness typically requires slower speeds or increased frequency to prevent the “tapering” effect common in thicker rubber sheets.
Performance Parameters (100W – 150W CO2)
| Material Thickness | Shore Hardness | Power Range | Speed (mm/s) | Air Assist Pressure |
|---|---|---|---|---|
| 2mm | 40A – 60A | 40% – 55% | 35 – 50 | 0.2 MPa (Medium) |
| 5mm | 50A – 70A | 65% – 80% | 15 – 25 | 0.4 MPa (High) |
| 8mm | 60A – 80A | 85% – 95% | 5 – 12 | 0.5 MPa (Max) |
The secret to a “clean” rubber cut is the Focal Length. For rubber over 5mm, we recommend using a 2.5″ or 4″ focal lens. This creates a longer “waist” in the laser beam, ensuring the sidewalls of the gasket remain vertical. At KASU Laser, we calibrate our CO2 Laser Series specifically for these tolerances.

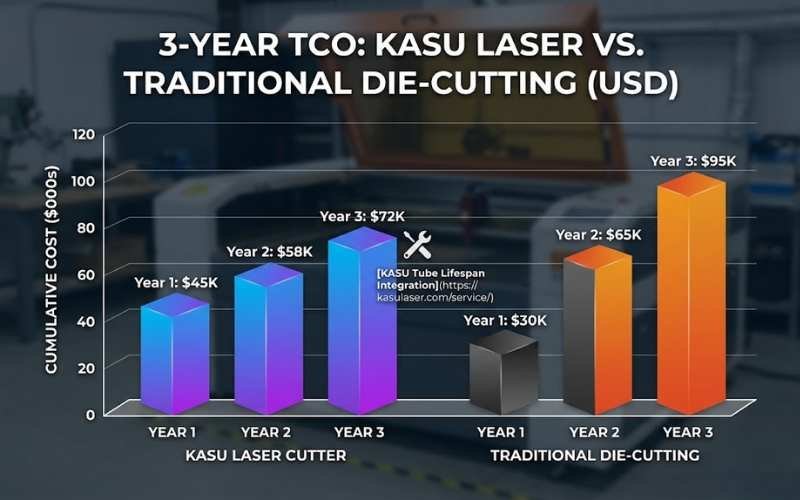

TCO Analysis: 3-Year Maintenance Projection for OEMs
When we pitch to system integrators, we focus on the Total Cost of Ownership (TCO). Unlike waterjet cutting, there is no abrasive disposal cost. Unlike CNC, there are no broken carbide bits or spindle wear.
| Cost Category | Year 1 | Year 2 | Year 3 |
|---|---|---|---|
| Electricity (2.5kW/h avg) | ~$1,200 | ~$1,200 | ~$1,200 |
| Consumables (Lenses/Mirrors) | $200 | $200 | $400 |
| Gas Assist (Air/O2/N2) | Compressed Air (Low) | Compressed Air (Low) | Compressed Air (Low) |
| Maintenance & Parts | Basic Cleaning | Alignment Check | CO2 Tube Replacement |
The ROI Reality: For a distributor producing 500 custom gaskets monthly, the laser system pays for itself within 14 months by eliminating external die-making fees and reducing material scrap by 15% through tighter nesting algorithms.
Smoke Management and Environmental Compliance

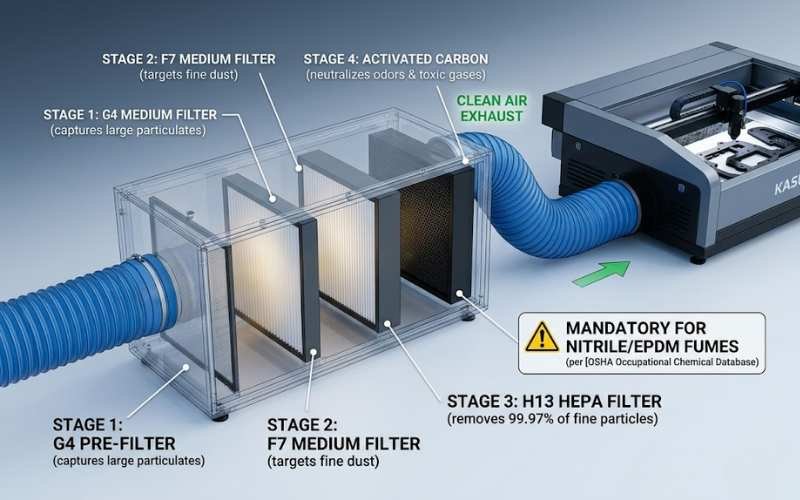

Industrial rubber cutting produces significant particulates. To meet ISO 9001 Standards for air quality, a simple blower is insufficient. You need a four-stage filtration system:
- Pre-filter: Captures large soot particles.
- Medium Filter: Targets fine dust.
- HEPA Filter: Removes 99.97% of toxic particulates.
- Activated Carbon: Neutralizes organic odors and corrosive gases.
Mastering the Industrial Rubber Workflow
The future of rubber fabrication is digital. By removing the physical constraints of tooling, OEMs can innovate faster, and distributors can offer higher-margin, low-volume custom services. The “KASU way” isn’t just about selling a machine; it’s about providing a stable, 24/7 production platform that survives the rigors of an industrial environment. Whether you are cutting EPDM seals for automotive or Silicone gaskets for medical devices, the precision of a calibrated CO2 beam is your strongest competitive advantage.
Engineer Your Profit Margin
Ready to calculate the exact ROI for your specific material? Our engineering team provides custom material testing and TCO reports for high-volume buyers and system integrators. We offer worldwide shipping (HS Code 8456.11) with customs clearance support to ensure your lead time is minimized across international borders.
