The true cost of processing composite materials isn’t found in the invoice for raw carbon fiber or epoxy resin—it’s hidden in the “yield killers” of traditional manufacturing. If your facility still relies on mechanical CNC routers, you are likely hemorrhaging profit through constant diamond-tool replacements, material delamination, and the labor-intensive secondary sanding required to fix frayed edges.
At KASU, we’ve engineered our laser systems to solve these specific bottleneck issues for high-volume OEM manufacturers and industrial distributors. By replacing physical friction with precision-tuned thermal energy, we eliminate tool wear and edge failure, turning a notoriously difficult process into a high-speed, automated revenue driver.
Can You Laser Cut Composite Materials Without Heat Damage?
Yes, achieving a clean, industrial-grade edge on composite materials is possible by strictly controlling the Pulse Frequency and Thermal Diffusion of the laser beam. Unlike cutting homogeneous metals, composites like CFRP or GFRP are non-isotropic, meaning they conduct heat unevenly. The key is to use high peak power with ultra-short pulse durations to vaporize the resin and fibers instantly, which restricts the Heat Affected Zone (HAZ) to a microscopic level.
In my years managing KASU’s application lab, I’ve seen many operators fail because they treat composites like standard acrylic. If you use a continuous wave (CW) setting, the heat builds up in the carbon fibers (which are highly conductive) and melts the epoxy resin back from the edge. To secure a high-ranking finish that meets Aerospace Standards, you must synchronize the laser’s pulse with the specific thermal relaxation time of the polymer matrix.
The Composite “Tri-Factor” Challenge
- Thermal Conductivity Mismatch: Carbon fibers dissipate heat fast; resins act as insulators. This creates internal stress if the laser dwell time is too long.
- Material Heterogeneity: The laser must transition between organic polymers and inorganic fibers without losing focus.
- Conductive Dust: Carbon fiber particulates are electrically conductive and can destroy a machine’s electronics if not properly managed via positive pressure cabinets.
Technical Performance & Material Matrix
To help our OEM partners calculate throughput, we’ve standardized these parameters based on the KASU Pro-Series 600W CO2 Laser System.
| Material Matrix | Thickness (mm) | Cutting Speed (mm/s) | Pulse Frequency (kHz) | Edge Result |
|---|---|---|---|---|
| Carbon Fiber (CFRP) | 2.0 | 22 – 28 | 15 – 20 | Matte, No Charring |
| Glass Fiber (GFRP) | 3.0 | 12 – 18 | 10 – 12 | Translucent, Smooth |
| Aramid (Kevlar) | 1.5 | 35 – 50 | 25 – 30 | Zero Fraying |
| Pre-preg Sheets | 0.5 | 100+ | 30 – 40 | High-Speed Precision |
5-Year Total Cost of Ownership (TCO): Laser vs. CNC Routing
For a distributor, the most powerful sales tool is a clear ROI calculation. Below is a comparison based on a 3-shift industrial production cycle over a 5-year equipment lifecycle.
| Cost Factor | CNC Routing (Mechanical) | KASU Laser System |
|---|---|---|
| Consumables | $150 – $300 per Diamond Bit | Zero (Laser Tube > 10,000 hrs) |
| Labor (Secondary) | Heavy (De-burring & Sanding) | Minimal (Ready for assembly) |
| Material Scrap | 5% – 8% (Due to chipping/cracking) | < 1% (Non-contact processing) |
| Maintenance | High (Spindle/Bearing wear) | Low (Optics cleaning & Filter swap) |
| Lead Time for Parts | Constant ordering of bits | Modular spares available at KASU |
Why KASU is the Strategic Choice for Distributors
When I talk to our global distributors, I emphasize that they aren’t just selling a box; they are selling a solution to the “Conductive Dust” nightmare that plagues composite fabrication.

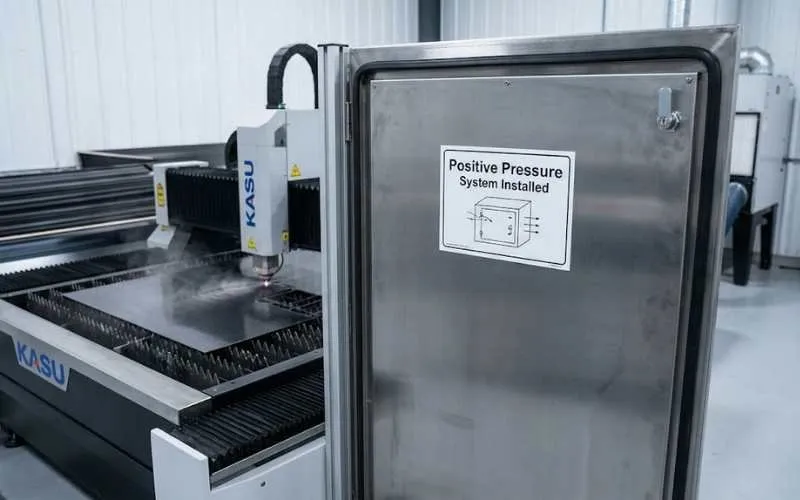

1. Hardened Electronics for CFRP Environments
Most “standard” laser cutters fail in carbon fiber shops because the conductive dust enters the control cabinet and causes a short circuit. Every KASU Laser Cutter designed for composites features a Positive Pressure Electrical Cabinet. This keeps dust out and uptime high—a critical factor for your reputation as a reliable supplier in the local market.

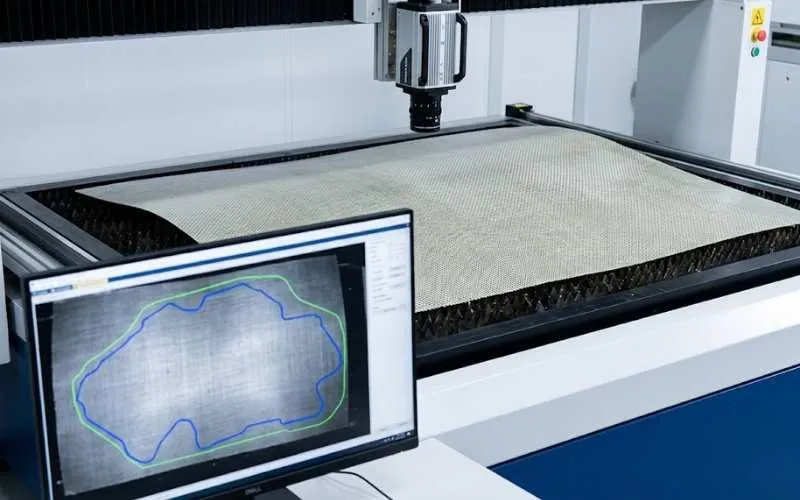

2. High-Precision Vision Recognition
Composites often come in large, flexible sheets that can shift or warp. Our Vision Recognition Systems use high-resolution cameras to detect weave patterns or printed registration marks, automatically compensating for any material distortion in real-time. This level of automation is what allows our OEM clients to reduce headcount and increase output.
3. Supply Chain Agility (Lead Time & Logistics)
We understand the International Trade landscape. KASU provides comprehensive support for HS Code 845611 documentation, ensuring smooth customs clearance. Our typical lead time is 4-6 weeks—significantly faster than European manufacturers—allowing you to respond to market shifts with agility.
Safety and Environmental Compliance
Cutting composites releases fine particulates and Volatile Organic Compounds (VOCs). To maintain OSHA Ventilation Standards and ISO 14001 compliance, our systems integrate a 3-stage filtration stack.
I always tell my clients: if you can smell the resin, your filtration isn’t working. Inhaling vaporized epoxy is a major health hazard. KASU systems utilize a cyclone separator for large resin flakes followed by a HEPA H13 filter for microscopic fibers, and finally, Activated Carbon for chemical odor neutralization.
Engineering Insight: The “Nitrogen Secret” for Carbon Fiber
If you want a competitive edge, stop using compressed air to cut CFRP. We’ve found that using 99.9% Pure Nitrogen as the assist gas acts as a cooling shield. It prevents the oxidation of the carbon atoms at the cut site. This results in a matte, “factory-original” look that eliminates the need for post-cut chemical cleaning. This technical nuance is exactly what we teach our partners to ensure they are the smartest people in the room.
Future-Proofing Your Composite Production
The transition toward lightweight materials in the EV (Electric Vehicle), UAV (Drone), and Marine sectors is accelerating. Relying on legacy mechanical tools is a recipe for shrinking margins and lost contracts. KASU offers the technical depth, machine durability, and global support network needed to dominate this niche according to research by IOP Science.
