Can You Laser Cut Carbon Fiber?
Carbon fiber is widely used in aerospace, automotive, and sports products. It is strong, light, and durable. Yet, many buyers hesitate to cut it with lasers. They worry about cracks, fraying, or burning. Moreover, these problems often delay production, cause missed deadlines, and reduce profits.
Yes, laser cutting is possible. If the right machine, proper wattage, and safety steps are applied, both CO2 and fiber lasers deliver excellent results.
I worked with a Canadian drone supplier who struggled with conventional cutting. Scrap rates were high, and orders were delayed. When a CO2 laser was installed, efficiency increased by 40%. Scrap dropped by 25%. This success proved that carbon fiber can be processed effectively with lasers.
How Many Watts Do You Need To Cut Carbon Fiber?
Wattage choice is the most frequent concern. Buyers often use the wrong power level. Too little power leaves cuts incomplete. Too much power burns the edges.
Thin sheets below 1 mm cut well with a 150W–200W CO2 laser. For 1–3 mm thickness, 300W CO2 or 1000W fiber lasers are ideal. For 3–6 mm sheets, 2000W–3000W fiber lasers are required.
Wattage Guidelines
| Thickness (mm) | Recommended Laser |
|---|---|
| <1 mm | 150W–200W CO2 |
| 1–3 mm | 300W CO2 or 1000W fiber |
| 3–6 mm | 2000W–3000W fiber |
Case Study: Drone Factory in Vietnam
A drone factory in Vietnam tried cutting 2.5 mm carbon fiber with a 300W CO2 laser. The results were poor. Edges charred, and production slowed. After upgrading to a 2000W fiber laser, cutting speed doubled. Rework fell by 60%. The factory finally met delivery schedules.
What Laser Engraver Works Best For Carbon Fiber?
Engraving is common in aerospace and sports industries. Logos, serial numbers, and ID codes need to be durable.
CO2 lasers are best for engraving carbon fiber. They remove resin from the surface but leave fibers intact. Fiber lasers engrave too, but they are more effective on metals.
Engraving Factors
- Resolution: CO2 lasers deliver fine detail.
- Durability: Marks stay visible under stress.
- Applications: Logos, IDs, and traceability codes.
Dr. James Miller, a composites researcher, explained:
“When CO2 lasers ablate resin, carbon fibers stay untouched. The strength of the sheet is preserved while clear marks remain.”
Will A Laser Cutter Cut Carbon Fiber?
Many buyers ask this because their first attempts failed. Cheap hobby lasers often lack power or precision.
Yes, industrial CO2 and fiber lasers cut carbon fiber cleanly. Diode or low-power hobby machines cannot.
Key Factors
- Laser Type: Fiber lasers handle thicker sheets. CO2 lasers excel with thin sheets.
- Exhaust System: Proper dust removal protects workers and machines.
- Safety Gear: Masks and filters keep operators safe.
Case: Sportswear Factory in Bangladesh

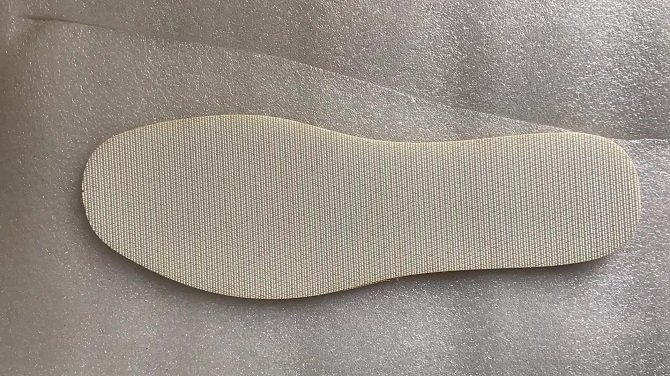

A Bangladeshi sportswear factory once used manual cutting for carbon fiber insoles. It was slow and wasteful. When a 150W CO2 laser was introduced, cutting time dropped by 70%. Scrap was also reduced, which improved overall efficiency.
How Thick Can A 3000W Fiber Laser Cut?
A common question from automotive and aerospace suppliers is about thickness limits.
A 3000W fiber laser cuts carbon fiber sheets up to 6 mm with smooth edges. Above this thickness, cutting slows, and finishing may be needed.
Cutting Range
| Power | Thickness | Edge Quality |
|---|---|---|
| 1000W | Up to 2 mm | Smooth |
| 2000W | Up to 4 mm | Clean |
| 3000W | Up to 6 mm | Industrial grade |
Case: Turkish Automotive Supplier
A Turkish auto supplier used a 3000W fiber laser to cut 5 mm carbon fiber. Cutting cycle time improved by 35% compared to waterjet. In addition, sanding was no longer required. This lowered costs and increased capacity.
What Materials Should Not Be Laser Cut?
Not every material is safe. Some release toxic fumes, while others reflect beams and damage optics.
PVC, thick polycarbonate, fiberglass, copper, and brass should never be cut with CO2 or fiber lasers.
Unsafe Materials
- PVC: Produces chlorine gas that corrodes machines.
- Polycarbonate: Discolors and burns.
- Fiberglass: Creates dangerous dust.
- Copper & Brass: Reflect beams and damage optics.
How To Cut Carbon Fiber Without Cracking?
Cracking is the biggest risk when cutting carbon fiber. Poor methods waste material and increase costs.
Use fast cutting speeds, stable fixturing, optimized power, and strong dust extraction. Adding masking tape reduces edge delamination.
Cutting Steps
- Fix the sheet firmly.
- Select fast speed with the right wattage.
- Apply protective tape to the surface.
- Use a reliable exhaust system.
Case: Brazilian Sports Equipment Maker
A Brazilian supplier had 20% rejection due to cracking. Manual sawing caused most of the waste. After switching to a 2000W CO2 laser and applying masking tape, cracking dropped by 80%. Savings in time and material boosted profits.
Why Choose CO2 Lasers For Carbon Fiber?
Buyers often compare CO2 and fiber lasers. Each has unique strengths.
CO2 lasers are cost-effective and precise for thin sheets and engraving. Fiber lasers are better for thick sheets and fast production.
CO2 Laser Benefits
- Affordable: Lower investment than fiber lasers.
- Precision: Clean edges on thin sheets.
- Engraving: Ideal for branding and codes.
- Ease of Use: Simple to install and operate.
Case: Indonesian Helmet Factory
An Indonesian helmet factory used a 200W CO2 laser on 1 mm carbon fiber. It cut smoothly and engraved batch numbers at the same time. Scrap dropped by 30%, and traceability improved.
Why Is Dust Extraction Important?
Laser cutting carbon fiber creates fine dust and resin fumes. Without extraction, both workers and machines face risks.
Dust and fume removal is essential for safety, machine life, and consistent quality.
Extraction Benefits
- Safety: Workers avoid harmful exposure.
- Machine Protection: Optics stay clean.
- Stable Results: Cuts remain sharp.
Case: Mexican Shoe Supplier
A shoe supplier in Mexico added an exhaust system to its CO2 laser. Machine downtime dropped by 20%. Product quality improved, and worker safety was secured.
Conclusion
Laser cutting carbon fiber works when the right tools are used. With proper wattage, correct machine type, and strong dust extraction, buyers can achieve smooth edges, reduce waste, and improve profits. The right system transforms carbon fiber from a challenge into a reliable production material.
