KA5-080602 3D 5-Axis Laser Cutting Machine
The KA5-080602 3D 5-Axis Laser Cutting Machine is a laser cutting machine designed by KASU for 3D laser cutting processing. Self-developed N×360° infinite rotation 3D machining head, high-speed and efficient work with self-developed system.
- With Manual Teaching And Offline Programming Function
- Optimize The Cutting Path And Improve The Cutting Performance
- Maintain A Stable Focus And Normal Cutting Direction
- Cut Complex Multi-surface And Curved Products
- 🚚 7–15 days lead time
- 🛡 12-month warranty
See the KA5-080602 3D 5-Axis Laser Cutting Machine in Action — 3D Motion Demo Video
Watch the KA5-080602 3D 5-Axis Laser Cutting Machine run a real 3D cutting job on our factory floor — multi-axis motion, surface tracking, and dynamic focus captured at production speed. The clip shows what to expect on day one before you commit to a machine of this class.
See the KA5-080602 3D 5-Axis Laser Cutting Machine in Action — 3D Motion Demo Video
KASU KA5-080602 3D 5-Axis Laser Cutting Machine as a laser processing equipment capable of cutting complex curved three-dimensional parts, is mainly applicable to automobiles, construction machinery, molds, fitness equipment, sheet-metal processing and other fields, the processing of large-scale, complex structural parts to meet the three-dimensional curved parts of high-speed, high-precision processing of high-end laser processing equipment.
KA5-080602 3D 5-Axis Laser Cutting Machine — 3D Motion Specs, Optical Setup & Manufacturing
Every 3D motion, optics and process dimension of the KA5-080602 3D 5-Axis Laser Cutting Machine in one place — complete technical data sheet, included accessories, available optional upgrades, and our factory manufacturing process. Key strengths at a glance: Intelligent System, Cut Complex Multi-surface and Curved Products, and Modular Design of Working Parts. Switch the tabs below to drill into each.
- Data Sheet
- Includes & Options
| XYZ Stroke | About 750MM*600MM*200MM | Software | KASU |
| Laser Type | Glass CO2 Laser Tube | Maximum Air Speed | 0.5M/S |
| Laser Power | 80W/100W/130W（RF laser as standard） | Power Requirements | 380V/50Hz |
| Heads of Laser | Single Head | Dimensions | 1650mm*1650mm*2250mm |
| Transmission System | Servo Motor + linear Module + Rotary Table | Repeat Positioning | ±0.05MM |
| Gross Weight | About 1T | Working Environment | Temperature 5-40°C: Humidity: 5%-80%, non-condensing |
| Laser Tube Cooling Methods | Water Cooling | Equipment Power | About 6.5KW （based on 80W laser tube） |
What's Included with the KA5-080602 3D 5-Axis Laser Cutting Machine
- Glass CO2 laser tube — 100W / 130W (configurable)
- 5-axis cutting head (X, Y, Z + 2 rotational axes)
- HIWIN-spec precision rails for 800 × 600 × 200 mm work envelope
- American II–VI 25mm focusing lens (5-axis tuned)
- Three molybdenum reflective mirrors
- S&A CW-5200 industrial chiller
- Hailey diaphragm air pump
- 1.5kW centrifugal smoke exhaust + ducting kit
- Industrial DC HV power supply
- Triangle-truss steel frame + 5-axis gantry
- KASU bundled 5-axis CAM (no extra license cost)
- STEP / IGES / STL file import support
- E-stop + tower light
- Multi-language CE laser warning labels
- Factory tool kit
Compatible Upgrades for the KA5-080602 3D 5-Axis Laser Cutting Machine
- Extended rotational range
- Larger work envelope (custom factory build)
- Fiber laser source variant (consult sales)
- Extended-warranty pack
Inside the KA5-080602 3D 5-Axis Laser Cutting Machine — 3D Motion Engineering Highlights
The blocks below take you inside the KA5-080602 3D 5-Axis Laser Cutting Machine — each illustrates one specific axis, optical system or process component that defines its 3D motion envelope and surface tracking. Topic-by-topic below: Self-Owned Software System, N*360° Rotating Laser Head, and Configuration Of Working Parts.
Self-Owned Software System
KASU has self-developed software system for better machine operation. The 3D 5-axis laser cutting machine is equipped with a specialized 5-axis controller and optional offline programming software.

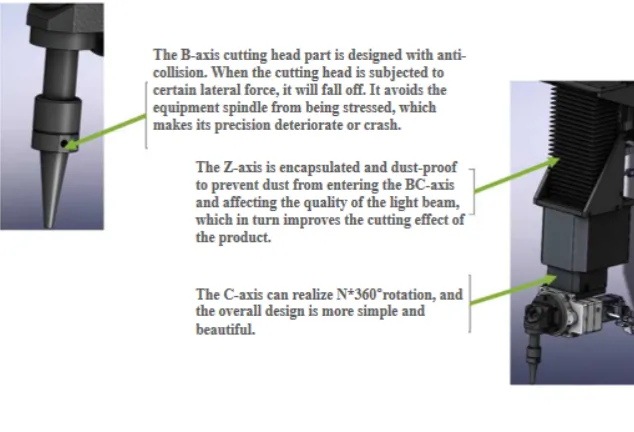

N*360° Rotating Laser Head
Designed to avoid the collision of three-dimensional cutting head, to avoid the dust into the impact of cutting errors, N*360° Rotating Laser Head is to improve processing efficiency.
Configuration Of Working Parts
The working part adopts modular design, users can choose the suitable working table according to the application, at present, there are three main configurations: Fixed Working Part/Single-station Rotary Working Part/Double-station Rotary Working Part.
One Stop Laser Solution For Your Product
Request An Instant Quote For Your Industry
How KASU Support Your Business
KASU Laser is a high-tech enterprise specializing in the production and sales of laser equipment, integrating laser, precision machinery, numerical control and application software. The company was founded 14 years ago, there are professional after-sales team and engineers experts, is your best choice!
Message now and receive an instant quote.
Frequently Asked Questions About the KA5-080602 3D 5-Axis Laser Cutting Machine
What is 3D 5-axis laser cutting, and what workloads does the KA5-080602 enable?
3D 5-axis means the cutting head moves on five independent axes (X, Y, Z, plus two rotational axes) â letting the laser cut at any angle into curved, contoured, or dome-shaped workpieces. The KA5-080602 is for automotive parts (interior trim panels, dashboard openings), pre-formed plastic enclosures, contoured composite parts, and 3D-printed prototype trimming. A normal flatbed cuts only sheet stock; 5-axis cuts the surface of any shape.
Which automotive and aerospace tier suppliers use 3D 5-axis laser cutters?
Sweet-spot buyers in 2025: German tier-2 automotive suppliers (interior trim cutouts), Italian sports-car composite-part shops, US aerospace prototype shops trimming carbon-fiber forms, Mexican appliance OEMs cutting molded plastic enclosures, and Turkish bus-interior fabricators. KASU’s KA5-080602 sits in the $40K-80K band â accessible to mid-tier suppliers without the $200K+ price tag of European 5-axis platforms.
What materials and thicknesses can the KA5-080602 handle?
| Material | Typical thickness | Best application |
|---|---|---|
| PP / ABS plastic | up to 5 mm | Auto trim, enclosures |
| Carbon fiber composite | up to 3 mm | Aerospace prototypes |
| Wood / MDF (curved) | up to 6 mm | Furniture prototypes |
| Pre-formed acrylic | up to 8 mm | POS / signage 3D shapes |
| Vinyl / leather (3D-form) | up to 3 mm | Auto seat covers, bags |
How does the KA5-080602 differ from the KC-600 3D Auto-Focus cutter?
The KC-600 uses a 3D auto-focus head (Z-axis variation only) for uneven-surface flat workpieces. The KA5-080602 adds two rotational axes (5-axis) for true 3D cutting on curved/dome shapes. Pick KC-600 for slightly-warped or stepped flat stock; pick KA5-080602 for genuinely 3D contoured workpieces (automotive interior parts, helmets, formed enclosures).
What CAD / CAM software supports the KA5-080602 5-axis programming?
The KA5-080602 control software imports STEP / IGES / STL CAD files (standard 3D formats from SolidWorks, Fusion 360, CATIA, Inventor). Tool-path generation is handled by KASU’s bundled 5-axis CAM (no extra licence cost). Files can also be prepared in Mastercam, SolidCAM, or Fusion 360 CAM â the machine reads standard ISO G-code with 5-axis extensions.
