Vision Laser Cutting Machine Explained — From Laser Source to Finished Edge
Are you sourcing a vision laser cutting machine for printed textile or label contour cutting? A vision laser cutting machine uses an industrial camera system to detect printed patterns and automatically generate cutting paths. The vision laser cutting machine reads contour marks or pattern edges, then guides the CO₂ laser to cut shapes with consistent positioning accuracy. In garment, sportswear, and label production, a vision laser cutting machine processes sublimation fabric, embroidery patches, and heat transfer graphics where pattern alignment determines product quality. The system integrates camera positioning, motion control, and cutting software to automate contour cutting workflows.
How Vision Laser Cutting Machine Models Differ
Vision system configuration determines how the vision laser cutting machine detects printed contours, compensates distortion, and guides the cutting path. Camera resolution and scanning method directly affect recognition accuracy and processing speed when cutting printed textile or labels.

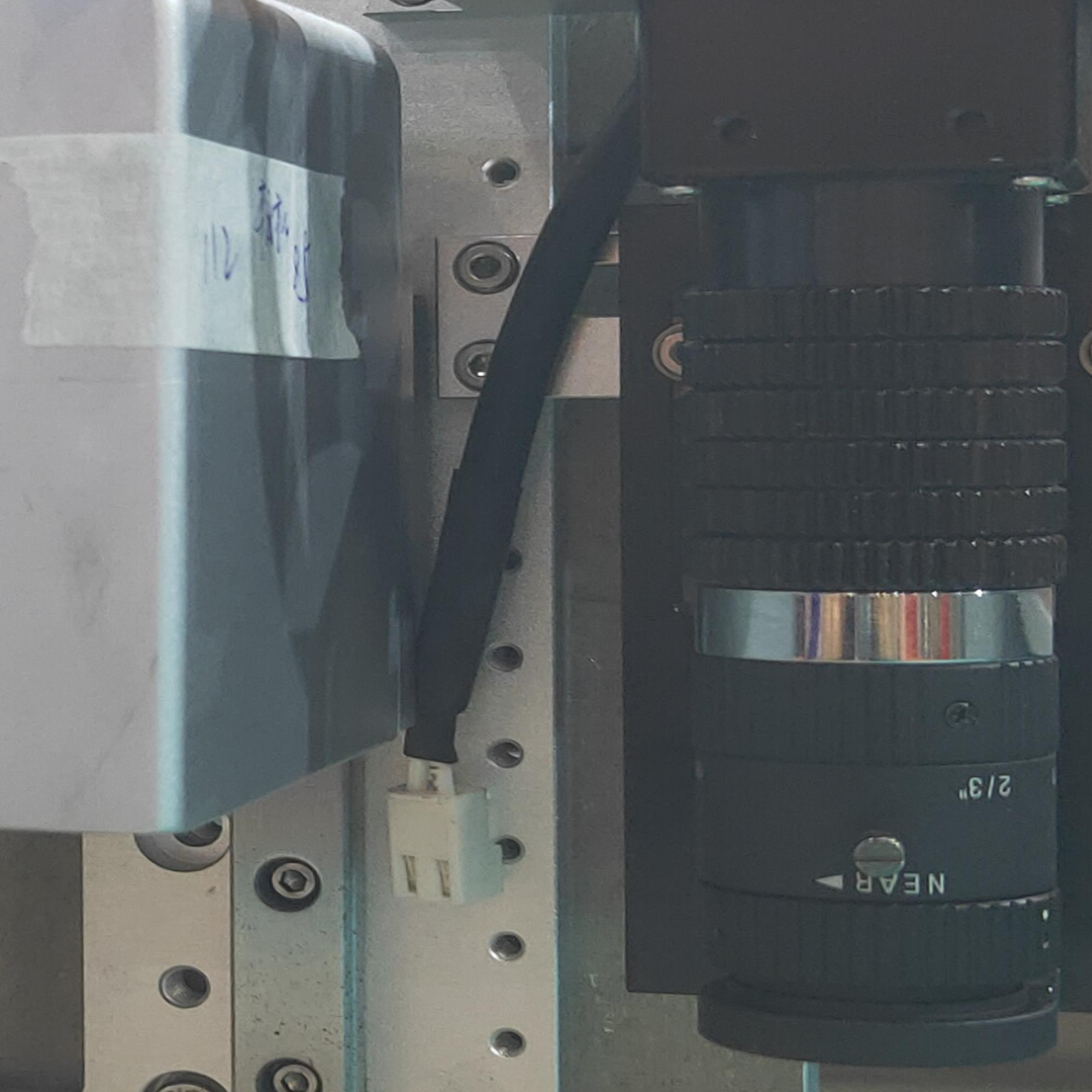

CCD Vision Laser Cutting Machine
CCD vision laser cutting machine systems detect printed pattern edges using industrial CCD cameras. This configuration is used for printed fabric and label contour cutting where recognition accuracy determines cutting quality and repeatability.
- Camera type: industrial CCD camera
- Cutting accuracy: ±0.1 mm
- Typical users: textile printing factories
HD CCD Vision Laser Cutting Machine
HD CCD vision laser cutting machine systems process high-resolution printed graphics with improved edge detection. The configuration is used when printed patterns contain small details or irregular shapes requiring precise contour identification.
- Camera resolution: high-definition CCD
- Recognition method: contour scanning
- Typical users: digital textile printers
Dual Camera Vision Laser Cutting Machine
Dual camera vision laser cutting machine systems use two synchronized cameras to scan wider working areas and maintain positioning stability during continuous production. This configuration improves detection coverage for large printed textiles or roll materials.
- Camera quantity: dual industrial cameras
- Recognition range: large working width
- Typical users: garment production lines
Industrial Vision Laser Cutting Machine
Industrial vision laser cutting machine systems integrate vision cameras with motion control software to detect contour paths across wide textile surfaces. The system is used for automated cutting of printed fabrics where production speed and accuracy must remain consistent.
- Vision system: industrial optical recognition
- Working width: large-format textile cutting
- Typical users: textile OEM factories
Canon Camera Vision Laser Cutting Machine
Canon camera vision laser cutting machine systems use high-resolution Canon cameras to scan printed materials and extract contour paths. This configuration is selected when pattern complexity requires precise optical recognition across the full working area.
- Camera resolution: high-pixel Canon camera
- Recognition method: full-area scanning
- Typical users: digital print garment manufacturers
A Quick Tour of Vision Laser Cutting Machine Variants
Material composition influences how the vision laser cutting machine interacts with fabric edges, heat sealing behavior, and contour visibility. Different textile structures require adjusted laser power, airflow, and scanning parameters to maintain cutting stability.
Vision Laser Cutting Machine For Printed Fabric
Vision laser cutting machine systems process printed fabric by scanning graphic contours and generating cutting paths. This configuration supports digital printing workflows where accurate pattern alignment ensures finished garment component consistency.
- Material type: printed textile fabric
- Typical thickness: 0.2–1.5 mm
- Typical users: sportswear factories
Vision Laser Cutting Machine For Sublimation Textile
Vision laser cutting machine systems for sublimation textile detect dye-sublimation patterns on polyester fabric and cut along printed contours. The configuration supports sportswear production where graphic positioning affects panel alignment.
- Material type: polyester sublimation fabric
- Cutting method: contour recognition
- Typical users: sportswear manufacturers
Vision Laser Cutting Machine For Embroidery Patches
Vision laser cutting machine systems cut embroidery patches by detecting stitched borders and generating contour cutting paths. This configuration allows automated trimming of irregular patch shapes used in garment and accessory production.
- Material type: embroidered fabric patch
- Edge requirement: sealed edge cutting
- Typical users: patch manufacturers
Vision Laser Cutting Machine For Labels
Vision laser cutting machine systems process woven labels and printed labels using camera positioning to detect contour shapes. This configuration is used for automated label trimming where production batches require consistent positioning.
- Material type: woven or printed label
- Cutting method: contour detection
- Typical users: label production factories
Vision Laser Cutting Machine For Non-woven Fabric
Vision laser cutting machine systems process non-woven materials by scanning printed outlines and guiding the cutting path. This configuration is applied when non-woven fabrics contain printed shapes or graphic outlines.
- Material type: non-woven textile
- Edge type: sealed fiber edge
- Typical users: packaging textile manufacturers
Vision Laser Cutting Machine For PU Leather
Vision laser cutting machine systems process PU leather materials by detecting printed shapes or surface patterns and cutting along contour paths. This configuration supports footwear and accessory manufacturing where pattern accuracy is required.
- Material type: PU synthetic leather
- Cutting thickness: 0.5–2 mm
- Typical users: footwear factories
Where Vision Laser Cutting Machine Delivers the Strongest ROI
Application industry determines the production workflow, pattern complexity, and required automation level of a vision laser cutting machine. Each industry processes different material formats and contour shapes.
Vision Laser Cutting Machine For Sportswear
Vision laser cutting machine systems process sublimation sportswear panels by detecting printed outlines and generating cutting paths. This configuration supports automated cutting of jersey panels and graphic garment parts.
- Application: sportswear panel cutting
- Material type: sublimation polyester
- Typical users: sportswear OEM factories
Vision Laser Cutting Machine For Garment Manufacturing
Vision laser cutting machine systems cut printed garment components by scanning pattern outlines and guiding contour cutting. This configuration supports digital garment production requiring accurate alignment of printed graphics.
- Application: printed garment components
- Material type: polyester or blended fabric
- Typical users: garment manufacturers
Vision Laser Cutting Machine For Label Industry
Vision laser cutting machine systems process woven labels and printed labels with camera-guided contour cutting. This configuration improves production efficiency in label manufacturing lines handling large batches of small parts.
- Application: label trimming
- Material type: woven or coated label
- Typical users: label factories
Vision Laser Cutting Machine For Heat Transfer Graphics
Vision laser cutting machine systems cut heat transfer graphics by detecting printed shapes on transfer film and generating contour cutting paths. This configuration supports apparel decoration workflows.
- Application: heat transfer graphics
- Material type: transfer film
- Typical users: apparel decoration suppliers
Vision Laser Cutting Machine For Digital Printed Textile
Vision laser cutting machine systems process digital printed textile materials where contour recognition determines cutting path accuracy. This configuration supports textile production workflows using digital printing technology.
- Application: digital textile cutting
- Material type: printed polyester fabric
- Typical users: textile printing factories
Vision Laser Cutting Machine For Footwear Upper
Vision laser cutting machine systems cut footwear upper materials by detecting printed outlines and guiding contour cutting. This configuration supports automated cutting of shoe upper components used in footwear production.
- Application: footwear upper components
- Material type: textile or PU leather
- Typical users: footwear manufacturers
Vision Laser Cutting Machine Versions Compared Side-by-Side
Workflow structure determines how the vision laser cutting machine handles materials during production. Feeding method affects automation level, labor requirements, and production throughput.
Roll To Roll Vision Laser Cutting Machine
Roll to roll vision laser cutting machine systems process continuous textile rolls using automatic feeding and camera scanning. This configuration is used in high-volume printed textile production lines.
- Material format: roll textile
- Feeding system: roll to roll feeding
- Typical users: textile production factories
Conveyor Vision Laser Cutting Machine
Conveyor vision laser cutting machine systems transport materials on a conveyor table while cameras detect contour paths. This configuration allows continuous production of printed fabric components.
- Material transport: conveyor belt
- Workflow: continuous cutting
- Typical users: garment production lines
Sheet Fed Vision Laser Cutting Machine
Sheet fed vision laser cutting machine systems process flat sheets of printed material by scanning contours and cutting parts individually. This configuration is used when materials are supplied in panels rather than rolls.
- Material format: sheet panels
- Cutting method: contour recognition
- Typical users: textile processing workshops
Auto Feeding Vision Laser Cutting Machine
Auto feeding vision laser cutting machine systems load materials automatically before contour detection and cutting. This configuration reduces manual loading time in production environments.
- Feeding method: automatic feeding system
- Workflow: automated loading
- Typical users: high-volume garment factories
Dual Head Vision Laser Cutting Machine
Dual-head vision laser cutting machine systems use two laser heads to cut multiple parts simultaneously after contour recognition. This configuration increases cutting throughput in textile production.
- Laser heads: dual cutting heads
- Production mode: parallel cutting
- Typical users: textile OEM manufacturers
Multi Head Vision Laser Cutting Machine
Multi head vision laser cutting machine systems operate several laser heads on a shared working area to process large batches of contour shapes simultaneously. This configuration supports large-scale production lines.
- Laser heads: multiple cutting heads
- Production scale: high throughput
- Typical users: large textile factories
Vision Laser Cutting Machine Configurations Buyers Should Know
Laser power determines cutting speed, material thickness capability, and production capacity in a vision laser cutting machine. Selecting the correct wattage ensures stable cutting quality and throughput.
80W Vision Laser Cutting Machine
80W vision laser cutting machine configurations process thin textile materials where moderate cutting speed and precision are required. This configuration is commonly used in label or light fabric production.
- Laser type: CO₂ laser tube
- Power range: 80W
- Typical users: label manufacturers
100W Vision Laser Cutting Machine
100W vision laser cutting machine configurations balance cutting speed and material thickness capacity in textile contour cutting. This configuration is widely used in garment production lines.
- Laser type: CO₂ laser tube
- Power range: 100W
- Typical users: garment factories
130W Vision Laser Cutting Machine
130W vision laser cutting machine configurations support higher cutting speed for thicker textile materials or higher production throughput. This configuration is used in medium-scale textile manufacturing.
- Laser type: CO₂ laser tube
- Power range: 130W
- Typical users: textile OEM factories
150W Vision Laser Cutting Machine
150W vision laser cutting machine configurations provide increased cutting speed and processing capacity for large production batches. This configuration supports continuous industrial textile production.
- Laser type: CO₂ laser tube
- Power range: 150W
- Typical users: high-volume textile manufacturers
Why Our Vision Laser Cutting Machine Stands Apart
Vision laser cutting machine applications in textile printing, garment production, and label manufacturing require stable contour recognition and continuous cutting workflow. Kasu provides vision laser cutting machine configurations with industrial camera positioning, conveyor production structures, and configurable laser power ranges. These systems are supplied to distributors, OEM manufacturers, and system integrators requiring automated contour cutting for printed textile and digital printing production lines.
KD1814-S1 Single Head Vision Laser Cutting Machine
- Working area: 1800 × 1400 mm
- Laser type: Glass CO₂ laser tube
- Laser power: 80/100/130/150W (optional)
- Laser head: Single head
- Speed: <1000 mm/s
- Positioning accuracy: ±0.1 mm
KX1810-F2 CCD Laser Cutter (Fixed Table)
- Working area: 1800 × 1000 mm
- Laser heads: Double head
- Laser power: 80–150W optional
- Vision system: CCD camera
- Advantage: higher output for repeated patterns
- Applications: textiles, printed panels, soft packaging
What's Included With Your Vision Laser Cutting Machine？ — Beyond Hardware
Vision laser cutting machine projects often involve integration with digital textile printing, garment panel production, and automated contour cutting workflows. KASU supports distributors, OEM manufacturers, and system integrators by providing configurable vision laser cutting machine systems, controlled production capability, and cooperation models that reduce technical and delivery risks during equipment deployment.
Manufacturing And Configuration Capability
Vision laser cutting machine production at KASU includes configurable working widths, vision camera systems, laser power ranges, and workflow structures. Manufacturers and system integrators can select conveyor tables, roll feeding modules, or multi-head configurations based on textile production requirements. Configuration flexibility allows the vision laser cutting machine to match printed fabric cutting processes used in garment and label production.
Risk Reduction And Delivery Reliability
Industrial buyers selecting a vision laser cutting machine require predictable delivery timelines and verified machine performance. KASU maintains controlled manufacturing procedures, documented component sourcing, and machine testing before shipment. These measures reduce production interruption risks for distributors and OEM manufacturers integrating a vision laser cutting machine into existing textile processing lines.
Cooperation Model And Partner Support
Vision laser cutting machine projects supplied by KASU support cooperation with distributors, OEM factories, and system integrators developing textile automation solutions. Partners receive configuration guidance, production documentation, and technical information needed to deploy a vision laser cutting machine within garment manufacturing or digital textile printing environments.
Customer Stories: Vision Laser Cutting Machine on the Shop Floor
Vision laser cutting machine projects supplied by KASU are used in textile printing factories, garment OEM production lines, and label manufacturing workshops. Distributors and system integrators select these vision laser cutting machine systems for contour recognition stability, repeat positioning accuracy, and compatibility with printed textile production workflows.
Pre-Purchase Questions Vision Laser Cutting Machine Buyers Ask Us
How Does A Vision Laser Cutting Machine Detect Printed Contours?
A vision laser cutting machine uses an industrial camera to scan printed patterns or registration marks on textile materials. The vision software identifies contour edges and converts them into cutting paths. The laser system then follows the detected contour to cut printed fabric or labels with consistent positioning accuracy.
What Materials Can A Vision Laser Cutting Machine Process?
A vision laser cutting machine is used for materials containing printed contours or graphics. Common materials include printed polyester fabric, sublimation textile, embroidery patches, woven labels, heat transfer film, non-woven fabric, and PU leather used in garment and accessory production.
What Is The Difference Between A Vision Laser Cutting Machine And A Standard Laser Cutter?
A standard laser cutter follows predefined cutting paths from design files. A vision laser cutting machine detects printed contours using a camera system and automatically generates cutting paths. This function is required when cutting printed textiles where graphic alignment determines the final product shape.
What Factors Should Distributors Consider When Selecting A Vision Laser Cutting Machine?
Distributors evaluate camera resolution, recognition accuracy, working width, feeding structure, and laser power configuration when selecting a vision laser cutting machine. These parameters determine whether the machine matches the printed textile format, production throughput, and contour cutting precision required by customers.
Can A Vision Laser Cutting Machine Integrate With Textile Production Lines?
A vision laser cutting machine can be configured with conveyor systems or roll feeding modules to connect with textile printing and garment production workflows. Integration allows printed fabrics or labels to move directly from printing processes to contour cutting operations.
What Laser Power Range Is Commonly Used In A Vision Laser Cutting Machine?
Most vision laser cutting machine systems for textile processing use CO₂ laser tubes in the 80W–150W range. Power selection depends on fabric thickness, required cutting speed, and production volume within printed textile manufacturing lines.
Adjacent Machines for Vision Laser Cutting Machine Buyers
If your production line processes printed textile, labels, or embroidery patches, you may also require other contour cutting equipment compatible with a vision laser cutting machine. Related systems include CCD laser cutting machines, conveyor laser cutters, and roll-to-roll laser cutting machines designed for continuous textile production. Contact the KASU team to evaluate the suitable equipment configuration for your contour cutting workflow.
-
CCD Laser Cutter
Explore CCD Laser Cutter for camera registration and accurate cutting around printed graphics, giving buyers a relevant complementary option when comparing solutions for Vision Laser Cutting Machine. -
Digital Laser Cutting Machine
Explore Digital Laser Cutting Machine for camera registration and accurate cutting around printed graphics, giving buyers a relevant complementary option when comparing solutions for Vision Laser Cutting Machine. -
Laser Cutter With Camera
Explore Laser Cutter with Camera for camera registration and accurate cutting around printed graphics, giving buyers a relevant complementary option when comparing solutions for Vision Laser Cutting Machine.
Technical Support for Vision Laser Cutting Machine
Selecting a vision laser cutting machine requires evaluation of camera resolution, contour recognition software, laser power configuration, and material format. Our technical guides explain contour cutting principles, printed textile processing parameters, and production workflow integration. Visit the KASU technical blog to review application guides and configure a vision laser cutting machine for your textile production requirements.
