Growing energy prices are quietly eroding the margins of fabrication shops worldwide. You might invest in a high-speed laser cutter only to find your monthly utility bill rivals your equipment lease payment. This “energy shock” often stems from a misunderstanding of how industrial lasers convert electricity into photon pressure. For distributors and OEMs, failing to account for total power draw leads to inaccurate ROI projections and strained client relationships. At KASU, we believe transparency in energy physics is the foundation of a profitable partnership.
How Much Energy Does an Industrial Laser Cutter Actually Consume?
An industrial laser cutter’s energy consumption typically ranges from 5 kW to 50 kW, depending heavily on the laser source technology and the efficiency of ancillary components like chillers. While a 3kW fiber laser source itself might draw specific power, the total system “wall-plug” consumption includes the motion system, exhaust fans, and cooling units.

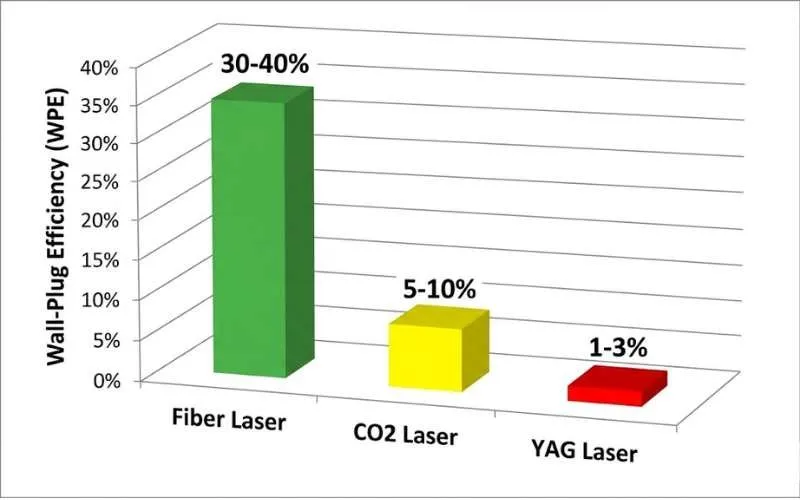

To understand the scale, we must look at Wall-Plug Efficiency (WPE). This metric measures how much electrical input is converted into optical output. Modern fiber lasers are significantly more efficient than legacy CO2 systems.
Energy Efficiency Comparison by Technology
| Laser Technology | Wall-Plug Efficiency (WPE) | Average Total System Draw (3kW) | Estimated Annual Cost (2,000 hrs) |
|---|---|---|---|
| Fiber Laser | 30% – 40% | 10 – 15 kW | $3,000 – $4,500 |
| CO2 Laser | 5% – 10% | 30 – 40 kW | $9,000 – $12,000 |
| YAG / Disk | 1% – 3% | 50+ kW | $15,000+ |
Note: Calculations based on an average industrial electricity rate of $0.15/kWh. Figures include chiller and exhaust loads.
The Three Pillars of Industrial Power Draw
As an engineer at KASU, I often see distributors focus solely on the “kilowatt” label on the laser generator. This is a mistake. To provide an accurate Total Cost of Ownership (TCO) to your customers, you must break down the three primary consumers of power within a machine.
1. The Laser Source (The Generator)
The source is the heart of the machine. According to research on industrial laser efficiency, fiber lasers utilize bank-mounted diodes that require far less cooling and electrical excitation than gas-filled CO2 tubes. This transition alone can reduce a factory’s carbon footprint by over 60%.
2. The Cooling System (The Chiller)
The chiller is often the “silent killer” of efficiency. For every watt of laser light produced, the system generates waste heat that must be removed. In a CO2 system with 10% efficiency, 90% of the energy becomes heat. This requires massive, energy-hungry chillers. Fiber lasers require roughly 50% less cooling capacity for the same output power, significantly lowering the aggregate Amperage requirement.
3. Ancillary Equipment
- Exhaust Fans: Large-scale filtration units for OSHA-compliant air quality can draw 3-7 kW alone.
- Servo Motors: High-acceleration gantry systems require peak bursts of energy, though their idle consumption is minimal.
- Compressed Air: If your client uses “shop air” instead of nitrogen or oxygen, the air compressor’s energy draw must be added to the laser’s operational cost.
KASU Technical Matrix: Power Requirements for OEMs
For system集成商 (System Integrators) and OEMs, planning the electrical infrastructure is critical. Beyond raw wattage, we must consider the Power Factor (PF). Most industrial utilities penalize plants with a PF below 0.90. Modern KASU Fiber Series machines integrate active power factor correction to ensure near-unity efficiency.
| Model Capacity | Input Voltage (3-Phase) | Peak Power Draw (kW) | Suggested Circuit Breaker (A) | Power Factor (PF) |
|---|---|---|---|---|
| KASU 1.5kW Fiber | 380V / 50Hz | 8.5 kW | 32A | > 0.95 |
| KASU 3.0kW Fiber | 380V / 50Hz | 16.0 kW | 60A | > 0.96 |
| KASU 6.0kW Fiber | 380V / 50Hz | 32.0 kW | 100A | > 0.96 |
Why Distributors Must Sell “Efficiency per Meter”
In the B2B world, the machine’s price tag is a one-time hurdle; the energy bill is a monthly burden. I’ve helped our European distributors win tenders not by being the cheapest, but by proving a lower cost-per-cut.
When you cut a 10mm stainless steel plate, a 6kW laser might draw more instantaneous power than a 3kW unit, but it completes the cut four times faster. Consequently, the total Kilowatt-hours (kWh) consumed per meter is lower on the high-power machine. This is the paradox of industrial efficiency: Speed is often the best way to save energy.
Furthermore, promoting energy-efficient machinery aligns with the EU’s Ecodesign Directive, which is becoming a mandatory check-box for large-scale industrial buyers and government contracts. In regions like the US, businesses can often leverage Section 179 tax deductions for energy-efficient equipment upgrades.
Lessons from the Field: 4 Energy Mistakes to Avoid
In my 12 years of commissioning machines for KASU, I’ve seen these four errors repeat across five continents:
- Improper Phase Balancing: In many factories, the laser is slapped onto the nearest power rail without checking phase loads. This causes voltage drops that trigger “Under Voltage” alarms, leading to wasted material and restarted jobs.
- Oversized Chillers: Some OEMs believe “more cooling is safer.” An oversized chiller cycles on and off too frequently, leading to massive inductive current spikes and premature compressor failure.
- Leaking Pneumatics: I once visited a plant where the laser was “using too much power.” We found the air compressor was running 24/7 because of a $5 leaking hose. The laser was fine; the infrastructure was bleeding money.
- Ignoring Regional Voltage Stability: In developing markets, fluctuating grids force lasers to work harder to maintain beam stability. I always recommend voltage stabilizers for these regions to protect the internal power supply units (PSUs) from over-heating.
The Future of Sustainable Fabrication
The narrative that laser cutting is an energy-intensive “black hole” is outdated. With the adoption of Fiber technology and intelligent power-management software—standard on all KASU Laser Cutters—the energy cost per part has reached an all-time low. By focusing on high WPE sources and optimized ancillary components, manufacturers can achieve a faster ROI while staying compliant with global environmental standards like ISO 14001.
