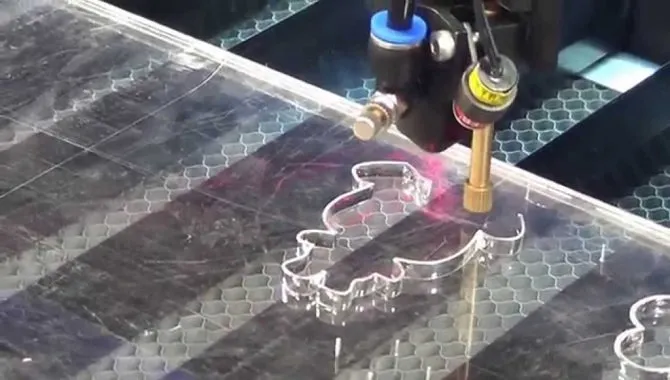

Can You Laser Cut Acrylic?

Acrylic¹ is a popular material for a variety of projects, from signage to jewelry making. But can it be cut precisely using a laser? This question comes up often among DIY enthusiasts and manufacturers. Let’s explore this topic and provide a comprehensive answer.

Yes, you can laser cut acrylic. It offers clean cuts and smooth edges, making it an ideal choice for precise projects. With the right machine and settings, you can achieve professional-quality results.

Laser cutting acrylic can be straightforward, but knowing the specifics about the material, machines, and techniques will ensure success. Read on as I answer the most common questions about laser cutting acrylic.

Is Plexiglass Acrylic, And Can I Laser Cut Plexiglass?

Plexiglass and acrylic are essentially the same material, often used interchangeably. Both refer to a transparent, durable plastic called polymethyl methacrylate (PMMA). This material is widely known for its versatility and ease of use.

Yes, plexiglass is acrylic, and it can be laser cut. However, the quality of the cut depends on whether the acrylic is cast or extruded.

Cast Acrylic vs. Extruded Acrylic

Understanding the type of acrylic is crucial when laser cutting:

• Cast Acrylic: Ideal for laser cutting and engraving. It produces clean edges and frosted engravings, making it perfect for high-quality projects.
• Extruded Acrylic: While cheaper, it melts more easily during cutting and may result in uneven edges. It’s less suitable for intricate designs.

When planning a laser cutting project, always choose cast acrylic for the best results. It ensures clean cuts, smooth edges, and minimal melting issues.

What Is The Best Laser For Cutting Acrylic?

Selecting the right laser for cutting acrylic is essential for achieving precise, clean cuts and smooth edges. The laser type, power, and specifications all play a significant role in the cutting process.

CO2 lasers are the best for cutting acrylic due to their high precision, versatility, and ability to handle a wide range of thicknesses. Industrial-grade CO2 lasers are particularly effective for faster processing and cutting thicker materials.

Why CO2 Lasers Are Ideal For Cutting Acrylic

CO2 lasers operate at a wavelength of 10.6 µm, which is highly effective for cutting and engraving acrylic. They provide excellent thermal control, ensuring smooth edges and reducing the risk of material damage.

Advantages Of Industrial-Grade CO2 Lasers

For large-scale or high-precision applications, industrial-grade CO2 lasers offer significant benefits:

1. High Power Output: Machines with power levels ranging from 100W to 500W or more can cut acrylic up to 25mm thick in a single pass.
2. Faster Cutting Speeds: Industrial-grade systems are optimized for speed, allowing for higher throughput, which is essential for mass production.
3. Larger Work Areas: Many industrial machines feature large bed sizes, ranging from 1300×900mm to 1300×2500mm, suitable for processing oversized acrylic sheets.
4. Advanced Cooling Systems: These machines often include built-in water cooling systems, ensuring consistent performance even during prolonged operation.
5. Precision And Automation: Equipped with advanced motion systems and automated settings, industrial lasers maintain tight tolerances and reduce the need for manual adjustments.

Transmission Systems: Belt Drive, Gear Rack, And Ball Screw

The transmission system in a laser machine impacts its speed, precision, and suitability for specific customer needs. Let’s compare the three most common systems:

1. Belt Drive

• Characteristics: Flexible and lightweight; commonly used in entry-level and mid-range CO2 laser machines.
• Advantages: High-speed movement, affordable, and easier to maintain.
• Limitations: Lower precision compared to gear rack or ball screw systems.
• Ideal For: Customers focusing on engraving or cutting thin acrylic (up to 10mm) at higher speeds, such as in small businesses or creative industries.

2. Gear Rack (Rack-and-Pinion)

• Characteristics: Rigid and durable; used in mid-range to high-end laser systems.
• Advantages: Excellent balance of speed and precision, suitable for larger bed sizes. Can handle heavy workloads with consistent accuracy.
• Limitations: Slightly more expensive than belt systems; requires periodic maintenance to ensure alignment.
• Ideal For: Medium to large-scale production where speed, durability, and the ability to cut thicker acrylic (up to 20mm) are important.

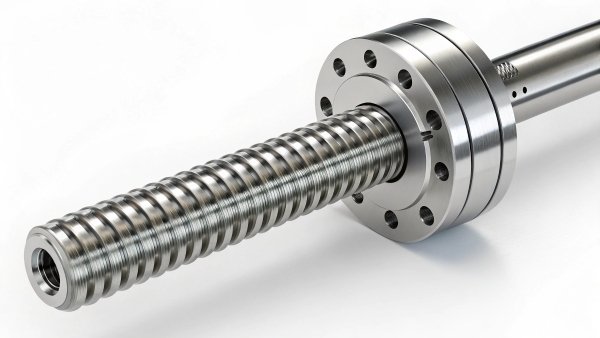

3. Ball Screw

• Characteristics: High-precision mechanical transmission system; commonly used in industrial-grade laser machines.
• Advantages: Exceptional precision and stability, capable of handling very thick acrylic (up to 25mm). Perfect for detailed projects requiring tight tolerances.
• Limitations: Slower cutting speeds compared to belt or gear rack systems. Higher cost and maintenance requirements.
• Ideal For: Industrial customers needing highly precise cuts on thick acrylic for demanding applications, such as signage, automotive, or architectural projects.

Comparing CO2 Lasers By Transmission System

Choosing The Right Laser For Your Needs

When selecting a laser, consider both the power and transmission system based on your specific requirements. For hobbyists and small businesses, a belt-drive laser with 60-150W is a cost-effective choice. For medium-to-large production, a gear rack system with 150W-300W balances speed and precision. For industrial applications requiring extreme precision and the ability to cut thick acrylic, opt for a ball screw system with 300W+ power.

By matching your laser machine’s specifications and transmission system to your project needs, you can achieve efficien

Are Fumes From Laser Cutting Acrylic Toxic?

Fume management is critical when laser cutting.

Yes, fumes from laser cutting acrylic can be toxic if inhaled over time. Proper ventilation or air filtration is necessary.

How To Manage Fumes:

• Install a fume extractor or connect your machine to an exhaust system.
• Work in a well-ventilated area.

Exposure to acrylic fumes in small amounts is usually harmless, but long-term inhalation can cause respiratory issues.

Is It Safe To Laser Cut Acrylic?

Safety is a key concern when working with laser cutting machines, especially when handling materials like acrylic that produce fumes during processing. Proper precautions ensure both the safety of the operator and the surrounding environment.

Yes, it is safe to laser cut acrylic as long as appropriate ventilation, protective measures, and air filtration systems are in place.

Common Safety Measures For Laser Cutting Acrylic

1. Ventilation Systems: A basic exhaust system is crucial to remove fumes from the cutting area. Most laser machines come equipped with fans and ducts to direct fumes outdoors.
2. Protective Enclosures: Machines with protective covers or enclosures help contain fumes, prevent debris from escaping, and protect operators from accidental exposure to laser beams.
3. Laser Safety Goggles: If your machine has an open design, wearing goggles specific to the laser’s wavelength is essential to avoid eye damage.

Enhancing Safety With Air Filtration And Indoor Emission Options

While standard ventilation systems are sufficient for many setups, adding air purification systems can further improve safety and convenience, especially for indoor operations where outdoor exhaust isn’t feasible.

Advanced Air Filtration Systems

Modern air filtration systems include multi-stage filters designed to capture smoke, fine particles, and odors:

1. HEPA Filters: Trap small particles and dust created during laser cutting.
2. Activated Carbon Filters: Absorb harmful fumes and odors, particularly from materials like acrylic.
3. Pre-Filters: Capture larger particles to extend the lifespan of HEPA and carbon filters.

These systems can clean the air to a level safe for indoor recirculation, eliminating the need for an outdoor exhaust.

Comparison: Standard Ventilation vs. Air Purification Systems

Ensuring Safe Indoor Operation

For businesses or hobbyists working in enclosed spaces without access to outdoor exhaust, installing a high-quality air filtration system can make laser cutting acrylic safe and odor-free. It also aligns with environmental regulations in areas where direct outdoor exhaust is restricted.

Fire Safety Considerations

Acrylic is flammable, so it’s important to follow these additional precautions:

• Air Assist System: Directs a stream of air to the cutting area to reduce heat and prevent flare-ups.
• Regular Maintenance: Keep the cutting bed clean of acrylic debris, which can ignite during cutting.
• Fire Extinguisher: Always have a fire extinguisher rated for electrical and chemical fires nearby.

By combining proper ventilation, protective measures, and air filtration technology, you can ensure that laser cutting acrylic is not only safe but also suitable for indoor environments.

What Setting Do I Use To Laser Cut Acrylic?

Achieving precise and clean cuts on acrylic requires the correct laser settings. These settings depend on the thickness of the acrylic, the type of laser machine, and the desired outcome. Using the right combination of power, speed, and frequency ensures that the edges are smooth and free of burns or melting.

The ideal settings for laser cutting acrylic include moderate power (60-80%), slower speed (10-20mm/s), and low frequency to reduce heat buildup. Always adjust these parameters based on the thickness of the acrylic.

How Many Watts Do I Need For Laser Cutting Acrylic?

The power of your laser determines how efficiently it can cut through acrylic. More wattage allows for cutting thicker materials faster, but it’s important to match the power to your project needs.

Recommended Laser Wattage:

• 40-60W: Suitable for engraving and cutting thin acrylic (up to 5mm).
• 60-100W: Ideal for cutting medium-thickness acrylic (5-10mm).
• 100W+: Required for cutting thicker acrylic (10-25mm) efficiently.

Why Laser Power Matters:

1. Higher wattage cuts faster: Reduces the time required for thicker sheets.
2. Low wattage is better for engraving: Prevents excessive material removal or burns.
3. Consistency: A powerful laser ensures clean edges even on challenging cuts.

When in doubt, choose a laser with slightly more power than your current needs to allow for future flexibility in projects.

How Thick Of Acrylic Can You Laser Cut?

The maximum acrylic thickness your laser can handle depends on its wattage, cutting speed, and lens configuration. Here’s a general guideline:

Using High-Focus Lenses For Thick Acrylic

For cutting acrylic thicker than 10mm, a high-focus lens (longer focal length) is highly recommended. These lenses improve cutting performance by providing:

• Vertical Cutting Edges: A longer focal length ensures the laser beam remains straight, minimizing taper on the cut edge.
• Deeper Penetration: Focused energy allows for a clean cut through thicker materials.
• Better Heat Management: Reduced risk of overheating at the cutting zone.

High-focus lenses are especially useful for industrial-grade projects where precision and clean, vertical edges are critical.

Tips For Cutting Thick Acrylic:

1. Use Multiple Passes: For very thick sheets, consider multiple lower-power passes to avoid excessive heat buildup.
2. Air Assist: Helps cool the material and remove debris for a smoother cut.
3. Focus Adjustment: Ensure the laser is focused precisely at the material surface.

Adjusting Laser Settings For Clean Cuts

Once you know your laser power and material thickness, fine-tuning settings is critical. Here’s how to adjust key parameters:

1. Power

• Higher power ensures deeper cuts but generates more heat.
• Start at 60-80% and increase only if the laser isn’t cutting through the material.

2. Speed

• Slower speeds result in cleaner cuts by giving the laser more time to penetrate the acrylic.
• Use a speed of 10-20mm/s for most cutting applications.

3. Frequency (PPI or Hz)

• Lower frequencies reduce heat accumulation and minimize melting.
• Set between 400-500Hz for standard acrylic cutting.

Example Settings For Different Acrylic Thicknesses

Choosing the right settings for laser cutting acrylic ensures clean cuts and extends the lifespan of your laser equipment. It’s important to avoid running the laser tube at full power continuously, as this can significantly reduce its lifespan. A general rule is to keep the power setting below 80% of the laser tube’s maximum capacity.

Key Notes:

1. Power Levels: Avoid exceeding 80% of your laser tube’s maximum power. For example, if you have a 100W laser, set the power to no more than 80W to preserve the tube’s longevity.
2. Speed: Slower speeds allow the laser more time to penetrate thicker acrylic, resulting in cleaner cuts.
3. Frequency: Adjusting frequency helps manage heat buildup. For thicker acrylic, lower frequencies (300-400 Hz) are ideal.
4. Air Assist: Always keep air assist on to blow away debris and cool the material, reducing burn marks.
5. Lens Type: Use a high-focus lens for thicker acrylic (10mm or more) to maintain vertical cutting edges and avoid tapered results.

By balancing power settings with proper speed and frequency, you can optimize cutting performance while extending the lifespan of your laser equipment.

Testing And Calibration

Before starting your final project, test the settings on a scrap piece of acrylic:

1. Perform Test Cuts: Vary the power, speed, and frequency to find the optimal combination.
2. Check The Edge Quality: Look for smooth, clear edges without burns or melting.
3. Refine Focus: Use a high-focus lens for thicker materials to achieve vertical, polished edges.

By using the right settings and equipment, including high-focus lenses for thick acrylic, you can achieve professional-quality results that meet the demands of even the most intricate projects.

Why Is My Laser Not Cutting Acrylic?

When your laser struggles to cut acrylic, it can be frustrating and time-consuming to troubleshoot. There are many potential reasons why this issue occurs, ranging from mechanical problems to incorrect settings. Identifying the root cause will help you restore optimal cutting performance.

Common reasons include misaligned optics, damaged lenses, expired laser tubes, improper settings, or material mismatches. Each of these factors can prevent the laser from effectively cutting through acrylic.

Common Causes And Solutions²

1. Misaligned Laser Path

• Problem: The laser beam is not properly aligned with the mirrors and lens, causing it to lose power before reaching the material.
• Solution: Perform a laser alignment check. Adjust the mirrors to ensure the beam travels straight and hits the lens center.

2. Damaged Or Dirty Optics

• Problem: A cracked focus lens or dirty mirrors reduce the efficiency of the laser beam.
• Solution: Inspect the focus lens and all mirrors. Clean them with appropriate materials or replace them if damaged.

3. Expired Laser Tube

• Problem: CO2 laser tubes have a lifespan, typically low power like 60W tube lasting 1,500-3,000 hours, high power like 150W lasting 6,000-8,000 hours. A worn-out tube produces less power, leading to cutting issues.
• Solution: Test the laser’s output power using a power meter. If the output is significantly lower than the tube’s rated capacity, replace the tube.

4. Incorrect Parameter Settings

• Problem: The power, speed, or frequency settings are not optimized for the material thickness.
• Solution: Adjust settings to match the material:
  • Increase power up to 80% of the laser tube’s capacity.
  • Reduce cutting speed for thicker materials.
  • Adjust frequency (Hz) to prevent melting or incomplete cuts.

5. Material Too Thick Or Lens Mismatch

• Problem: The acrylic sheet is too thick for the laser’s power, or the focus lens isn’t suitable for thick materials.
• Solution:
  • Check the acrylic thickness and ensure your laser power matches the requirement (e.g., 100W+ for 10mm or thicker acrylic).
  • Use a high-focus lens for better penetration on thick sheets.

6. Cutting Speed Too High

• Problem: If the laser moves too quickly, it doesn’t have enough time to fully penetrate the material.
• Solution: Lower the cutting speed to give the laser sufficient time to cut through the acrylic.

Troubleshooting Checklist

By systematically checking each potential cause and applying the appropriate solutions, you can quickly identify why your laser isn’t cutting acrylic and ensure smooth operation for future projects.

How Do You Prevent Burn Marks When Laser Cutting Acrylic?

Acrylic is known for its clean and polished edges when laser cut, thanks to the heat-based cutting process that melts the material rather than mechanically cutting it. However, if the acrylic contains impurities, it can result in yellowing or burn marks on the edges. Preventing these imperfections requires the right materials, settings, and techniques.

To avoid burn marks, use high-quality acrylic, optimize your laser settings, and employ protective measures such as masking or air assist.

Key Factors To Prevent Burn Marks

1. Use High-Quality Acrylic

• Issue: Low-quality acrylic may contain impurities or additives that discolor when exposed to heat.
• Solution: Always use pure, cast acrylic from reputable suppliers. Cast acrylic melts cleanly and produces polished edges without yellowing.

2. Optimize Laser Settings

• Issue: Incorrect power, speed, or focus settings can cause overheating, leading to burn marks.
• Solution:
  • Power: Keep power below 80% of the laser tube’s maximum capacity to maintain control over the heat.
  • Speed: Use moderate to slow speeds to allow precise cutting without excessive heat buildup.
  • Focus: Ensure the laser is perfectly focused on the material surface.

3. Apply Masking

• Issue: The surface of the acrylic may discolor or develop residue during cutting.
• Solution: Apply a protective masking tape to both sides of the acrylic. This prevents direct contact with heat and absorbs residue. Remove the tape after cutting for a clean finish.

4. Utilize Air Assist

• Issue: Heat and debris can accumulate at the cutting edge, causing marks or discoloration.
• Solution: Use the laser cutter’s air assist feature to blow away heat and debris during cutting. This keeps the edges cool and prevents residue from settling.

Additional Tips For Clean Cuts

• Maintain Clean Optics: Regularly clean the laser’s lens and mirrors to ensure maximum cutting efficiency and minimal heat distortion.
• Test On Scrap Material: Before cutting the final piece, test your settings on a scrap piece of acrylic to identify any potential issues.
• Choose The Right Material Thickness: Ensure the acrylic thickness matches your laser’s power capability to avoid incomplete cuts or excessive heat exposure.

Troubleshooting Burn Marks

By using pure cast acrylic, optimizing your laser’s settings, and employing protective measures like masking and air assist, you can prevent burn marks and achieve professional-quality results. These steps ensure that your projects have the clean, polished edges that make laser-cut acrylic so appealing.

Do I Leave The Paper On Acrylic When Laser Cutting?

Acrylic sheets often come with protective paper coatings.

Yes, leaving the paper on helps protect the surface from burns and scratches.

Tips For Handling Protective Paper:

• Ensure the laser settings account for the extra layer.
• Remove the paper after cutting for a clean finish.

If the paper is damaged, replace it with masking tape for the same protective effect.

What Are The Disadvantages Of Laser Cutting Acrylic?

Laser cutting is an efficient and precise method for working with acrylic, but it does have some limitations. While it produces clean edges and intricate designs, certain challenges arise depending on the material thickness, cost, and operational requirements.

The disadvantages of laser cutting acrylic include limitations in cutting very thick sheets, potential for toxic fumes, high equipment costs, and the need for proper ventilation and maintenance.

Key Disadvantages Of Laser Cutting Acrylic

1. Limitations With Thick Acrylic

• Issue: Acrylic sheets thicker than 25mm are difficult to cut cleanly with a laser.
• Why: Laser energy diffuses over thicker material, leading to uneven cuts, excessive heat buildup, and longer processing times.
• Solution: For acrylic sheets over 25mm, it’s recommended to use alternative cutting methods, such as CNC routers or saws, which provide better results for extreme thickness.

2. Toxic Fumes

• Issue: Cutting acrylic generates fumes that can be harmful if inhaled, especially in poorly ventilated environments.
• Why: Acrylic releases volatile organic compounds (VOCs) and odors during cutting, which can pose health risks.
• Solution: Install a high-quality ventilation system or air filtration unit to manage fumes effectively. Activated carbon filters are especially useful for absorbing odors.

3. High Initial Costs

• Issue: Laser cutting machines, particularly industrial-grade models, require a significant upfront investment.
• Why: CO2 laser cutters with higher wattage and larger bed sizes for cutting thick acrylic or handling large-scale projects can be expensive.
• Solution: Consider the long-term benefits, such as precision and reduced labor costs, to justify the investment. For smaller-scale operations, lower-powered machines may suffice.

4. Maintenance Requirements

• Issue: Laser cutters require regular cleaning and maintenance to perform consistently.
• Why: Dust, residue from acrylic, and wear on components like mirrors and lenses can reduce cutting efficiency.
• Solution: Regularly clean and inspect your machine, and replace worn parts to ensure optimal performance.

5. Material And Application Limitations

• Issue: Laser cutting is primarily suitable for flat sheets of cast acrylic.
• Why: Extruded acrylic doesn’t cut as cleanly, and complex three-dimensional cuts are challenging without specialized setups.
• Solution: For non-flat acrylic pieces or other materials, explore alternatives like CNC machining or waterjet cutting.

Summary Table: Laser Cutting Disadvantages

Laser cutting remains an excellent choice for acrylic projects, especially for materials up to 25mm thick. However, understanding its limitations ensures that you select the right tools and methods for more demanding applications.

How Do You Cut Acrylic Without A Laser Cutter?

While laser cutters are popular for their precision and clean edges, there are several other methods to cut acrylic effectively. Depending on the tools available and the complexity of the project, you can use manual or mechanical cutting tools, as well as industrial-grade machines like CNC routers or milling machines.

To cut acrylic without a laser cutter, you can use tools such as CNC routers, table saws, jigsaws, scoring knives, or milling machines. Each method has its advantages and is suitable for different types of projects.

Methods For Cutting Acrylic Without A Laser Cutter

1. CNC Router³

• How It Works: A CNC router uses computer-controlled movements and a spinning bit to cut through materials like acrylic.
• Advantages:
  • Handles thick acrylic (up to 50mm or more).
  • Suitable for complex designs and three-dimensional shapes.
  • High precision with minimal manual effort.
• Disadvantages:
  • Requires programming and setup time.
  • Higher initial cost for the machine.
• Best For: Industrial or professional applications requiring accuracy and the ability to work on thick or large acrylic sheets.

2. Milling Machine

• How It Works: Similar to a CNC router but typically more robust, a milling machine uses rotary cutters to remove material from the acrylic.
• Advantages:
  • Ideal for shaping and detailed cuts.
  • Can handle very thick or hard acrylic materials.
• Disadvantages:
  • Requires experience to operate effectively.
  • Slower than CNC routers for large-scale projects.
• Best For: Small, intricate projects or specialized designs.

3. Table Saw

• How It Works: A table saw uses a circular blade to make straight cuts on acrylic sheets.
• Advantages:
  • Quick and efficient for straight-line cuts.
  • Can handle thicker acrylic sheets (10mm+).
• Disadvantages:
  • Requires polishing or sanding edges for a smooth finish.
  • Not suitable for curved or detailed cuts.
• Best For: Cutting large acrylic panels into smaller, straight-edged pieces.

4. Jigsaw

• How It Works: A handheld tool with a reciprocating blade that can cut acrylic along straight or curved lines.
• Advantages:
  • Affordable and versatile.
  • Good for curved designs or irregular shapes.
• Disadvantages:
  • Edges may require additional sanding or polishing.
  • Can crack or chip acrylic if not used carefully.
• Best For: DIY projects and creative designs requiring curves or shapes.

5. Scoring Knife

• How It Works: A specialized knife scores the acrylic along a straight line, allowing you to snap it cleanly.
• Advantages:
  • Simple and cost-effective for thin acrylic sheets (up to 3mm).
  • No machinery required.
• Disadvantages:
  • Limited to straight cuts and thin materials.
  • Requires steady hands and patience.
• Best For: Small, simple cuts in thin acrylic sheets.

Tips For Cutting Acrylic Without A Laser Cutter

1. Choose The Right Blade: For saws and jigsaws, use blades designed for acrylic or plastic to prevent cracking or chipping.
2. Secure The Material: Clamp the acrylic sheet firmly to prevent movement during cutting.
3. Prevent Overheating: Use a slow cutting speed and avoid excessive friction to minimize melting or edge burns.
4. Polish The Edges: After cutting, sand and polish the edges to achieve a smooth, professional finish.

Comparison Of Cutting Methods

Conclusion

Laser cutting acrylic is a versatile and efficient way to create precise designs. From selecting the right laser to mastering techniques that prevent burn marks, understanding these details ensures success. Whether you’re working with plexiglass or standard acrylic, proper tools and knowledge make all the difference.
