How Laser Cutting Finishes Woven And Printed Labels
Quick answer: A woven label laser cutting machine cuts garment labels — woven, satin, damask and printed — to any outline while heat-sealing the edge, which reduces fraying and unraveling on most weaves. A CCD camera registers each printed label, and the KP1610-F can print and cut in one integrated workflow.
Because the cut heat-seals the edge, there is no need for ultrasonic or folded hems on shaped labels, and even fine lettering and curved outlines stay crisp. The process is die-less, so a new label shape costs nothing to set up.
The camera reads registration marks or the print itself and cuts exactly on position, which keeps logos and care symbols centred across a full roll — the consistency garment factories and label converters need.
Garment decoration specifications shift with each brand programme — see PRINTING United Alliance — which is why a setting proven on one supplier’s material is a starting point on the next one’s, not an answer.
Label Types This Laser Cutter Handles
Labels differ by weave, yarn and finish, and the edge is what the garment brand inspects. Each card states the format, the failure mode that stock is prone to, and how KASU controls it. Results are confirmed on your own label stock before quotation.
Woven & Damask Labels
- Formats: Woven and damask brand labels in polyester or nylon tape, cut to rectangles, curves or shaped outlines.
- Watch out: Fraying depends on the weave, not on the machine. A loose or low-density damask unravels where a tight satin will not, so an edge result proven on one stock does not transfer to the next.
- How we cut it: Heat from the beam fuses the cut edge as it severs, which reduces fraying on most woven stocks — confirmed by a sample cut on your specific tape.
Satin & Printed Labels
- Formats: Printed satin and taffeta labels, size tabs and brand tags, sheet or roll.
- Watch out: The line to follow is the printed one. Satin tape stretches under web tension and print drifts along a roll, so a cut path built from the artwork accumulates error rather than correcting it.
- How we cut it: Camera registration reads each printed label as it arrives, so drift is absorbed label by label instead of building up.

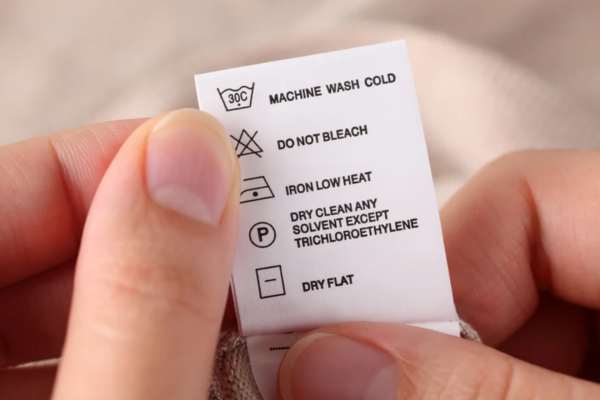

Care & Wash Labels
- Formats: Printed care, composition and size labels in polyester or nylon, usually narrow tape in long runs.
- Watch out: These sit against skin, often in children’s and intimate apparel. A hard bead or a scorched edge is a returns problem, and the corner radius is small enough that mechanical cutting distorts it.
- How we cut it: Non-contact cutting holds small radii; power set low enough to fuse without hardening, verified on your stock.
Ribbon & Heat-cut Tags
- Formats: Grosgrain and satin ribbon, hang tags and folded loop tabs cut to length or to shape.
- Watch out: Ribbon is cut across the weave, which is exactly where it wants to unravel. Straight cross cuts are the easy case; shaped and angled ends are where an untuned setting shows immediately.
- How we cut it: Roll feeding with the edge fused as it cuts, so no separate finishing step is needed on either cut type.
Recommended KASU Laser Machines For Labels
The KP1610-F print-and-cut machine is built for woven and printed labels. For contour cutting of pre-printed label rolls, a CCD camera laser cutter follows the print.
KP1610-F Print & Laser Cut Label Machine
- Working area: 1600 × 1000 mm
- Laser power: 100W CO₂ (130W optional)
- Integrated inkjet printing + laser cutting
- Accuracy: ±0.1 mm
- Optional Honeycomb or Auto-Feeding table
- Suitable for fabrics, textiles, leather, and cardboard
- Ideal for garment, footwear, bags, and pattern making
The Edge Is The Product On A Garment Label
A label is inspected at arm’s length against skin. Fraying, a hard bead or a scorched selvedge is what gets a shipment rejected — not a tenth of a millimetre on the outline. Everything below is aimed at the edge and at keeping it consistent across a roll.
Distributors and OEM partners: KASU offers free OEM/ODM — custom models, your brand colours and logo, multilingual labelling, with no extra service charge. Details on About KASU.
Send Your Own Label Stock For A Free Sample Cut
- Send your actual woven, satin or damask stock. Weave density and yarn type change the edge result more than machine choice does, which is why we confirm on your material rather than quoting from a spec.
- We cut your label shapes and send them back, so the edge is judged by the people who will be judged on it.
- Parameters are recorded per stock and ship with the machine.
- For distributors: label converters buy on repeat. They add a stock, a customer changes a shape, a new brand wants a curved die-less outline — and each change is a reason to call whoever set the machine up. This is a service relationship, not a transaction.
Cutting To A Printed Label Position, Roll After Roll
- Camera registration cuts to where the label actually printed, so weave stretch and print drift along a roll are absorbed instead of accumulating.
- Roll-to-roll feeding keeps a continuous web moving for high-volume garment supply, rather than an operator loading sheets.
- With the line-scan camera option most jobs need neither register marks nor a vector file, so a brand can change a shape between runs without a new cut path.
- Heat-transfer and printed-film labels are a different parameter family — see the heat transfer label cutting machine page.
The Factory That Builds Your Label Cutter
- Founded 2009 · Shanghai R&D · 8,000+ m² Suzhou plant, 15 minutes from the R&D centre.
- 100+ models across 9 series, 70+ owned patents and software copyrights, China High-Tech Enterprise.
- Machines are built in-house rather than traded, so a parameter question reaches the people who built the motion system and specified the extraction.
CE And FDA Certified — Send Your Label Stock For A Free Sample Cut
- CE and FDA certified; 5,000+ customers across 80+ countries.
- Installation guidance, operator training and spare parts supplied from the factory that built the machine.
- Class-1 enclosed configurations available where the destination market requires them.
Woven Label Laser Cutting Machine — Buyer FAQ
Will Woven And Satin Labels Fray After Cutting?
It depends on the weave. The laser heat-seals the cut edge, which reduces fraying and unraveling on most woven, satin and damask labels — even on curved shapes, with no folded hem needed. KASU confirms the result with a sample cut on your specific label stock.
Can It Cut Exactly On A Printed Label Position?
Yes. A CCD camera reads registration marks or the print itself and cuts exactly on position, keeping logos and care symbols centred across the whole roll.
Can It Both Print And Cut Labels?
Yes. The KP1610-F integrates an inkjet printer with laser cutting, so you print and cut labels in one continuous workflow.
Which Label Materials Can It Cut — Woven, Satin, Damask?
Woven, satin, damask, taffeta and printed polyester labels all cut cleanly; the setting is tuned to the stock and proven on a sample first.
How Does It Compare To Ultrasonic Or Die Cutting?
Laser cutting is die-less and seals the edge, so it beats ultrasonic and die cutting on setup cost, shape freedom and short runs while matching them on edge quality.
Can It Run Label Rolls For High Volume?
Yes. Roll-to-roll feeding cuts label rolls continuously, and camera registration keeps every label aligned for high-volume garment supply.
