How Lasers Cut PET Film Precisely
Quick answer: A PET film laser cutting machine cuts thin polyester film to exact contours — for screen protectors, electronics insulation and packaging. Galvo and roll-to-roll options give high-speed, repeatable precision.
Thin film tears and burrs under blades; the laser melts a clean narrow kerf with no contact and no tool wear, though edge quality varies by film thickness and coating — KASU confirms results with a sample cut first. A camera or roll register keeps every part on position across the web.
Die-less cutting takes new device shapes straight from CAD to film parts.
Polyester film is a family, not a single material — grades differ in crystallinity, coating and additive package (see DuPont Teijin Films for the spread in circulation), which is why a setting proven on one supplier’s film is a starting point on the next one’s, not an answer.
PET Film Types And Applications For Laser Cutting
PET film behaves differently by coating, print, adhesive and thickness. Those four decide the parameter window — and two of the most common problems on this material are not laser problems at all. Each card states the format, the failure mode that grade is prone to, and how KASU controls it.
Clear PET Film
- Formats: Uncoated transparent polyester film, typically 12–350 µm, on rolls or sheets.
- Watch out: Thin clear film is light enough that air assist and extraction lift it off the table mid-cut — and film that moves while cutting cuts out of position. It gets blamed on accuracy; it is airflow.
- How we cut it: Vacuum hold-down sized for the film weight, with air assist balanced rather than maximised.

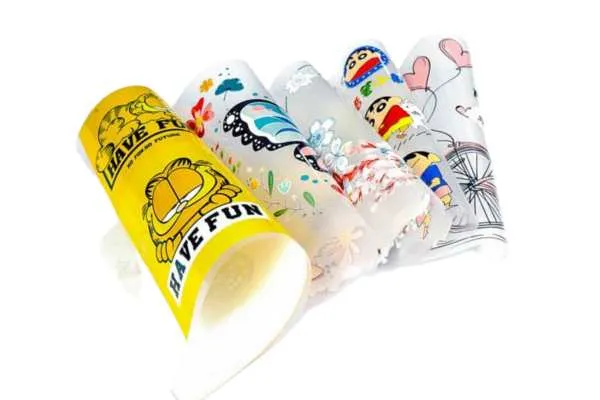

Printed PET Film
- Formats: Pre-printed polyester film for labels, membrane panels, transfer film and decorative overlays.
- Watch out: The line to follow is where the ink actually landed, not where the artwork says it should be. Print registration drifts along a roll, so a cut path built from the file amplifies that drift instead of absorbing it.
- How we cut it: CCD vision registration reads the printed contour on the sheet as loaded; feature-point or mark-point recognition depending on the layout.
Coated PET Film
- Formats: Hard-coat, anti-glare, metallised and primer-coated polyester for displays, membrane switches and overlays.
- Watch out: Two materials in one sheet. The setting that severs the base film cleanly can craze or discolour the coating, and the coating is the face the customer inspects. Coating-side-up and coating-side-down are not the same job.
- How we cut it: Parameters set for the laminate as a whole, with orientation fixed during sample testing and recorded so it ships with the machine.
Adhesive-Backed PET Film
- Formats: Self-adhesive polyester with a release liner, for labels, nameplates and die-less converting.
- Watch out: The adhesive is what limits the setting, not the film. Heat at the kerf can soften it enough to ooze and re-tack, and on kiss-cut work the liner has to survive while the face is fully severed — a narrow window.
- How we cut it: Kiss-cut depth set by power and established on your own liner thickness, with a full-cut recipe recorded separately.
PET Protective Film
- Formats: Low-tack protective and masking film supplied on rolls, often applied to a substrate before cutting.
- Watch out: Static, not airflow. Polyester generates charge readily during unwinding and handling, so sheets cling to each other and to the table. It looks like a hold-down failure but vacuum will not fix it — how the roll is unwound and whether the liner stays on are what matter.
- How we cut it: We ask how your film is unwound and whether it ships with a liner, then set handling and hold-down accordingly.

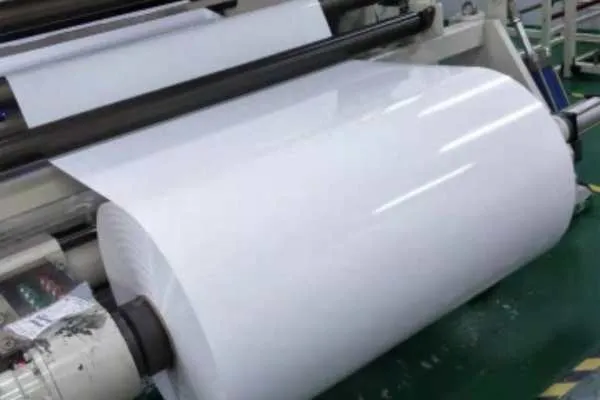

PET Sheet And Roll Film
- Formats: Thicker PET sheet and continuous roll stock for packaging, insulation parts and industrial components.
- Watch out: Thicker polyester melts before it severs if the pass is too slow, leaving a curled or discoloured edge. Reaching for more wattage usually makes it worse rather than better.
- How we cut it: Faster pass at controlled power; roll work runs on a conveyor or auto-feed so the web keeps moving instead of stopping under the beam.
Recommended KASU Laser Machines For PET Film
Compare KASU laser machines for PET film cutting, polyester film processing and roll material production. These models help buyers choose the right working width, feeding system and production capacity based on film thickness, roll width and daily output.
K1814-S2 Double Head Auto Feeding Laser Cutting Machine
A practical PET Film Laser Cutting Machine for roll PET film, polyester film and flexible film materials. The auto-feeding system supports continuous production with stable cutting quality.
K1810-S4 Four Head Laser Cutting Machine
A high-output PET Film Laser Cutting Machine for repeated PET film patterns and large-volume roll processing. The four-head configuration helps maximize productivity while maintaining cutting consistency.
Two Of The Most Common PET Problems Are Not Laser Problems
Film that lifts and film that clings look the same on the table and get blamed on each other. One is airflow, the other is static, and they need different fixes. Getting that diagnosis right before a machine ships is most of what this page is about.
Distributors and OEM partners: KASU offers free OEM/ODM — custom models, your brand colours and logo, multilingual labelling, with no extra service charge. Details on About KASU.
Send Your Own PET Film For A Free Sample Cut
- Send the film you actually run — with its coating, its adhesive and its liner. We cut it on the machine you are quoting and send the parts back.
- Tell us whether the film ships with a release liner and whether it stays on during cutting. That one answer changes the hold-down specification.
- Parameters are recorded per film and ship with the machine, so the operator recalls the setting instead of re-deriving it when the supplier changes.
- For distributors: PET converting customers rarely buy one machine and disappear. They change film supplier, add a coated grade, move into printed work — and each time the parameter window shifts. Whoever holds those records holds the account.
Printed PET Needs A Camera; Clear PET Does Not
- Printed film has to be cut to the printed edge, so print drift is absorbed rather than amplified. Clear and uncoated film does not need registration at all — and paying for vision you will not use is the most common over-spec on this material.
- Roll work runs on a conveyor or auto-feed so the web keeps moving; sheet work runs on a fixed table. We ask which before recommending anything.
- What we will not sell you: if the film turns out to be PVC rather than PET, it goes to a cold knife instead — see PVC Cutting Systems.
The Factory That Builds Your PET Film Cutter
- Founded 2009 · Shanghai R&D · 8,000+ m² Suzhou plant, 15 minutes from the R&D centre.
- 100+ models across 9 series, 70+ owned patents and software copyrights, China High-Tech Enterprise.
- Machines are built in-house rather than traded, so a parameter question reaches the people who built the motion system and specified the extraction.
CE And FDA Certified — Send Your Film For A Free Sample Cut
- CE and FDA certified; 5,000+ customers across 80+ countries.
- Installation guidance, operator training and spare parts supplied from the factory that built the machine.
- Class-1 enclosed configurations available where the destination market requires them.
PET Film Laser Cutting Machine — Buyer FAQ
Can A Laser Cutting Machine Cut PET Film?
Yes. A CO₂ laser cutting machine can cut many PET film materials after sample testing confirms edge quality, fumes and heat deformation.
What PET Film Can Be Laser Cut?
Common materials include clear PET film, colored PET film, printed PET film, polyester film and thin PET sheets. Coatings, adhesives and laminated layers must be checked first.
How Do I Choose A PET Film Laser Cutting Machine?
Choose based on film thickness, roll width, cutting size, pattern accuracy, feeding method and daily production volume.
Is A Conveyor Laser Cutter Suitable For PET Film Rolls?
Yes. A conveyor or auto-feeding laser cutter is suitable for continuous PET film rolls and repeated pattern cutting.
Will Laser Cutting Melt Or Deform PET Film?
PET film may melt, curl or discolor if power, speed, focus or airflow is incorrect. Sample testing helps determine suitable cutting parameters.
Can The Machine Cut Printed PET Film Contours?
Yes. A vision or CCD positioning system can be configured for printed PET film, labels and contour-aligned patterns.
Can KASU Customize The Machine For PET Film Production?
Yes. KASU can configure the working width, feeding system, laser power, exhaust setup, voltage and software according to the production requirements.
What Should I Send Before Getting A Quote?
Send the PET film type, thickness, roll width, coating details, cutting file, tolerance requirement and daily output. This helps KASU recommend the right configuration.
Why Does PET Film Lift Or Cling, And How Is It Held Flat?
Two different causes that get blamed on each other. Lifting is airflow — thin film is light enough that air assist and extraction draw pick it up, and a film that moves mid-cut cuts out of position. Clinging is static, which film generates readily during unwinding and handling, making sheets stick to each other and to the table.
Vacuum hold-down deals with the first; the second is a handling question — how the roll is unwound, and whether the film still has its liner. Tell us whether your film ships with a release liner and whether it stays on during cutting, because that single detail changes the table and feeding recommendation. Shared film behaviour, including melt control at the cut line, is on the TPU laser cutting machine page.
