How CO2 Lasers Cut Mesh Without Fraying
Quick answer: A mesh fabric laser cutting machine cuts open-weave mesh while sealing the cut edge, so the net does not fray or unravel, and it pierces ventilation patterns for activewear and shoes.
Mesh frays the moment it is blade-cut; the laser melt-seals every strand at the edge. Cutting is non-contact, so the open weave is not distorted, and a camera cuts printed mesh on pattern.
Die-less cutting takes new activewear and shoe-mesh patterns straight from CAD to parts.
Polyester and nylon are engineered fibre families rather than single materials — see Toray fibres and textiles — which is why a setting proven on one supplier’s material is a starting point on the next one’s, not an answer.
Mesh Fabric Types And Applications For Laser Cutting
Mesh is mostly open area, and open-area percentage drives the parameter window more than weight or thickness does. Support under the fabric matters as much as the setting above it.
Polyester Mesh Fabric
- Formats: Sports mesh, lining mesh and spacer mesh in polyester, roll or sheet.
- Watch out: A setting proven on solid polyester passes straight through the holes and marks the table, while the yarns get only a fraction of the dwell.
- How we cut it: Parameters set on the actual open structure, with support specified as part of the machine rather than improvised.
Nylon Mesh Fabric
- Formats: Nylon mesh for linings, bags, filtration and technical apparel.
- Watch out: Nylon mesh is often coated or calendered, and the finish behaves differently from the base yarn — which side faces up stops being a detail.
- How we cut it: Coating and orientation confirmed before parameters are set; yarn ends fuse as they part so the structure does not unravel from the cut.
Power Mesh Fabric
- Formats: High-elastane power mesh for shapewear, lingerie and compression panels.
- Watch out: Two problems at once: it is open and it is under tension. It relaxes after cutting and it moves in airflow while being cut.
- How we cut it: Low, constant feed tension with hold-down sized for the weight; parts measured settled. See the lingerie laser cutting machine page.
Tulle Mesh Fabric
- Formats: Fine tulle, net and illusion mesh for bridal, occasion wear and decoration.
- Watch out: The most open material on this page and the most heat-sensitive — there is almost no yarn there to absorb energy, and on ivory any tone shows.
- How we cut it: Lowest power on the page with speed carrying the heat out; see the bridal lace laser cutting machine page.
Shoe Upper Mesh Fabric
- Formats: Engineered and sandwich mesh for footwear uppers, often multi-layer.
- Watch out: Sandwich mesh is three layers with air between them, so the beam behaves differently at each. Cut through cleanly on top and the bottom layer can still be ragged.
- How we cut it: Setting proven on the full construction, not a single face; see the footwear cutting machine page.
Printed Mesh Fabric
- Formats: Printed and sublimated mesh for teamwear panels and display.
- Watch out: Printing on an open structure means ink lands on yarns and not in the holes — low contrast for a camera to work with.
- How we cut it: Lighting and detection threshold tuned per fabric during sample testing; non-vision mode where the layout is a fixed repeat.
Recommended KASU Laser Machines For Mesh
Compare KASU laser machines for mesh fabric cutting, roll textile processing and repeated pattern production. These models help buyers choose suitable feeding systems, laser head quantity and production capacity based on mesh type, roll width, hole structure and daily output.
K1814-S2 Double Head Auto Feeding Laser Cutting Machine
A practical Mesh Fabric Laser Cutting Machine for polyester mesh, nylon mesh, sportswear mesh and roll lining fabric. The auto-feeding system supports continuous cutting, while the double-head setup improves efficiency for repeated mesh patterns.
K1810-S4 Four Head Laser Cutting Machine
A higher-output Mesh Fabric Laser Cutting Machine for batch mesh fabric cutting, shoe upper mesh parts and repeated sportswear panels. The four-head conveyor structure helps factories improve productivity for roll-based mesh materials.
On Open Mesh The Beam Goes Between The Yarns
Mesh is mostly hole. A setting proven on solid fabric passes straight through the open area and hits whatever is underneath, while the yarns themselves get only a fraction of the dwell. Open-area percentage decides the parameter here — not thickness, not weight.
Distributors and OEM partners: KASU offers free OEM/ODM — custom models, your brand colours and logo, multilingual labelling, with no extra service charge. Details on About KASU.
Send Your Own Fabric For A Free Sample Cut
- Send your actual mesh, including the most open one you run. Tulle and power mesh behave nothing like a dense sports mesh.
- We cut your parts and return them so you can check yarn ends as well as outline.
- Parameters recorded per mesh and shipped with the machine.
- For distributors: mesh work sits inside sportswear, footwear and lingerie production — three industries that all buy cutting equipment. One mesh reference opens three conversations.
Backing, Support And What We Check First
- Support under the mesh is specified as part of the machine, not left to the operator to improvise. It is what stops the beam marking the table and the part lifting into the airflow.
- Yarn ends fuse as they part, which is what stops an open structure unravelling from the cut line — confirmed on your own mesh.
- Printed mesh registers to the print with the CCD option; plain mesh needs no registration at all, and we will not quote a camera you will not use.

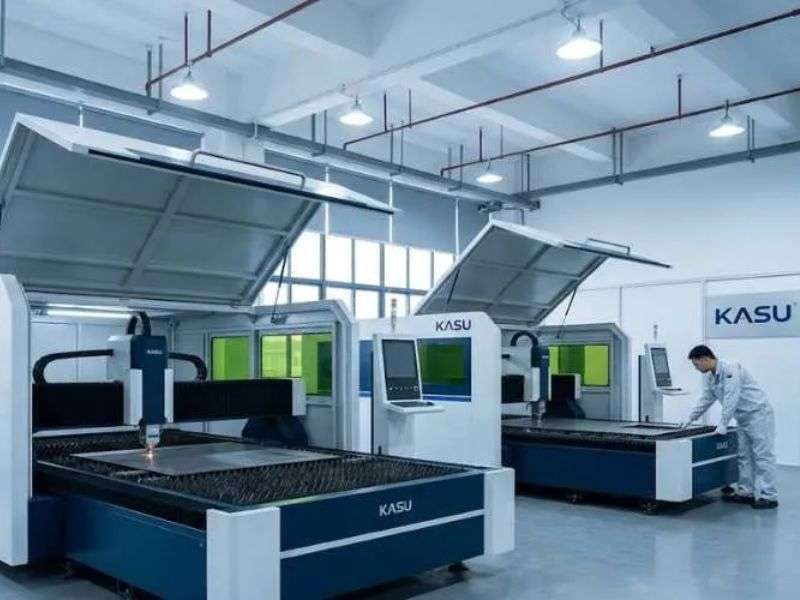

The Factory That Builds Your Mesh Fabric Cutter
- Founded 2009 · Shanghai R&D · 8,000+ m² Suzhou plant, 15 minutes from the R&D centre.
- 100+ models across 9 series, 70+ owned patents and software copyrights, China High-Tech Enterprise.
- Machines are built in-house rather than traded, so a parameter question reaches the people who built the motion system and specified the extraction.
CE And FDA Certified — Send Your Mesh For A Free Sample Cut
- CE and FDA certified; 5,000+ customers across 80+ countries.
- Installation guidance, operator training and spare parts supplied from the factory that built the machine.
- Class-1 enclosed configurations available where the destination market requires them.
Mesh Fabric Laser Cutting Machine — Buyer FAQ
What Is A Mesh Fabric Laser Cutting Machine?
A Mesh Fabric Laser Cutting Machine cuts mesh fabrics, sports mesh, lining mesh and breathable textile materials with a CO₂ laser system.
Can Laser Cutting Machine Cut Mesh Fabric?
Yes. CO₂ laser cutting can cut many mesh fabrics, including polyester mesh, nylon mesh and synthetic sports mesh after sample testing.
What Mesh Fabrics Are Suitable For Laser Cutting?
Common materials include polyester mesh, nylon mesh, sportswear mesh, shoe mesh, lining mesh and breathable textile mesh. Coated or unknown materials should be tested first.
Why Use Laser Cutting For Mesh Fabric?
Laser cutting is non-contact, so it can reduce fabric pulling, shape distortion and edge fraying when the machine settings are matched correctly.
Can One Machine Cut Mesh Fabric From Rolls?
Yes. A conveyor or auto-feeding laser cutting machine is suitable for roll mesh fabric, repeated patterns and continuous textile production.
How Do I Choose A Mesh Fabric Laser Cutting Machine?
Choose based on mesh type, roll width, fabric thickness, hole structure, cutting size, feeding method and daily production volume.
Will Laser Cutting Damage The Mesh Holes?
It may happen if power, speed, airflow or feeding tension is not set correctly. Sample testing helps confirm hole structure stability and edge quality.
Which KASU Machine Is Suitable For Mesh Fabric Cutting?
K1814-S2 is suitable for medium-volume roll mesh cutting. K1810-S4 is better for higher-volume repeated mesh fabric patterns.
Can KASU Customize The Machine For Mesh Fabric Production?
Yes. KASU can configure working width, laser head quantity, feeding system, exhaust setup, voltage and software according to mesh fabric production needs.
Does The Cutting Table Change The Underside Of Mesh Fabric?
Yes, and mesh is the material where it shows most. On solid fabric the beam is absorbed at the surface; on an open mesh a share of it passes straight through the holes, reaches the table and comes back. On a honeycomb bed that can leave a faint pattern on the underside of light-coloured mesh, and on heavier open structures it can mark the reverse face in a way the customer notices before you do.
The fixes are ordinary once you know to look: check the reverse face of the sample, not just the cut edge, and choose the table surface with that in mind rather than defaulting to whatever the demo used. Send a piece of the actual mesh — open area varies enormously between a sports mesh, a filtration mesh and a decorative net, and it is the open area that decides this. Shared cutting behaviour is on the fabric laser cutting machine page.
