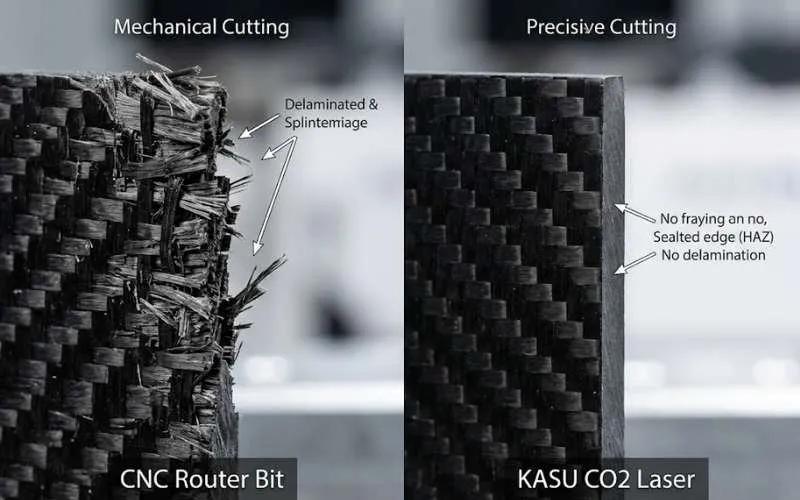

Carbon fiber reinforced polymer (CFRP) is the backbone of modern aerospace, automotive, and high-end sporting goods, yet its structural complexity makes it a nightmare for traditional machining. Mechanical routing often leads to catastrophic delamination, rapid tool wear, and hazardous dust, which slashes your profit margins and compromises part integrity. If your production line or your clients are struggling with jagged edges and high scrap rates, you need a precise, non-contact solution that balances thermal management with high throughput. KASU’s industrial laser systems offer the precision required to vaporize epoxy resins while maintaining the structural bond of the carbon tows.
How Can You Efficiently Laser Cut Carbon Fiber Without Delamination?
To laser cut carbon fiber successfully, you must achieve sublimation—turning the material directly from solid to gas—with minimal heat conduction into the surrounding matrix. This requires a high-power density beam, typically from a CO2 laser (10.6μm) or a specialized Fiber laser, paired with high-speed galvanometer scanning or rapid linear motion. The secret lies in the pulse frequency; by using short, high-peak-power pulses, we can vaporize the carbon fibers and the resin simultaneously before the heat can travel through the highly conductive carbon tows, thus preventing the “receding resin” effect or edge charring.
The Material Paradox: Why Carbon Fiber Challenges Traditional Lasers
Carbon fiber isn’t a single material; it’s a composite of two vastly different substances. You have the carbon filaments, which are incredibly heat-resistant and thermally conductive, and the polymer resin (usually epoxy), which is heat-sensitive and insulating.

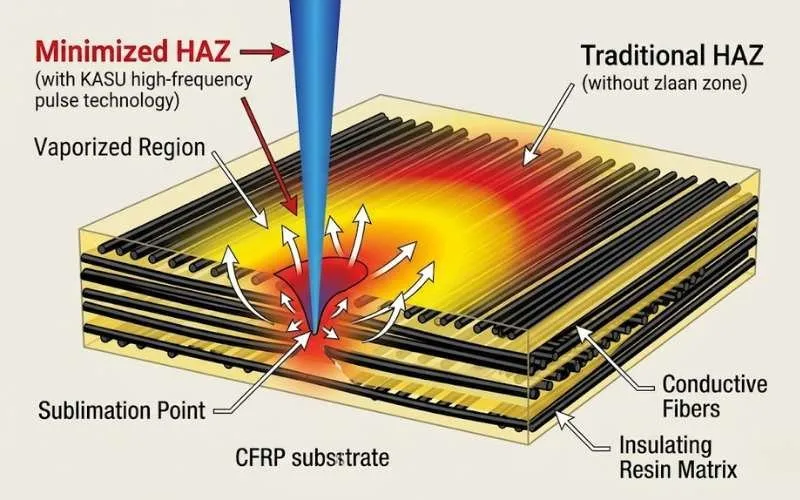

When a laser hits CFRP, the resin often melts and vaporizes at a much lower temperature than the carbon fibers. From my 15 years on the factory floor, I’ve seen countless operators ruin expensive sheets by using a “brute force” approach—cranking up the power and slowing down the speed. This only results in a massive Heat Affected Zone (HAZ) where the resin has pulled back from the cut edge, leaving the fibers dry and brittle. This is a deal-breaker for aerospace-grade components where structural fatigue is a major concern.
Fiber Laser vs. CO2 Laser: The Industrial Comparison
Choosing the right wavelength is the first decision a distributor must help their client make. Based on our internal R&D at KASU, both have their niche depending on the specific weave and thickness.
| Feature | CO2 Laser (10.6μm) | Fiber Laser (1.06μm) |
|---|---|---|
| Absorption Rate | Excellent for epoxy resin | High for carbon filaments |
| Edge Quality | Cleaner, less charring on thin sheets | Potential for more dross on thick plates |
| Tolerance (mm) | ±0.05mm | ±0.03mm |
| Operating Cost | Higher (Gas + Electricity) | Lower (Solid-state efficiency) |
| Maintenance | Mirrors and tubes require alignment | Virtually maintenance-free |
For most KASU partners focusing on the automotive aftermarket or sporting goods, a high-wattage CO2 system remains the “gold standard” because the wavelength is absorbed more uniformly by the organic resin, leading to a smoother finish.
Technical Parameters for 100% Structural Integrity
Success in a B2B production environment isn’t about “getting through” the material; it’s about repeatability. Below is the parameter matrix we use at KASU for a standard 3K Twill CFRP sheet.
| Thickness (mm) | Laser Power (W) | Speed (mm/s) | Frequency (Hz) | Assist Gas | Kerf Width (mm) |
|---|---|---|---|---|---|
| 0.5mm | 150 – 200 | 50 – 80 | 20,000 | Nitrogen (5 bar) | 0.12 |
| 1.5mm | 300 – 450 | 30 – 45 | 15,000 | Nitrogen (7 bar) | 0.18 |
| 3.0mm | 600 – 1000 | 15 – 25 | 10,000 | Compressed Air | 0.25 |
KASU Engineer’s Note: Never attempt to cut CFRP thicker than 2mm using Oxygen. The exothermic reaction with the epoxy resin will cause “resin recession,” leaving exposed, dry fibers that fail pull-out strength tests.

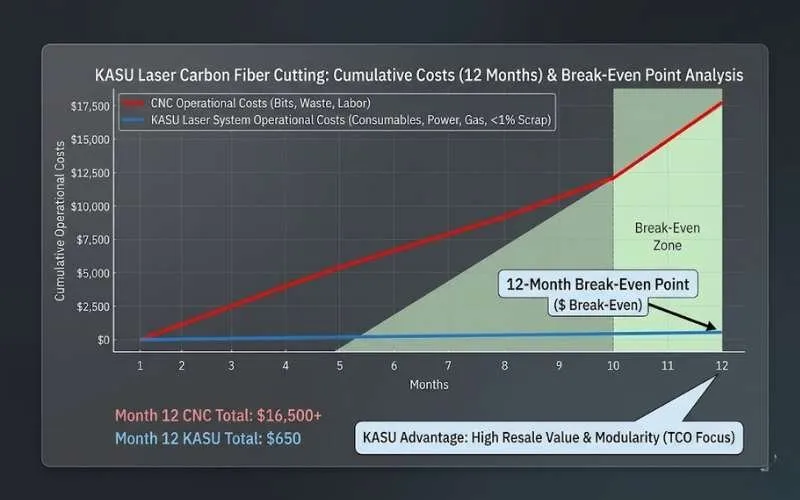

The Profit Logic for Distributors: 12-Month ROI Analysis
For our distribution partners, the value proposition to the end-user is simple: Elimination of Consumables. Below is a typical ROI comparison for a manufacturer processing 500 CFRP sheets (1000mm x 1000mm) per year.
| Expense Category | CNC Routing (Traditional) | KASU Laser System |
|---|---|---|
| Tooling/Consumables | $12,000 (Bits replacement) | $200 (Lens cleaning/Gas) |
| Material Waste | $4,500 (8% delamination scrap) | $450 (<1% scrap rate) |
| Labor Cost | High (Frequent tool changes) | Low (Automated operation) |
| Finish Processing | Required (Sanding/Deburring) | Not required (Clean cut) |
| Total Annual Op-Ex | $16,500+ | $650 |
The Total Cost of Ownership (TCO) of a KASU Laser Cutter is typically realized within 12–14 months purely on the savings from router bits and reduced material waste.

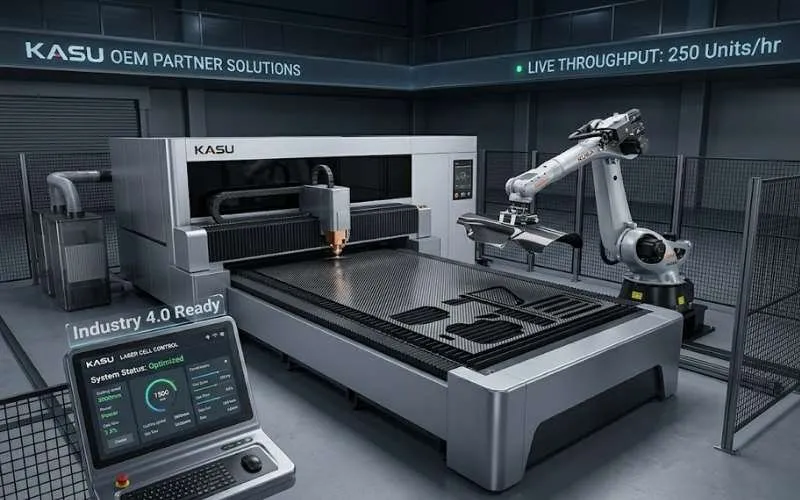

Integration and Automation: Industry 4.0 Readiness
For System Integrators, the laser is only one part of the equation. In 2026, the demand is for fully automated manufacturing cells. KASU systems feature:
- Open API Architecture: Seamlessly link with ERP and PLM systems.
- Vision System Integration: Auto-aligning cuts with woven patterns or printed markers.
- Proactive Monitoring: Sensors track gas pressure and mirror temperature to prevent downtime before it occurs.

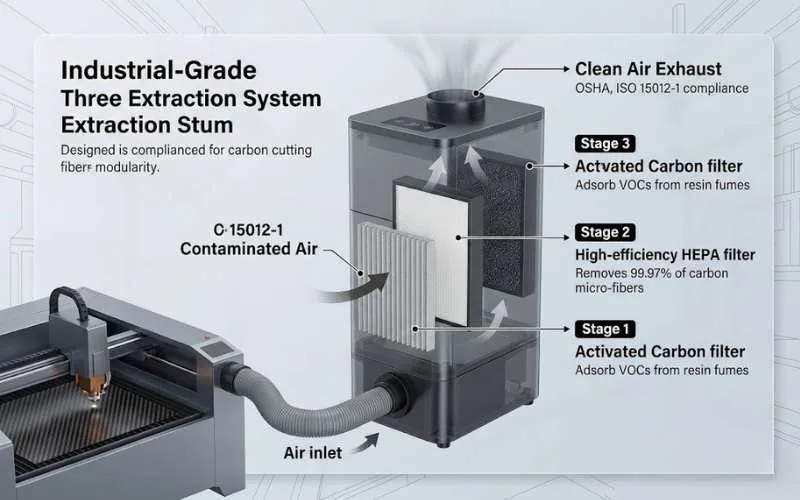

Safety and Compliance: Filtration is Not Optional
If you are a system integrator, you cannot ignore the fumes. Laser-cutting carbon fiber produces a cocktail of Volatile Organic Compounds (VOCs) and microscopic carbon dust. Carbon dust is conductive; if it gets into your electrical cabinets, it will short-circuit your boards.
Every KASU installation for carbon fiber must include a multi-stage HEPA and Activated Carbon filtration system to comply with ISO 15012-1 and OSHA air quality standards.
Lessons from the Factory Floor: Avoiding “Yellow Edges”
I remember a project with a high-end bicycle rim manufacturer. They were getting “yellowing” on their pre-preg carbon. After an on-site audit, we discovered they were using low-purity shop air. The moisture in the air was reacting with the resin under the laser’s heat.
We switched them to a dedicated refrigerated air dryer and increased the focal length by just 2.5mm to create a slightly more “V-shaped” kerf that allowed gases to escape faster. The yellowing vanished. If you’re seeing edge discoloration, look at your air quality before you blame the laser source.
Why KASU for Your CFRP Production Line?
As a manufacturer, KASU understands that OEMs don’t just buy a machine; they buy a process. We offer:
- Custom Bed Sizes: For large aerospace panels or small drone frames.
- Global Logistics: We handle the customs and shipping complexities for the 2026 market, ensuring your lead times are predictable.
- OEM Customization: Private labeling options for large-scale distributors.
Optimizing Your Composite Throughput
The shift from metals to composites is accelerating. For distributors, offering a machine that can handle the unique thermal properties of carbon fiber is a significant competitive advantage. By focusing on thermal management and proper filtration, you provide a solution that is safe, efficient, and highly profitable.
Scale Your Production with KASU
Are you ready to upgrade your manufacturing capabilities or add a high-performance laser line to your distribution portfolio? Our engineers are ready to provide a custom TCO analysis and material test for your specific CFRP weave. Contact KASU today to discuss OEM configurations and our tiered distributor pricing for the 2026 fiscal year.
