KC1313-F CO2 Galvo Gantry Integrated Laser Cutting Machine
KC1313-F CO2 Galvo Gantry Integrated Laser Cutting Machine is a versatile designed and developed by KASU Laser combines both galvanometer and X-Y gantry systems’ advantages, sharing one high-quality glass Co2 laser tube. The galvanometer offers high-quality perforating, kiss-cutting, and cutting textile, PU and vinyl materials with high speed, while the X-Y gantry system allows processing more oversized width materials.
- High Accuracy and Precision Cuts
- Smart Motion Structure Design Meet Multi-Industry Needs
- Computer-Aided Manufacturing
- Super Low Machine Investment
See the KC1313-F CO2 Galvo Gantry integrated Laser Cutting Machine in Action — Production Floor Video
Watch the KC1313-F CO2 Galvo Gantry integrated Laser Cutting Machine run a real cutting job on our factory floor — feed alignment, beam path, and continuous output captured at production speed. The clip shows what to expect on day one before you commit to a machine of this class.
See the KC1313-F CO2 Galvo Gantry integrated Laser Cutting Machine in Action — Production Floor Video

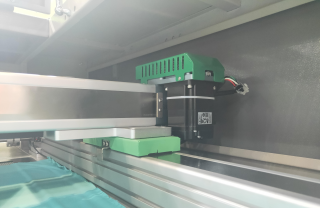

CO2 Galvo Gantry Integrated Laser Cutting Machine is highly innovated and integrated by applying a CCD camera for galvo head calibration, Japan servo motors, high-precision grinding linear guide, and can realize high-speed large format joint cutting and perforating work, high working precision, and super low cost.
CO2 Galvo Gantry Integrated Laser Cutting Machine system provides high speed leather fabric perforation engraving, hot stamping film half-cut processing, while the X-Y mobile structure design realizes a larger range of material processing and handling at a lower cost.
KC1313-F CO2 Galvo Gantry integrated Laser Cutting Machine — Full Spec Sheet, Accessories & Manufacturing
Every dimension you need to evaluate the KC1313-F CO2 Galvo Gantry integrated Laser Cutting Machine in one place — complete technical data sheet, included accessories, available optional upgrades, and our factory manufacturing process. Key strengths at a glance: High Processing Speed, High Precision, and Good Cutting Effect. Switch the tabs below to drill into each.
- Data Sheet
- Includes & Options
| Laser Head | Single | Working Area | 1300*1300MM |
| Laser Type | CO2 Sealed Glass Tube | Laser Power | 100W |
| Working Platform | Honeycomb | Optical Aperture | 8.5MM |
| Cooling System | Industrial Water Chiller | Repeated Precision | < 2URAD |
| Marking Speed | <2500MM/S | Positioning Speed | <15000MM/S |
| Cutting Thickness | ≤5MM | Max Marking Graphic Size | 50*50MM |
| Working Temperature | -15°C-55°C | Machine Power | <1500W |
| Supported File | PLT、DXF、ETC | Power Supply | AC220V+5%/50-60HZ |
What's Included with the KC1313-F CO2 Galvo Gantry integrated Laser Cutting Machine
- Glass CO2 laser tube — 80W / 100W / 130W (configurable)
- Galvo scanning head (2-axis high-speed mirrors)
- Gantry-mounted galvo assembly
- HIWIN-spec linear rails for 1300 × 1300 mm bed
- American II–VI 25mm focusing lens (galvo-tuned)
- Three molybdenum reflective mirrors
- S&A CW-5200 industrial chiller
- Hailey diaphragm air pump
- 1.5kW centrifugal smoke exhaust + ducting kit
- Industrial DC HV power supply
- Triangle-truss steel frame
- KASU galvo+gantry control software (EzCAD compatible)
- E-stop + tower light
- Multi-language CE laser warning labels
- Factory tool kit
Compatible Upgrades for the KC1313-F CO2 Galvo Gantry integrated Laser Cutting Machine
- CCD top-camera vision upgrade (see KDC-1614S / KDC-1814S)
- Rotary axis (compatible with gantry mode)
- Auto-focus Z-axis (KDG-1814AF)
- Blade knife table swap
- Extended-warranty pack
Inside the KC1313-F CO2 Galvo Gantry integrated Laser Cutting Machine — Engineering Highlights & Capabilities
The blocks below take you inside the KC1313-F CO2 Galvo Gantry integrated Laser Cutting Machine — each illustrates one specific engineering choice, component, or workflow capability that defines how this machine performs in production. Topic-by-topic below: Laser Oscillator Galvo System, Smart Laser Control Card and Software, and High Precision Grinding Linear Guide.
Laser Oscillator Galvo System
Laser Oscillator Galvo System used for calibration can punch, half cut, surface engraving at high speed, with adjustable power, suitable for punching and hollowing out complex and small shapes. This level of accuracy is as high as +/- 0.1mm, which is one of the best you’ll get from laser cutting.
Smart Laser Control Card and Software
While using KASU KC1313 laser cutter, only CAD design files are necessary, and you can design at your wish. The smart laser control software can make the whole cutting and engraving process highly automatic. And the larger working area allows you to do design and layout on the entire sheet board and minimize your material loss.
High Precision Grinding Linear Guide
KC1313-F CO2 Galvo Gantry Integrated Laser Cutting Machine ‘s X-Axis and Y-Axis work in tandem to make work more efficient and cost effective. It enables large format stitching cutting engraving and hollowing with the advantages of fast processing speed.
One Stop Laser Solution For Your Product
Request An Instant Quote For Your Industry
How KASU Support Your Business
KASU is a China high-tech company and has a professional team of engineers. Our continuous innovation allows us to always care about the real needs of our customers, about the real problems you encounter in production, and to find ways to develop automation solutions that improve your productivity, reduce labor costs, and make it less difficult to manage people.
Frequently Asked Questions About the KC1313-F CO2 Galvo Gantry Integrated Laser Cutter
What is a galvo+gantry hybrid, and how does the KC1313-F combine both?
A galvo head uses two fast-moving mirrors to steer the laser beam â extremely fast for small areas (1-2 m/s) but limited to a ~300 Ã 300 mm field. A gantry moves the entire cutting head on belts â slower but covers a large area. The KC1313-F has BOTH: galvo for fast cutting/engraving inside a 300Ã300 mm window, plus a gantry that repositions the galvo across the 1300 Ã 1300 mm full work area. Best of both: galvo speed + gantry size.
When does the KC1313-F galvo+gantry hybrid beat a regular gantry-only cutter?
The hybrid wins on workloads where the laser does many short cuts/engravings spread across a large area. Examples:
| Workload | Gantry-only time | KC1313-F hybrid time |
|---|---|---|
| 200 small logos engraved on 1.3Ã1.3m | ~25 min | ~8 min |
| 500 small contour cuts (50 Ã 50 mm each) | ~40 min | ~13 min |
| Continuous large outline (single shape) | ~5 min | ~5 min (gantry only) |
Which printed-label and small-component industries use galvo+gantry hybrids?
Strongest 2025 segments: US and German label converter shops engraving brand logos on aluminum nameplates; Indian and Pakistani textile-label producers; Polish and Czech promotional-product makers (engraved keychains, pens, USB drives in batches of 200+); and Chinese e-commerce sellers producing engraved acrylic gift items in batches. Common workload: many small detail engravings spread across a sheet â exactly what gantry-only loses time on.
What software handles the galvo+gantry coordination?
KASU’s bundled galvo+gantry control software (Windows 7-11, no licence fee) handles the toolpath optimization automatically: for each cut/engrave region in the design file, software decides whether to use galvo (inside 300mm window) or gantry (large continuous cuts). Operator just imports a DXF / AI file and clicks Run. EzCAD-compatible files also supported for shops migrating from other galvo platforms.
What's the laser tube and electrical setup for the KC1313-F?
| Item | Spec |
|---|---|
| Laser tube | Glass CO2, 80 / 100 / 130 W |
| Galvo head | 2-axis high-speed scanning mirrors |
| Working area | 1300 Ã 1300 mm (gantry); 300 Ã 300 mm per galvo field |
| Voltage | 220 V single-phase (380 V on request) |
| Cooling | 5200 industrial water chiller |
| Compressed air | 0.6-0.8 MPa |
