How Long Does Laser Cutting Take?

A distributor called me in 2023 with a problem. He had sold a 6kW fiber laser to a sheet metal OEM in Southeast Asia. The machine performed exactly as specified. Cutting speed: on target. Edge quality: clean. But his customer was furious — the quoted lead time was off by four days, and a downstream assembly line had stalled waiting on parts.

The machine was not the problem. The math was.

His quote was built on cutting speed alone. It ignored pierce time, nesting setup, sheet loading, quality inspection, and the gas changeover between carbon steel and stainless runs. That distributor lost a €40,000 repeat order — not because the machine underperformed, but because nobody had given him the full cycle time picture before he walked into that sales meeting.

That is the exact gap this guide closes. If you are a distributor quoting machines to OEM accounts, an integrator modeling throughput for a new production cell, or a procurement manager evaluating fiber laser suppliers, you need more than a spec sheet speed number. You need the complete cost of time, from beam-on to parts-out.

The Direct Answer: How Long Does Laser Cutting Take?

Laser cutting time ranges from under 1 second to over 15 minutes per job. A 6kW fiber laser cuts 1mm stainless steel at 30–45 m/min — fast enough to process a simple bracket in under 10 seconds of beam-on time. A full nested sheet of complex brackets in 10mm carbon steel on that same machine takes 12–18 minutes from first pierce to last part.

Here is a practical job-type reference for real production environments:

*Full cycle time includes loading, unloading, sorting, and quality inspection. Does not include nesting setup or post-processing.

The number most vendors give you is beam-on time. The number that runs your business is the full cycle time. In a real production environment, full cycle time runs 1.3× to 1.7× longer than beam-on time. The gap is not a machine problem — it is a planning problem. And it is entirely solvable once you understand where the time actually goes.

What “Cutting Speed” Actually Means — And What It Leaves Out

Every fiber laser spec sheet lists a cutting speed in meters per minute. That number is real. It describes exactly what happens when the laser head moves through material under ideal conditions in a straight line. It does not describe what happens the other 35–40% of the time the machine is running.

Beam-On Speed vs. Total Cycle Time

I think of it like this: a highway speed rating tells you how fast your truck goes on an open motorway. It does not tell you your average delivery speed across a city with loading docks, traffic, and a driver who needs a break. Laser cutting works exactly the same way.

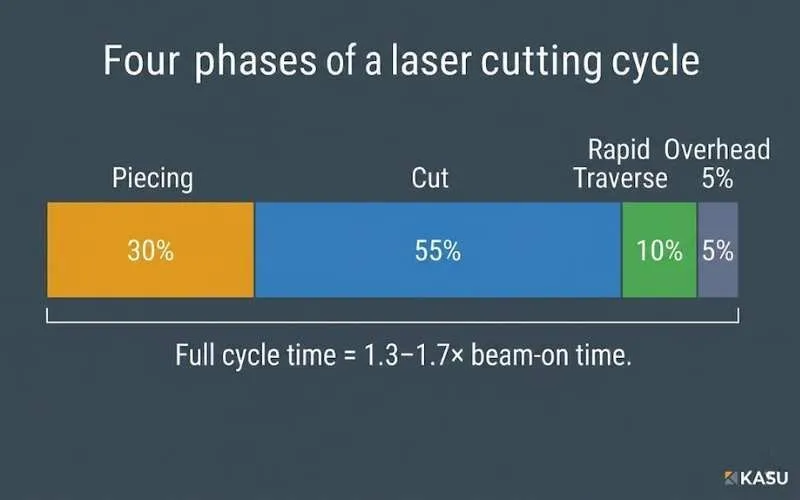

Total cycle time has four distinct phases — and only one of them is the speed number on the spec sheet:

• Piercing. Before the laser can cut a path, it must puncture the material from above. Each pierce takes 0.3–3 seconds, depending on thickness and power level. On a part with 40 fastener holes, that adds 12–120 seconds of pure pierce time before a single linear millimeter of contouring happens.
• Cutting. The beam-on phase. Fast on thin material. Significantly slower on a thick plate.
• Rapid traverse. The laser head repositioning between cut paths at high speed. Not instantaneous — typically adds 8–12% to beam-on time on complex nests.
• Overhead. Sheet loading, unloading, part sorting, inspection, warmup, gas changes. This is the phase that separates a theoretical throughput number from a real shift output.

The Pierce Time Problem Nobody Quotes You

Here is the calculation that surprises almost every OEM buyer I work with.

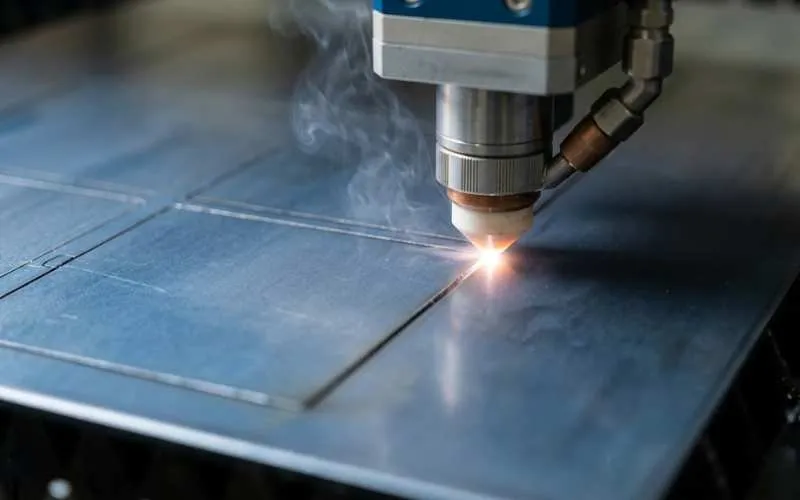

A 6kW fiber laser cuts 3mm carbon steel at roughly 10 m/min. That is a productive machine. But if the part has 60 circular holes for M8 fasteners, and each pierce on 3mm carbon steel takes 0.8 seconds at standard parameters, you have just added 48 seconds of pierce time to that part — before a single contour line is cut.

On a nest of 80 such parts across a full sheet, that is 64 minutes of pierce time per sheet. Invisible in the spec sheet. Completely real in production.

At KASU, we run pierce time audits as part of our pre-sale application review for OEM customers. On complex bracket nests, pierce time consistently accounts for 25–35% of total machine cycle time. That single number changes how buyers think about CAM software investment, nesting strategy, and machine selection. Knowing it before the sale is the difference between a satisfied account and the phone call I described in the opening.

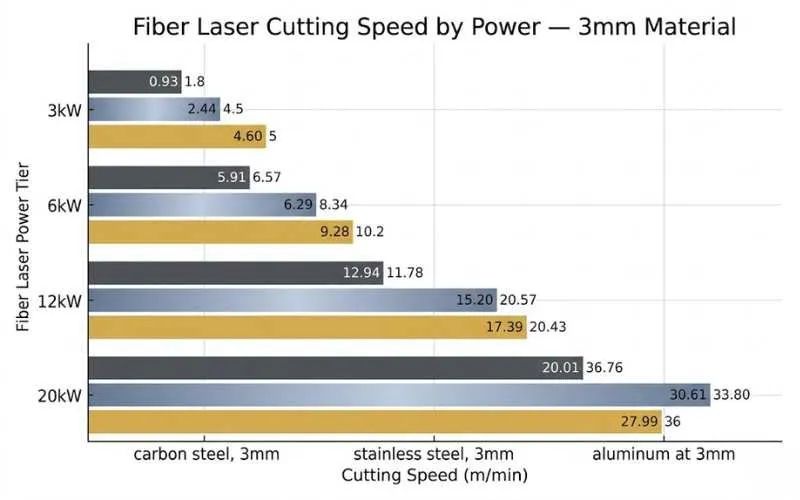

Laser Cutting Speed by Power Level: Production-Grade Data

The tables below reflect production cutting parameters for fiber laser cutting machines across common industrial materials. These are the speeds at which you get acceptable edge quality for downstream processes — not the maximum speed the machine’s motion system can physically achieve.

Carbon Steel — Oxygen Assist Gas (O₂)

Stainless Steel — Nitrogen Assist Gas (N₂)

Aluminum — Nitrogen or Compressed Air

Parameters cross-referenced against MachineMFG laser cutting speed reference data and validated against KASU factory test results. Real-world values vary with beam quality, gas purity, focus offset, nozzle condition, and ambient temperature. Always run material validation cuts before committing to production schedules or customer quotes.

The 5 Factors That Determine How Long Your Job Actually Takes

Cutting speed without these five variables is a number without context. Context is what separates a quote that wins from a quote that costs you a customer.

1. Material Type and Surface Condition

Carbon steel cuts fast with oxygen because the exothermic reaction between O₂ and iron contributes additional thermal energy to the cut, effectively extending the laser’s cutting power beyond its rated wattage. Stainless steel and aluminum need nitrogen — cleaner edges, no oxidation discoloration, paint-ready surfaces — but at 20–35% lower speed on equivalent thickness.

Surface condition is something most articles ignore entirely. Oily, mill-scaled, or galvanized material absorbs laser energy inconsistently across the sheet. In KASU’s application testing, we have measured 12–18% speed reductions on mill-scale carbon steel versus the same specification in cleaned condition. If you are quoting production jobs for an OEM customer who sources plate directly from a steel service center, ask about their incoming surface standard. It changes your numbers.

2. Laser Power Tier

Moving from 6kW to 12kW on 6mm carbon steel roughly doubles your cutting speed. The jump from 12kW to 20kW adds another 60–70% on that thickness. But this relationship is not linear across all thicknesses — and that non-linearity is where buyers make expensive mistakes.

On 1mm stainless steel, the speed difference between 6kW and 12kW is real but not dramatic. Thin material hits a speed ceiling imposed by the motion system’s acceleration limits before laser power becomes the constraint. You can have a 20kW machine and still not cut 1mm stainless faster than a well-configured 6kW — because the gantry physically cannot accelerate fast enough on short contours to use the extra power.

For distributors, this is the critical configuration insight: a customer running 90% thin sheet (under 4mm) does not need a 20kW machine for fast throughput. A well-specified 6kW system with a high-speed servo platform will outperform an overspecified high-power machine on that material mix — at 40–50% lower capital cost and meaningfully lower operating cost per part. Selling beyond what the application requires creates sticker shock without delivering throughput improvement, and it loses deals to whoever quotes the correctly-sized machine.

3. Assist Gas Selection

Assist gas pressure and purity affect cut speed and edge quality more than most operators realize. Moisture contamination in air-fed systems, or substandard nitrogen purity (below 99.5%), causes inconsistent penetration and surface oxidation that forces speed reduction or rework.

I have watched a contaminated nitrogen delivery trip shut down a 12kW production cell for half a shift. The operator spent three hours chasing a machine fault that was a gas supply issue. The diagnostic cost — in downtime and labor — exceeded the cost of a gas quality sensor that could have flagged the problem in seconds. If you are advising OEM customers on their production infrastructure, gas supply quality is not a footnote. It is a throughput variable.

4. Design Complexity and Pierce Count

A part with 5 contours cuts in a small fraction of the time needed for a part with 200 internal holes of the same overall sheet area. Every pierce point is a time tax — paid before the cut path even begins.

Common-line cutting is the most underused throughput tool in sheet metal production. When two adjacent parts share a single cut line rather than two separate parallel cuts, you eliminate one pierce point and one kerf width of wasted material per shared edge. On a nest of 200 identical brackets, that is 200 fewer pierces — potentially 2–4 minutes of recovered time per sheet, across every sheet you run.

Good nesting software from vendors like Lantek or Hypertherm automates common-line detection and optimizes pierce placement. In KASU’s internal nesting trials with carbon steel enclosure brackets, moving from manual nesting to optimized software nesting raised material utilization from approximately 63% to 84% and reduced total sheet time by 17–22%. That improvement required no machine upgrade — just better process tooling.

5. Machine Motion System Quality

The spec sheet rarely tells you this, but the motion system is often what separates a machine that performs in the demo from a machine that performs in production.

High-rigidity gantry designs with servo motor drives maintain programmed cutting speeds through curves and corners. Inferior motion systems decelerate aggressively on direction changes — what looks like identical specifications on paper produces 20–30% longer real-world cycle times on complex geometries with frequent direction reversals.

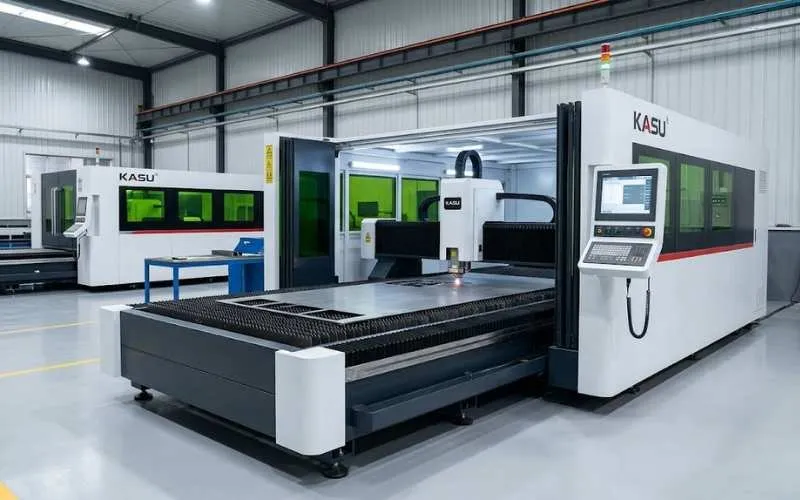

KASU laser cutting machines use fully stress-relieved welded steel frames — 600°C heat treatment for 8 hours, followed by 24 hours of furnace cooling — specifically to eliminate the frame resonance that degrades positioning accuracy at production speeds. The difference shows up not in the demo cut, but in shift 200 on a high-volume production run.

Full Cycle Time Breakdown: What OEM Production Planning Actually Needs

For a production planner building a shift schedule or a distributor building a throughput commitment into a customer contract, this table matters more than the cutting speed chart.

Apply a 70% utilization factor to theoretical capacity when planning real shift output. A machine capable of 200 parts per shift in theoretical continuous cutting produces reliably around 140 parts per shift in a live production environment — accounting for loading cycles, sorting, inspection, minor stoppages, and shift transitions.

Data from EAGLE Lasers’ cost-per-part benchmark provides a useful third-party cross-reference:

The throughput difference between 4kW and 15kW on identical geometry is approximately 4×. That is your power-upgrade argument, with third-party numbers behind it.

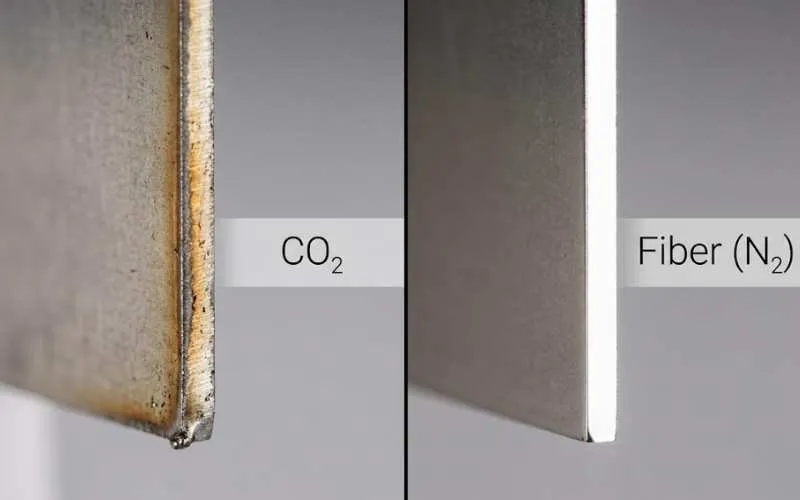

CO₂ vs. Fiber Laser: How the Speed Difference Affects Your Customer’s Business — and Your Account

The technical comparison between CO₂ and fiber lasers is well-documented. What is less documented is what happens to a distributor relationship when the wrong machine type gets sold.

A fiber laser’s ~1.07 µm wavelength is absorbed by metals at 3–6× the efficiency of a CO₂ beam. That is not a feature claim — it is physics, and it is why a fiber machine cuts stainless at 30–45 m/min while a CO₂ machine struggles to hold 8–12 m/min on the same material.

Here is what this means for distributor account risk: if you sell a CO₂ machine to a customer who currently runs 60% acrylic and 40% thin stainless, and their product mix shifts to 80% stainless within 18 months — which happens frequently as customers win new contracts — their cost per part on metal will be 3–4× higher than a competitor running fiber. They will figure this out. They will blame the machine. And they will call a different supplier for the replacement.

The right machine type at the initial sale protects your account for 8–10 years. The wrong type creates a replacement conversation that your competitor wins. When you are advising a customer on platform selection, always map their current material mix and their growth direction — not just their immediate job list.

The Distributor’s TCO Model: From Cycle Time to Cost Per Part

This is the calculation that most sales conversations never reach — and the one that most determines whether your customer views their machine as a profit tool or a cost burden.

Worked Example: 6kW Fiber Laser, 3mm Carbon Steel Brackets

Machine parameters:

• Monthly utilization: 300 hours (standard two-shift operation)
• Monthly leasing rate: ~$8,500 (mid-range 6kW system)
• Energy consumption: ~18 kWh at full load
• Energy cost: $0.12/kWh
• Oxygen gas consumption: ~15 m³/hr at cutting parameters
• O₂ cost: ~$0.25/m³
• Consumables (nozzle, lens amortization): ~$1.20/hr
• Operator labor allocation: $18/hr

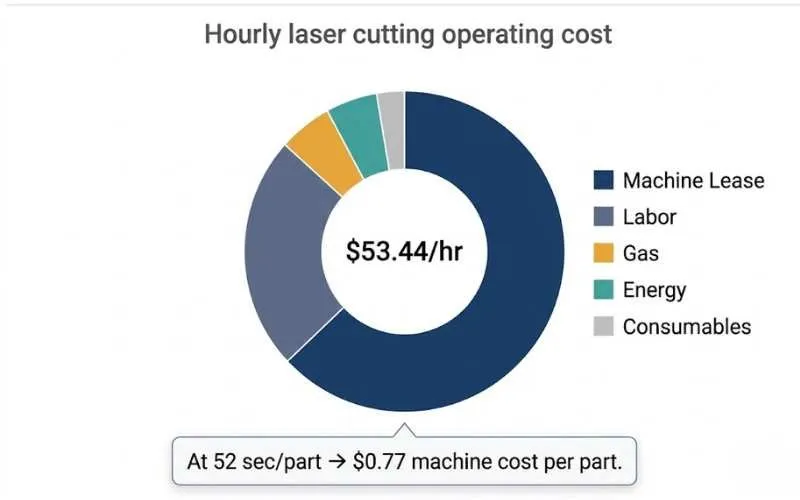

Hourly machine operating cost:

At 52 seconds per part (4kW benchmark equivalent for a simple bracket on 6kW):

Cost per part = $53.44 ÷ 3600 × 52 = $0.77 per part

Add material cost (3mm CS, ~$2.80/kg, typical bracket ~0.4 kg = $1.12) and your total landed part cost before margin is approximately $1.89.

If your customer is quoting these brackets at $3.50 each and running 300 hours per month, their gross margin on machine time alone is $1.61/part, and at 69 parts/hour, that is $111/hr gross margin contribution from a single machine. At $8,500/month lease, payback on the machine lease happens in under 77 hours of production. That is roughly 10 working days.

This is the conversation that closes deals. Not the speed chart. Show your customer what the machine earns, not just what it costs.

Sourcing From China: What Lead Time Really Looks Like for International Distributors

This section matters specifically to distributors sourcing KASU laser cutting machines or any Chinese-manufactured equipment for international sale. The cycle time inside the factory is only one component of your customer’s wait.

Equipment Lead Time Anatomy — FOB China to Customer Site

For distributors, this timeline has three practical implications:

First, maintain demo inventory. A customer who wants to evaluate before committing cannot wait 60–99 days for a demo unit. Distributors who carry one or two demo machines close 30–40% more deals than those who rely on the manufacturer to ship samples on demand.

Second, build safety stock on high-velocity configurations. If your market consistently buys 6kW and 12kW standard-bed machines, stocking one unit of each at your warehouse converts a 60-day delivery into a 5-day delivery. That single capability can win accounts that a competitor with identical machines and pricing cannot.

Third, clarify Incoterms in your customer contracts. FOB origin means your customer owns the machine the moment it leaves the factory. If it arrives damaged, their problem. CIF destination means the risk stays with the shipper until port. For OEM customers unfamiliar with international freight, the Incoterms explanation is part of your value as a distributor — not a legal technicality to bury in the order form.

6 Ways to Reduce Laser Cutting Time Without Buying a Bigger Machine

The biggest throughput improvements I have seen at customer sites in the last three years did not come from machine upgrades. They came from process corrections that cost almost nothing.

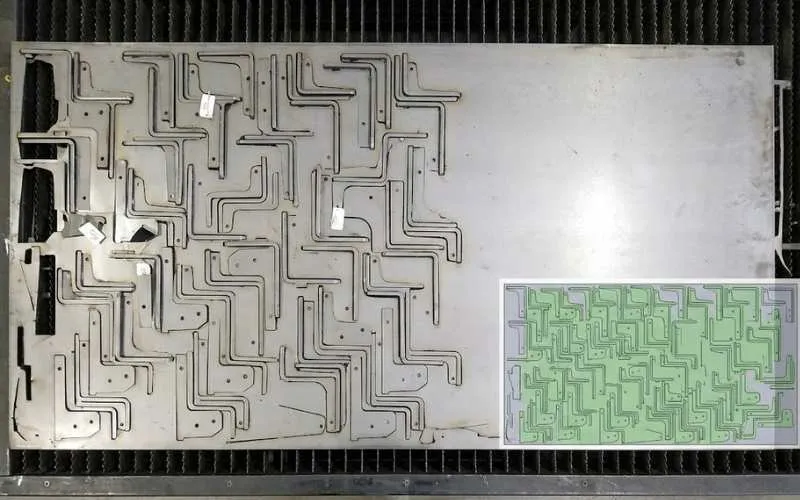

1. Optimize nesting density. In KASU’s internal trials with carbon steel enclosure panels, moving from unoptimized manual nesting (63% utilization) to software-optimized nesting (84% utilization) produced 17–22% more parts per sheet, with zero change to machine power or cutting speed. Your customer does not need a bigger machine. They need a better nest.

2. Use common-line cutting on repetitive parts. Adjacent identical parts sharing a single cut line eliminate one pierce per shared edge. On a run of 200 brackets, that recovers 2–4 minutes per sheet. At 300 sheets per month, that is 10–20 hours of recovered production capacity — essentially a free shift.

3. Match the assist gas pressure to the material and thickness precisely. Underpressured gas causes dross and incomplete penetration, forcing operators to reduce speed or recut. Overpressured gas creates turbulence at the kerf and degrades edge quality on thin material. The correct pressure is in your machine’s parameter table. Use it. Validate it after every nozzle change.

4. Inspect optics on a proactive schedule, not a reactive one. In KASU’s optics degradation testing, a 6kW cutting head with 30% lens contamination delivered measurably worse cut quality at a 15–18% effective speed reduction compared to a clean lens, with no fault code, no alarm, and no obvious visible change to the operator. The machine was not broken. It was running blind. Scheduled optics inspection every 40–60 hours of cutting time prevents this.

5. Implement offline programming. Every minute the machine sits idle while the next job is being programmed on the controller is a minute of zero output. Offline CAM programming — done in parallel with the current job — eliminates this dead time entirely. On a high-mix shop running 8–12 job changeovers per shift, this alone can recover 45–90 minutes of productive machine time per day.

6. Plan to 70% utilization, not 100%. A production schedule built on 100% theoretical throughput turns every unplanned maintenance event into a crisis and every quality issue into a cascading delay. A 70% utilization model builds in recovery capacity, produces more consistent output over a rolling 30 days, and gives your customer SLA commitments you can actually keep.




The Decision Framework: Three Numbers That Drive the Right Machine Selection

These three numbers, run through the TCO model in the previous section, give you a machine recommendation that survives the customer’s CFO review. That is the standard the recommendation needs to meet.

Speed Is What You Sell. Predictability Is What They Buy.

After years of working with distributors and OEM integrators across Southeast Asia, Europe, and the Middle East, I have come to one consistent conclusion about this question.

The question “how long does laser cutting take?” is almost never really about time. It is about predictability. Your customer does not fundamentally care whether a job takes 8 minutes or 11 minutes. They care whether you can tell them — consistently and accurately — how many parts will be ready by Friday morning, what they will cost per unit, and whether the machine will still be running at full parameters in year three.

Predictable throughput is the product. The machine is the tool.

When you walk into a customer meeting with real cycle time data, a worked TCO model, and a utilization plan that accounts for gas, maintenance, and overhead, you stop selling a machine. You start selling a production outcome. That is a different conversation entirely. And almost none of your competitors show up to it prepared.

Build Your Production Case Before the Next Sales Meeting

At KASU, we work directly with distributors and OEM integrators to run pre-sale cycle time simulations on real customer DXF files — not demo brackets. You send us the files and material specifications. We run the nest, model the full cycle time, and return a production output projection with a worked cost-per-part calculation that you can put in front of your customer’s engineering and procurement team.

No generic estimates. No spec sheet speculation. Real numbers from the machine your customer is considering.

Contact the KASU engineering team and come to your next customer conversation with a model, not a brochure.

Request a Pre-Sale Throughput Simulation from KASU →

Frequently Asked Questions

Q: How long does it take to laser cut 1mm stainless steel?
A 6kW fiber laser cuts 1mm stainless steel at 30–45 m/min using nitrogen assist gas. A simple single-contour part completes in under 5 seconds of beam-on cutting time. Total cycle time, including loading, sorting, and inspection runs 20–40 seconds per part in a production environment. At 70% utilization across an 8-hour shift, expect 600–900 such parts per shift from a single 6kW machine.

Q: How does laser cutting time compare to waterjet or plasma cutting?
On material under 6mm, fiber laser is faster than both waterjet and plasma — often 3–5× faster on thin stainless and aluminum. The Fabricator’s process selection guide covers this in depth. Plasma and oxy-fuel regain the speed advantage above 20–25mm carbon steel, where laser cutting slows significantly and operating cost per meter rises. For mixed-thickness OEM production, fiber laser typically wins on total throughput economics below 20mm.

Q: How do I calculate laser cutting time for a production quote?
The formula: Cutting time = total cut path length (mm) ÷ cutting speed (mm/min). Add pierce time: number of pierce points × average pierce duration (0.3–3 sec by thickness). Add rapid traverse: approximately 10% of cutting time. Multiply total by 1.35 for overhead (loading, sorting, inspection). Apply your hourly machine rate for cost. For consistent quoting across jobs, use a CAM-integrated time estimator — Micro Estimating’s fabrication calculator provides cycle time estimates within ±1% of actual for standard laser cutting operations.

Q: How long does laser cutting take for acrylic vs. metal?
Acrylic cuts fast and cleanly with CO₂ laser — 3mm cast acrylic at 20–30 mm/s on an 80W CO₂ machine, producing glossy flame-polished edges without secondary finishing. Metal requires fiber laser for efficient throughput. A 6kW fiber laser on 3mm carbon steel runs at 133–200 mm/s — 4–7× faster in linear terms, but metal jobs typically carry more pierce points and complex geometry. For shops cutting both materials, the right answer is often two machines: a CO₂ for non-metals and a fiber for metal. Trying to do both on one platform means compromising speed on one material category.

Q: What is a realistic shift output for a 6kW fiber laser in OEM production?
On a representative mix of carbon steel sheet metal parts (2–6mm) with moderate complexity (20–40 pierce points per part), a 6kW fiber laser running two shifts (16 hours) at 70% utilization produces 800–1,400 parts per day. Complex parts with high pierce counts and tight tolerances requiring inspection sit toward the lower bound. Simple stamped-replacement parts with low pierce counts and relaxed tolerances sit toward the upper bound. These figures assume optimized nesting and offline programming — shops without these process tools typically run 20–30% below the range.

Q: How does laser cutting machine lead time from China affect my distribution business?
Equipment lead time from a Chinese manufacturer to a distributor’s end customer typically runs 47–99 days door-to-door, covering production, testing, ocean freight, and import clearance. The most effective mitigation strategy is stocking one or two high-velocity configurations at your distribution warehouse, converting a 60-day wait into a 5-day delivery. Distributors who maintain local inventory consistently command 15–25% price premiums over those who drop-ship direct from the factory — because the customer is paying for availability, not just equipment.
