How Do I Maintain A Fabric Laser Cutter?

Maintaining a fabric laser cutter is crucial to ensure it delivers precise cuts and remains reliable for years. Regular maintenance reduces the risk of downtime, extends the machine’s lifespan, and ensures you consistently produce high-quality results.

To maintain a fabric laser cutter, clean its components frequently, monitor settings for precision, and address wear or alignment issues promptly. Proper maintenance safeguards both productivity and your investment.

Skipping maintenance can lead to frequent breakdowns, costly repairs, and compromised cutting accuracy. Let’s explore the essential aspects of keeping your fabric laser cutter in excellent condition.

What Materials Can You Cut With A Fabric Laser Cutter?

The types of materials used by fabric laser cutter directly affect the machine’s performance and maintenance needs. Different materials may require adjustments in laser power, cutting speed, and the frequency of cleaning components.

You can cut natural fabrics like cotton, silk, and wool, synthetic fabrics like polyester and nylon, technical textiles like Kevlar, and even leather. PVC-based materials can also be cut, but their cutting effects and fumes require careful management.

By clarifying the range of compatible materials, users can better understand the machine’s capabilities and focus on specific maintenance aspects, such as residue left from cutting leather or potential wear on lenses when working with polyester fabrics. These insights help users operate confidently and extend the machine’s lifespan.

While PVC materials are laser-compatible, the cutting edges may appear slightly yellowed, depending on the specific product. Whether this is acceptable depends on the end application. Additionally, PVC cutting releases fumes that should be managed with an air filtration system.

Material Compatibility And Applications

Here’s a breakdown of common materials you can cut with a laser cutter and their typical applications:

Managing PVC Fume Emissions

To ensure safety and a clean working environment, it’s crucial to use an air purifier or a ventilation system when cutting PVC materials. These devices can filter out harmful fumes and minimize odor, making the process safer for operators.

What Laser Setting Is Needed To Cut Fabric?

Laser settings significantly impact the quality of cuts, especially for delicate or technical textiles. Factors like fabric type, thickness, and design intricacy play critical roles in determining the ideal settings.

Adjusting the laser’s power, speed, and frequency for each fabric ensures clean cuts with minimal distortion or scorching. Always perform a test cut on scrap material before production.

For instance, delicate materials like silk benefit from low power and higher speeds to prevent burns, while thicker fabrics like leather may require higher power settings and slower speeds for deeper cuts.

General Settings For Common Fabrics

Here’s a guide to the recommended laser settings for various fabrics:

How Accurate Is Fabric Laser Cutting?

Fabric laser cutting is renowned for its exceptional precision, allowing for intricate patterns and detailed designs on a wide range of textiles.

Fabric laser cutting achieves accuracy down to 0.1mm, making it ideal for applications requiring fine details and complex geometries. The focused laser beam ensures clean, sealed edges, even on delicate materials.

This level of accuracy is unmatched by traditional cutting methods, especially for materials prone to fraying or distortion during manual processing.

Advantages Of Accuracy In Fabric Cutting

High accuracy in fabric laser cutting offers several benefits:

1. Consistent Results: Every piece cut by a laser is identical, which is crucial for mass production.
2. Minimal Waste: The precision of laser cutting maximizes material utilization, reducing costs.
3. Clean Edges: Heat from the laser seals edges, preventing fraying in fabrics like polyester and silk.
4. Design Flexibility: Intricate patterns, including curves and sharp corners, are easily achieved.

Factors Influencing Fabric Laser Cutting Accuracy

While laser cutting is highly precise, certain factors can affect its performance:

• Material Behavior: Some fabrics, like thin synthetics, may react differently to heat, requiring power and speed adjustments.

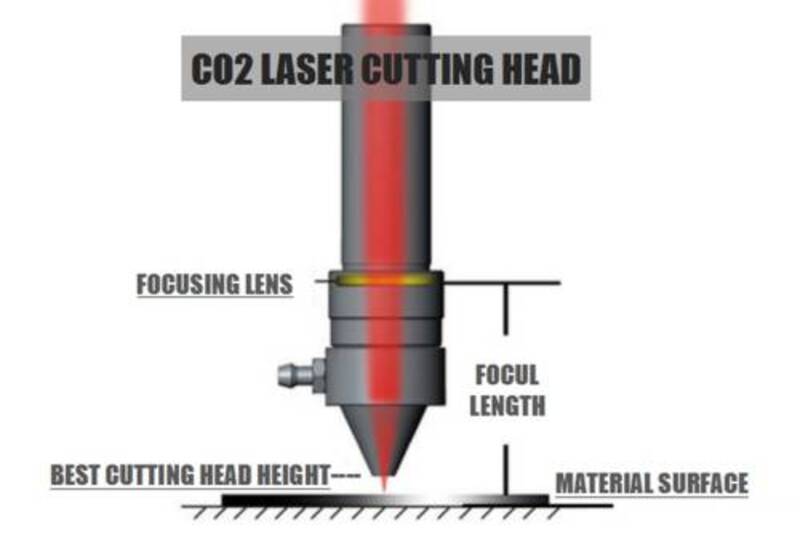

• Machine Settings: Proper calibration, lens focus, and alignment are essential for maintaining precision.

By combining precision with speed, fabric laser cutting delivers high-quality results for even the most demanding projects.

What Are Some Signs That A Fabric Laser Cutter Needs Maintenance?

A well-maintained laser cutter will operate efficiently, but wear and tear over time can lead to issues. Recognizing these signs early prevents breakdowns.

Key signs of required maintenance include inconsistent cutting results, increased noise, error messages, and visible smoke or residue buildup on components. Frequent misalignment or overheating are also warning signs.

Ignoring these signs can escalate minor issues into major repairs, resulting in downtime and financial losses.

Troubleshooting Common Problems

Here are some frequent issues and their likely causes:

• Inconsistent Cuts: Dirt or residue on the lens or mirrors. Clean the optics immediately.
• Noises Or Vibrations: Loose components, worn belts, or motor issues. Tighten screws and inspect the motor.
• Alignment Errors: Check the laser path and realign the bed if necessary.

Regularly scheduled maintenance can preemptively address these concerns, keeping your machine in peak condition.

How Often Should A Fabric Laser Cutter Be Cleaned?

Cleaning frequency depends on usage patterns, but all machines require consistent care to avoid performance issues.

For daily use, clean the laser cutter weekly. For lighter use, clean it after every major project. Consistently inspect and maintain critical components like the lens, mirrors, and workbed.

Dust, lint, and smoke residues are common culprits that reduce precision and cause wear.

Cleaning Checklist

Keeping your fabric laser cutter clean is critical for consistent performance and long-term reliability. Regular cleaning prevents residue buildup, ensures efficient operation, and minimizes wear and tear.

Key areas to focus on during routine cleaning include:

1. Laser Lens And Mirrors: Use appropriate cleaning wipes and solutions to remove dust, smoke residue, and smudges that can affect beam quality.
2. Workbed: Vacuum and clear away lint, ash, and fabric scraps to maintain an even cutting surface.
3. Ventilation System: Inspect and clean the exhaust fan and ducts to ensure proper airflow and remove accumulated debris. Replace filters if necessary.
4. Air Pump And Assist Nozzle: Check the air pump and nozzle for blockages or residue buildup. Clean them regularly to maintain steady airflow that prevents burning or melting edges.
5. Chiller Or Water Cooling System: For machines equipped with water cooling, clean and replace water in the chiller or tank to prevent clogs and ensure efficient cooling.
6. Waste Management: Remove cut-off fabric scraps and waste from the collection bins or surrounding areas to avoid obstructions and keep the workspace tidy.

Proactive Maintenance Schedule

Establish a maintenance routine that incorporates these tasks:

By maintaining all critical components—including reflective mirrors, focusing lens, motion system, exhaust fans, air pumps, and cooling systems—you ensure your fabric laser cutter operates efficiently and safely. This routine also prolongs the machine’s lifespan, giving you reliable performance for years to come.

When Do I Need To Adjust The Optical Path Of The Fabric Laser Cutting Machine?

The optical path of a fabric laser cutting machine determines the precision and quality of its cuts. Over time, this alignment can shift due to vibrations, wear, or regular use.

You need to adjust the optical path when you notice uneven cutting, inconsistent engraving depths, or a misaligned laser beam that doesn’t hit the intended focus points. Routine checks and adjustments are essential for optimal performance.

Signs That The Optical Path Needs Adjustment

Look for these indicators to determine if the optical path requires realignment:

1. Inconsistent Cutting Quality: Uneven edges or varying depths across the same material.
2. Visible Misalignment: The laser beam doesn’t travel through the center of the mirrors or lens.
3. Reduced Cutting Power: Despite correct settings, the machine struggles to cut through materials.
4. Frequent Misfires: The beam misses its target or produces incomplete cuts.

How To Adjust The Optical Path

Realigning the optical path involves these steps:

1. Inspect Mirrors And Lens: Ensure they are clean and free from dust or damage.
2. Check Beam Path: Use alignment paper or tape to verify the beam’s trajectory at various points.
3. Fine-Tune Mirrors: Adjust the screws on each mirror to center the beam perfectly.
4. Test Cuts: After alignment, perform a test cut to confirm consistent performance.

Preventative Maintenance To Reduce Misalignment

• Minimize machine vibrations by placing it on a stable surface.
• Regularly clean the mirrors and lens to maintain clear beam transmission.
• Conduct alignment checks after moving the machine or after extensive use.

Properly aligning the optical path ensures precise and consistent cutting, extending the life of your machine and improving overall productivity.

How Often Do I Need To Replace The Lens and Mirrors?

The lenses and mirrors in a fabric laser cutter play a crucial role in focusing and directing the laser beam. Over time, these components can become dirty, scratched, or damaged, affecting the quality of your cuts and the overall efficiency of the machine.

While lenses and mirrors are designed to last for a significant period, regular maintenance and timely replacement are essential to ensure the laser cutter performs at its best.

Signs That Your Lens or Mirrors Need Replacing

1. Decreased Cutting Power: If you notice that the machine is no longer cutting through materials as efficiently, even with proper settings, it may be due to a damaged lens or mirror. Over time, the reflective surface can wear down or accumulate residue, reducing the laser’s effectiveness.

2. Visible Scratches or Damage: If you see visible scratches, chips, or cracks on the surface of the lens or mirrors, they should be replaced immediately. These imperfections can cause the laser to scatter or produce uneven cuts.

3. Inconsistent Beam: When the beam appears misaligned or inconsistent in intensity, it may be due to a misaligned or dirty lens or mirror. This can lead to uneven cutting or engraving, negatively impacting the final product quality.

4. Frequent Cleaning Requirements: If the lens or mirrors require cleaning more often than usual due to heavy residue buildup, it could be a sign that they are worn out or damaged and need replacement.

How Often Should You Replace Lenses and Mirrors?

The frequency of replacement depends on various factors, such as the type of material being cut, the machine’s usage, and the overall maintenance routine. However, as a general guideline:

• Lens Replacement: Typically, lenses should be replaced every 1,500 to 2,000 hours of cutting, depending on usage. For heavy or high-volume operations, lenses may need replacement more frequently.

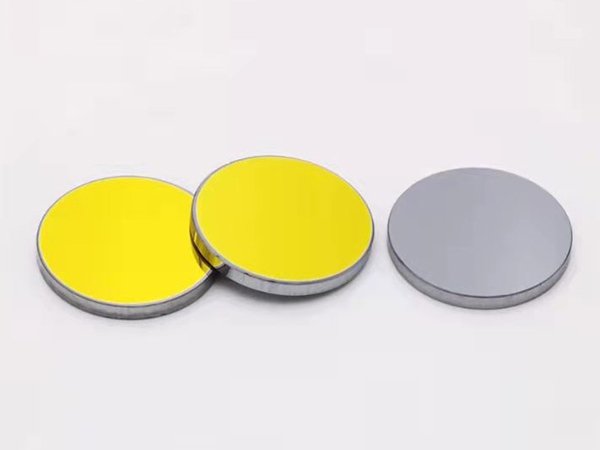

• Mirror Replacement: Mirrors generally last longer than lenses, but they should still be checked regularly for damage. On average, mirrors should be replaced every 2,000 to 3,000 hours of operation.

If you’re using the laser cutter daily or for high-intensity tasks, it’s important to monitor the condition of the lens and mirrors more closely and replace them as soon as you notice signs of wear.

Tips for Prolonging the Life of Lenses and Mirrors

1. Regular Cleaning: Clean the lens and mirrors frequently to remove dirt, smoke residue, and other debris that can build up during cutting. Use proper cleaning solutions and tools to avoid damaging the surfaces.
2. Proper Handling: Always handle lenses and mirrors with care. Avoid touching the reflective surfaces with your fingers, as oils and dirt can cause damage over time.
3. Use Correct Materials: Cutting materials that produce excessive smoke or residue, like certain plastics, can cause more rapid wear on the lens and mirrors. Try to optimize your cutting process to minimize residue buildup.

Why Are Laser Tubes In Fabric Laser Cutting Machines Consumables?

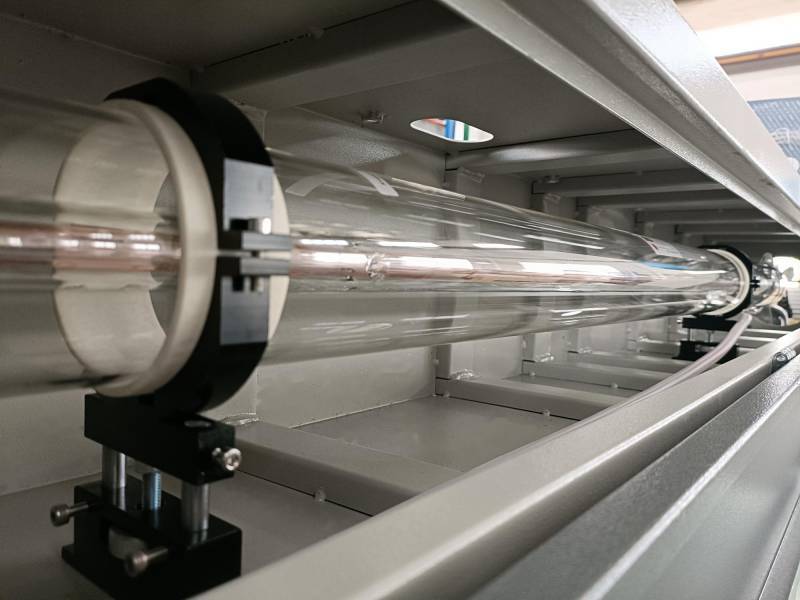

In fabric laser cutting machines, CO2 laser tubes are a critical component, responsible for generating the laser beam that cuts materials. However, they are classified as consumables because they have a limited lifespan and need periodic replacement.

CO2 laser tubes in fabric cutting machines are typically made of glass or metal. While both options have their advantages and disadvantages, most machines use glass laser tubes for their exceptional cost-effectiveness, especially for fabric cutting applications.

Glass Laser Tubes Vs. Metal Laser Tubes

Here’s a quick comparison of the two types:

Why Chinese Glass Laser Tubes Are Ideal For Fabric Cutting

Chinese-manufactured glass CO2 laser tubes have become the go-to choice for fabric cutting machines due to their balance of performance and affordability. They deliver high power levels (e.g., 100–180W) that are ideal for cutting fabrics like cotton, polyester, and leather.

1. High Cost-Effectiveness: Glass laser tubes are much cheaper to replace than metal tubes, making them ideal for cost-sensitive operations. For a few hundred dollars, you can get a replacement that ensures continued operation.

2. Long Service Life For Fabric Applications: A 100–130W glass laser tube, typically under warranty for 10 months, often lasts much longer. For example, with 10 hours of daily use, many customers report using the same tube for over two years before replacement is needed.

3. Low Replacement Cost: Replacing a laser tube costs just a few hundred dollars. For fabric cutting businesses, this cost is negligible compared to the revenue generated over the tube’s lifespan.

Example: Cost Analysis Of A Glass Laser Tube

Consider a 130W glass CO2 laser tube:

• Price: Approximately $400–$500.
• Warranty: 10 months free replacement.
• Expected Lifespan: 2 years (with 10 hours/day use).
• Cost Per Day: Less than $0.80 when averaged over two years.

This negligible cost makes glass CO2 laser tubes an incredibly economical solution for fabric cutting machines.

Why Should You Never Leave The Fabric Laser Cutter Unattended?

Laser cutting machines, especially fabric laser cutters, are powerful tools that require constant attention during operation to ensure safety, quality, and efficiency. Although these machines are equipped with advanced features like automatic feeding, counting, and even some level of automation, they still need human supervision.

Leaving a fabric laser cutter unattended can lead to several risks, including potential safety hazards, errors in cutting, and equipment malfunction. Even with automation, human oversight is essential to ensure smooth operation and proper handling of materials.

The Need for Supervision in Fabric Laser Cutting

1. Material Handling: Despite advancements in automated material feeding, fabric cutting often involves handling delicate or irregularly shaped materials that require human intervention. A worker is needed to sort, organize, and ensure the fabric is aligned correctly before cutting. While automated feeding systems are available, they are not yet perfect for all types of fabrics.

2. Quality Control: Automated systems may struggle with detecting imperfections in the fabric or cutting inconsistencies. A human operator can inspect the fabric and the cut pieces to ensure they meet quality standards. Without supervision, the machine could cut incorrectly, leading to defective products that are costly to rework.

3. Machine Malfunctions: Even the most advanced machines can experience issues such as jamming, misalignment, or unexpected power surges. An unattended laser cutter could continue running in these circumstances, potentially damaging both the material and the machine itself. An operator can quickly identify and address problems before they escalate.

4. Fire Risk and Safety Hazards: Laser cutters generate intense heat, which could potentially lead to fires if the machine malfunctions or if certain materials are cut improperly. A worker can monitor the process to ensure that smoke, sparks, or overheating don’t pose a danger.

5. Multitasking Efficiency: In some settings, operators are tasked with overseeing multiple laser cutters at once. Though these machines have automatic feeding and counting features, a human supervisor is still needed to check that everything is functioning correctly across all machines, ensuring that production continues smoothly.

The Role of Automation in Reducing Supervision Needs

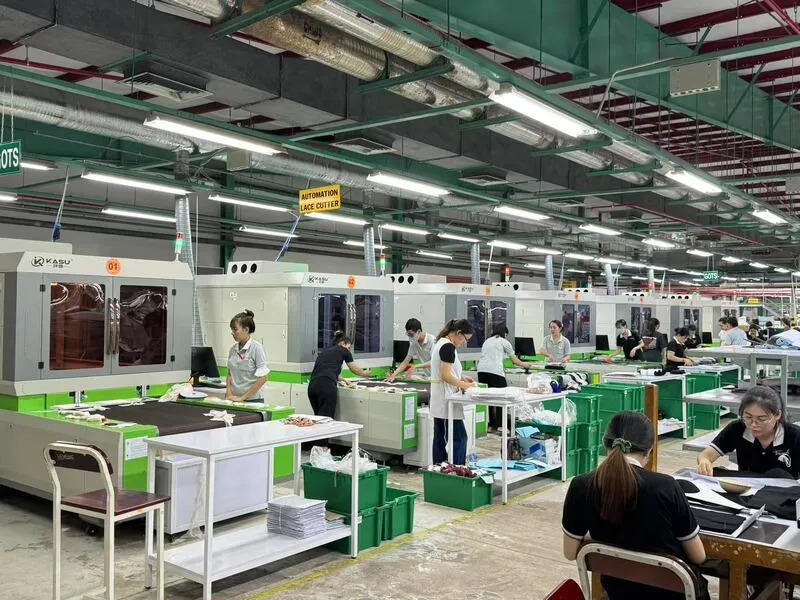

For many fabric laser cutting machines, automation features such as automatic feeding, counting, and material unloading are included to make the process more efficient. Some advanced models can automatically handle similar pieces, allowing a single operator to oversee multiple machines at once. However, these features still require occasional intervention to ensure accuracy and avoid errors in the cutting process.

Conclusion

Maintaining a fabric laser cutter is essential for long-term productivity and consistent results. By understanding material compatibility, optimizing settings, and implementing a rigorous cleaning schedule, you can maximize your machine’s efficiency and lifespan. Regular inspections, safety precautions, and proactive maintenance ensure you get the best return on your investment.
