Can You Laser Cut Plywood?

Laser cutting has revolutionized how we approach woodworking, but can you really laser cut plywood? Many woodworkers hesitate due to safety concerns and questions about efficiency. Let’s dive into this versatile material and understand how laser cutting applies to it.

Yes, you can laser cut plywood, but the process depends on factors like plywood type, thickness, and laser machine power. Proper preparation and safety measures are essential.

Laser cutting plywood opens creative possibilities for crafting, prototyping, and professional projects. But it’s important to know the specifics to achieve the best results.

Is Plywood Safe To Laser Cut?

Laser cutting plywood is a common practice in woodworking and design, but many people wonder about its safety due to the materials used in its construction.

Yes, laser cutting all types of plywood is generally safe. However, the process can produce smoke, fumes, and odors that must be properly managed to ensure safety.

When plywood is laser cut, the heat from the laser causes the material to vaporize, and this process releases smoke and fumes. These fumes are a result of the adhesives and resins used to bond the layers of plywood, and they can sometimes contain harmful compounds, especially in cheaper or lower-quality plywood.

To ensure safe operation, it’s essential to have a good air filtration system in place. Here’s how you can manage safety during the laser cutting process:

• Use Air Filtration Systems: Invest in a high-quality fume extractor or air purifier to remove the smoke and fumes produced during cutting. This will help reduce exposure to harmful chemicals and maintain air quality.

• Ensure Proper Ventilation: Make sure your workspace is well-ventilated. Use exhaust fans or open windows to ensure fresh air circulates and smoke is vented outside.

• Opt for Laser-Grade Plywood: For the safest and cleanest results, choose plywood that is labeled as laser-grade. These types of plywood use non-toxic adhesives, which release fewer harmful chemicals when cut.

• Monitor the Process: Always keep an eye on the cutting process to ensure the laser is functioning correctly and there’s no excessive burning, which could increase harmful emissions.

By taking these precautions, laser cutting plywood can be a safe and effective method for creating intricate designs and high-quality wood pieces.

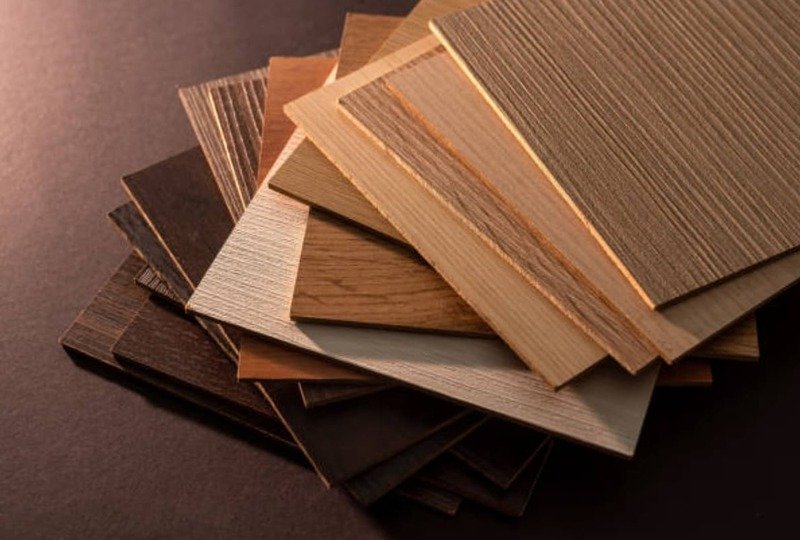

What Type Of Plywood Is Best For Laser Cutting?

The type of plywood you choose greatly impacts the outcome of your laser cutting project.

Laser-grade plywood is the best option due to its uniform construction, minimal voids, and safe adhesives. Baltic Birch and MDF-core plywood are also suitable for many projects.

Laser-grade plywood ensures a consistent cutting experience, while other types may have irregularities like knots or voids that hinder precision.

Comparing Popular Plywood Types

Choosing The Right Thickness

For intricate designs, thinner plywood (3mm-6mm) works best. For structural projects, thicker options like 9mm may be suitable but require higher laser power.

How Thick Plywood Can You Laser Cut?

The maximum thickness of plywood you can laser cut depends on the power of your laser cutter and the type of plywood being used. Different laser machines and materials produce varying results.

A standard CO2 laser cutter with 60-100W power can cut plywood up to 6mm thick in a single pass. Higher-powered industrial lasers can handle plywood up to 20mm thick, but this requires multiple passes and precise settings.

Factors That Influence Cutting Thickness

1. Laser Power:
   The wattage of your laser directly impacts its cutting capacity. A 60W laser can handle thin plywood (3-6mm), while a 100W or higher laser can cut thicker sheets (9-15mm). Industrial lasers with 150W or more can manage plywood up to 20mm.

2. Type of Plywood:
   The density and adhesive content of the plywood also matter. Laser-grade plywood with fewer voids and uniform composition cuts more efficiently than standard plywood. Thicker sheets with many layers of dense hardwood may require more powerful lasers or multiple passes.

3. Machine Settings:
   Proper adjustments to power, speed, and focus are crucial. Lower speeds and higher power levels typically work better for thicker materials, but improper settings can cause charring or incomplete cuts.

Tips for Cutting Thick Plywood

• Use Multiple Passes: For plywood thicker than 6mm, consider multiple cutting passes. This prevents overheating and reduces the chance of excessive burn marks.
• Optimize Focus: Adjust the laser focus point slightly deeper for each pass to ensure clean cuts all the way through.
• Ensure Proper Ventilation: Thicker plywood produces more smoke and fumes. Use a strong ventilation system or fume extractor to maintain air quality and visibility.
• Test Before Final Cutting: Always test on a scrap piece of plywood to fine-tune your settings for clean and precise cuts.

Typical Cutting Capabilities by Laser Power

By understanding these factors and carefully preparing your settings, you can achieve excellent results when laser cutting plywood, regardless of its thickness.

What Size Laser Do I Need To Cut Plywood?

The size of the laser cutter you need for cutting plywood depends on the thickness of the material and the dimensions of your projects. Both the cutting bed size and the machine’s capabilities should match your specific requirements.

For small plywood sheets or intricate designs, a compact laser cutter with a smaller cutting bed is sufficient. For larger sheets or industrial projects, a machine with a bigger bed size and advanced features is recommended.

Choosing the Right Cutting Bed Size

1. Small Cutting Beds:

   • Ideal for personal projects, crafts, or small-scale production.
   • Typically accommodate material sizes up to 12"x20", which is perfect for working with thin plywood or detailed designs.

2. Medium Cutting Beds:

   • Suitable for larger pieces of plywood or multiple smaller designs in one run.
   • Bed sizes around 24"x36" allow you to handle medium-sized projects, such as signage or furniture components.

3. Large Cutting Beds:

   • Best for industrial applications and oversized plywood sheets.
   • Bed sizes 36"x48" or larger are ideal for large-scale production or cutting full plywood sheets without needing to trim the material.

Matching the Machine Size to Your Project Needs

Final Recommendations

If you primarily work on small, intricate projects or have limited workspace, a compact laser cutter with a smaller cutting bed will meet your needs. For larger-scale woodworking or industrial applications, choose a machine with a larger cutting bed to handle bigger plywood sheets efficiently and reduce preparation time.

How Fast Can a Laser Cut Plywood?

The speed of laser cutting plywood varies depending on the laser machine’s power and the thickness of the material. Home laser cutters, typically equipped with 45W glass laser tubes, offer different cutting speeds compared to industrial machines with 130W glass laser tubes. Understanding the capabilities of each can help you plan projects more efficiently.

A 45W home laser cutter¹ is ideal for thinner plywood, cutting 3mm plywood at around 10 mm/s, while a 150W industrial laser² can handle same 3mm plywood at speeds of 80-100 mm/s with much greater efficiency.

Cutting Speeds for Different Laser Machines

1. Home Laser Cutter with a 45W Glass Laser Tube

45W home lasers are best for thin plywood (3mm-6mm). They struggle with thicker materials due to limited power and slower cutting speeds.

2. Industrial Laser Cutter with a 150W Glass Laser Tube

150W industrial lasers are designed for heavy-duty applications and thicker plywood. They offer faster speeds and higher precision, even for challenging materials.

Factors Influencing Cutting Speeds

1. Material Thickness:
   Thinner plywood allows for higher cutting speeds, while thicker materials require slower speeds to achieve clean edges and full cuts.

2. Machine Capability:
   Home lasers prioritize precision and ease of use for small projects, but their lower power limits their speed on thicker materials. Industrial lasers are optimized for speed and power, making them more efficient for professional applications.

3. Material Quality:
   Laser-grade plywood with fewer voids and uniform layers supports faster cutting compared to standard plywood, which may slow the process due to inconsistencies.

4. Settings and Tools:

   • Power and Speed Balance: Adjust settings to achieve clean cuts without excessive charring.
   • Air Assist: Clears debris and cools the material, enabling faster cutting speeds.
   • Focus Adjustment: A properly focused laser beam ensures efficiency and accuracy.

Recommendations for Plywood Cutting

• For Home Projects: Use a 45W laser cutter for thinner plywood (3mm-6mm). Avoid thicker materials to prevent incomplete cuts or excessive burning.

• For Industrial Applications: Opt for a 130W laser cutter to handle a wider range of thicknesses, from thin plywood up to 12mm or more, with better speed and precision.

What Are The Best Laser Cutters For Woodworking?

Selecting the best laser cutter for woodworking depends on your specific needs, whether for home use or industrial-scale production. These machines are powerful tools for cutting, engraving, and shaping wood, offering precision and versatility. Let’s explore the key differences and considerations for home and industrial laser cutters.

For woodworking, home laser cutters are ideal for small projects and intricate designs, while industrial laser cutters are suited for large-scale operations requiring higher power and efficiency.

Home Laser Cutters for Woodworking

Home laser cutters are compact, user-friendly, and designed for smaller projects or hobbyist applications. They are an excellent choice for engraving and cutting thinner wood materials like plywood or softwoods.

Features of Home Laser Cutters

1. Compact Size:
   Home laser cutters typically have a smaller footprint, making them ideal for limited spaces like a garage or workshop.

2. Lower Power:
   These machines usually have lower wattage (e.g., 40W-60W), suitable for engraving and cutting wood up to 6mm thick.

3. Ease of Use:
   Most home laser cutters come with intuitive software, pre-set material profiles, and simple setup instructions, making them beginner-friendly.

4. Affordability:
   Home models are budget-friendly and require less maintenance, making them accessible for hobbyists and small-scale users.

Ideal Use Cases for Home Laser Cutters

• Crafting personalized items such as wooden plaques or jewelry.
• Creating intricate designs on thin plywood, MDF, or softwoods.
• Small-scale production for Etsy shops or local businesses.

Industrial Laser Cutters for Woodworking

Industrial laser cutters are built for high-volume production and heavy-duty applications. These machines can handle thicker materials, operate for extended periods, and deliver precise results on a large scale.

Features of Industrial Laser Cutters

1. High Power:
   Industrial machines often feature higher wattage (e.g., 100W-500W), allowing them to cut through thick hardwoods and multi-layered plywood up to 20mm.

2. Large Bed Sizes:
   They offer extensive cutting areas, making them suitable for furniture production, large panels, and architectural models.

3. Advanced Features:
   Industrial models include features like automatic focusing, dual laser heads for faster production, and integrated air assist to improve cutting quality.

4. Durability and Reliability:
   Designed for 24/7 operation, these machines have robust components and enhanced cooling systems to handle continuous workloads.

Ideal Use Cases for Industrial Laser Cutters

• Manufacturing furniture, cabinetry, or decorative wood panels.
• Creating structural components for construction or architectural designs.
• Large-scale production for commercial woodworking businesses.

Key Differences Between Home and Industrial Laser Cutters

Investing in the right laser cutter ensures you have the tools to create high-quality woodworking projects efficiently, no matter the scale of your operations.

How To Laser Cut Plywood?

Laser cutting plywood is a precise and efficient way to create intricate designs, structural components, or decorative items. The process can vary depending on whether you’re using a home laser cutter or an industrial-grade machine. By understanding the equipment and best practices, you can achieve professional-quality results.

Laser cutting plywood involves selecting the right machine, preparing the material, and optimizing settings for clean cuts. The process differs for home and industrial users, primarily in terms of scale and equipment features.

How to Laser Cut Plywood at Home

Home laser cutters are designed for smaller projects and thinner plywood. These machines are easy to use, making them ideal for hobbyists and small-scale production.

Steps for Home Laser Cutting

1. Choose the Right Plywood:
   Select laser-friendly plywood, ideally between 3mm-6mm thick, to ensure smooth cutting. Look for plywood labeled as laser-grade or low-adhesive.

2. Prepare the Design:
   Use design software like Adobe Illustrator, Inkscape, or LightBurn to create your project. Ensure the design is scaled correctly for your machine’s cutting bed.

3. Set Up the Laser Cutter:

   • Place the plywood flat on the cutting bed to prevent warping.
   • Adjust the laser’s focus to the material’s surface.
   • Use masking tape on the plywood surface to reduce burn marks.

4. Test Settings:
   Perform a test cut on a scrap piece of plywood. Start with recommended settings for power, speed, and frequency based on your material’s thickness. Adjust as needed to achieve clean cuts without excessive charring.

5. Cut the Plywood:
   Run the laser cutter, monitoring the process to ensure everything runs smoothly. Use air assist if available to blow away debris and reduce scorching.

6. Clean the Edges:
   After cutting, remove any char or residue with fine sandpaper or a damp cloth.

Home Laser Cutting Tips

• Work in a Ventilated Area: Use a fume extractor or ensure good airflow to manage smoke and odors.
• Avoid Thick Plywood: Stick to thinner materials (under 6mm) for best results with lower-power machines.
• Inspect the Material: Ensure there are no voids or knots in the plywood that could disrupt the cut.

How to Laser Cut Plywood for Industrial Applications

Industrial laser cutters are designed for high-power, high-volume applications. These machines handle thicker plywood and larger projects with ease.

Steps for Industrial Laser Cutting

1. Select Suitable Plywood:
   For industrial cutting, you can work with thicker plywood (up to 20mm). Choose high-quality, laser-grade plywood to ensure consistent results and reduce smoke production.

2. Optimize Machine Settings:
   Industrial machines allow more precise adjustments for power, speed, and focus. Use the following guidelines based on plywood thickness:

   • Thin Plywood (3mm-6mm): Moderate power and high speed for clean cuts.
   • Thick Plywood (9mm-20mm): Higher power, slower speed, and multiple passes if necessary.

3. Prepare the Workspace:

   • Clean the cutting bed to prevent residue buildup.
   • Ensure proper alignment of the plywood to avoid miscuts.
   • Use air assist or an integrated dust extraction system to maintain visibility and reduce charring.

4. Run the Laser Cutter:
   Start the cutting process, monitoring for any inconsistencies. Industrial machines often include advanced features like autofocus and real-time monitoring for precision.

5. Post-Cut Finishing:
   After cutting, inspect the edges for burn marks. Use sanding tools or polishing equipment for a professional finish.

Industrial Laser Cutting Tips

• Fume Management: Use industrial-grade fume extractors to handle the larger volume of smoke produced during heavy-duty cutting.
• Batch Processing: Take advantage of larger bed sizes and higher power to cut multiple sheets or large designs in one session.
• Regular Maintenance: Keep the machine’s lenses and mirrors clean to maintain cutting efficiency.

Key Differences Between Home and Industrial Laser Cutting

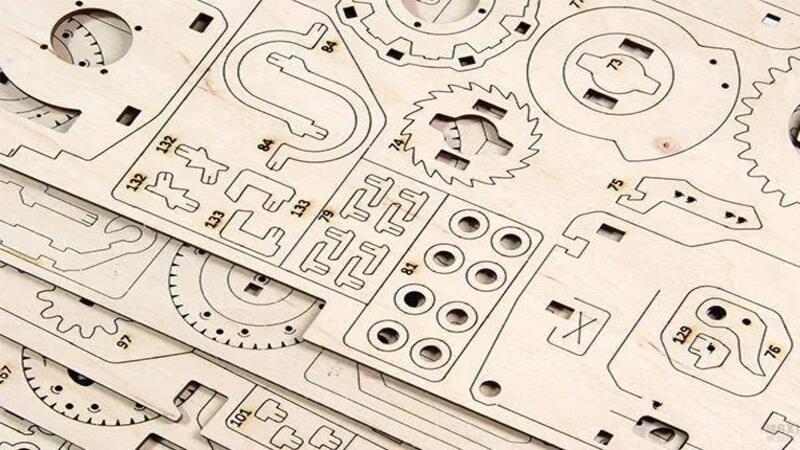

How Do You Flatten Plywood For Laser Cutting?

Warped plywood can ruin precision cuts, so ensuring a flat surface is crucial.

Flatten warped plywood by lightly misting the concave side and applying even pressure with weights. Let it sit overnight.

Alternative Flattening Methods

• Clamp Method: Use clamps along the edges of the plywood.
• Steam and Weight: Steam the warped area and apply weights until it cools.

How Do You Clean Plywood After Laser Cutting?

Clean plywood ensures better aesthetics and usability post-cutting.

To clean plywood after laser cutting, use a microfiber cloth to remove residue, followed by light sanding for a polished finish.

Cleaning Tools And Materials

Conclusion

Laser cutting plywood is not just feasible but highly rewarding with the right approach. From selecting the right material to mastering the process, understanding these details can help you achieve precision and creativity in your woodworking projects.
